VENTILATED GLASS
SFVG Self Flashing Ventilated Glass Skylights
Kennedy ventilating skylights exhibit high quality and top performance in an affordable glass skylight. The skylight opens up to 8" either manually or with either an electric or solar controller.

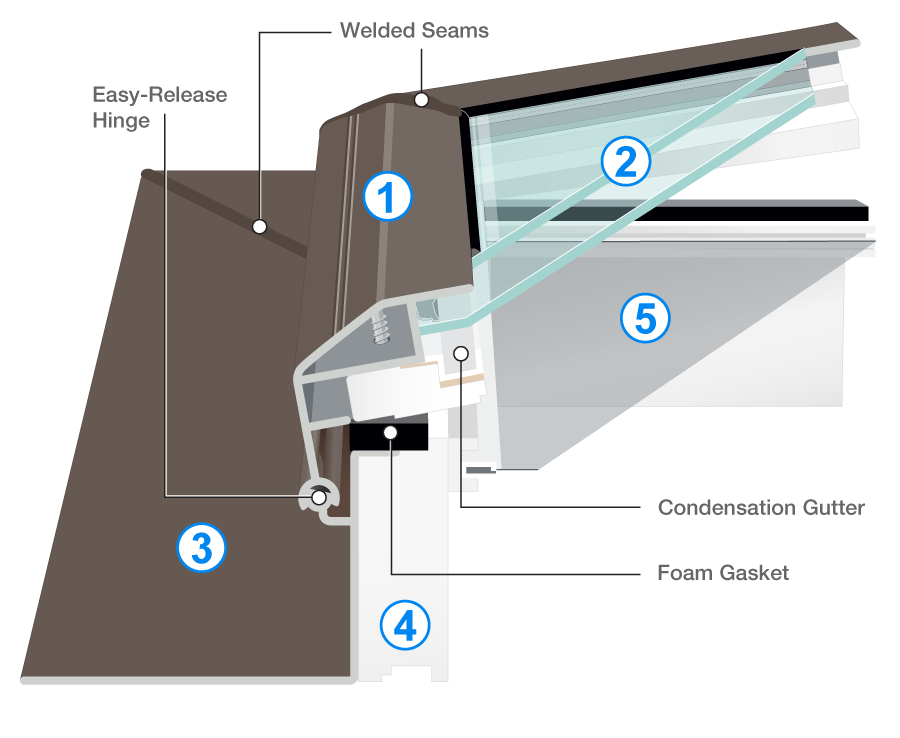

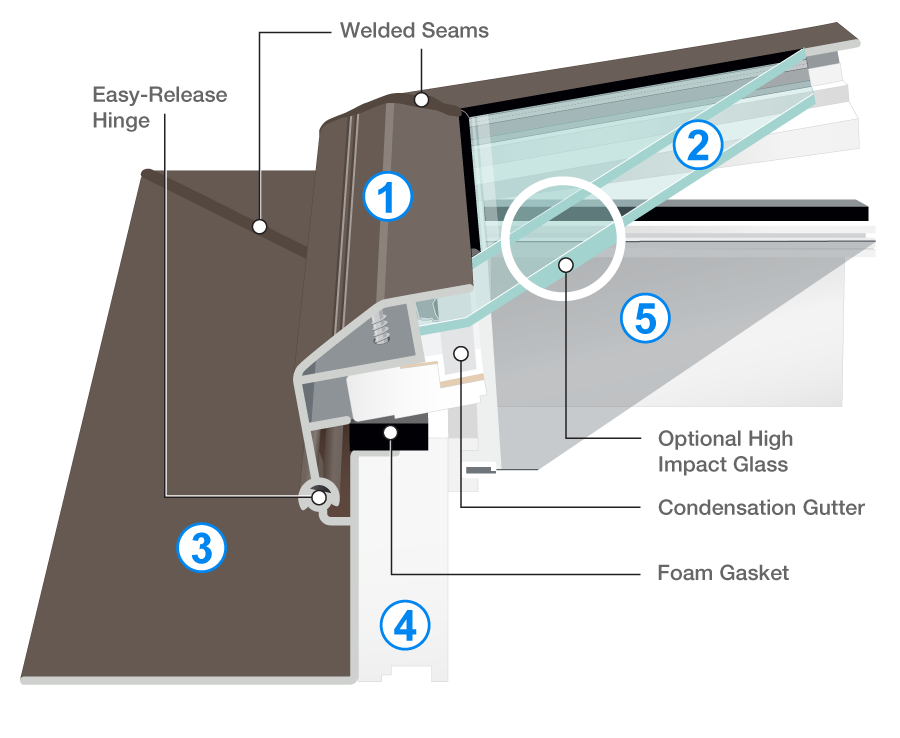

Sash
Corrosion-proof .062" extruded aluminum with welded corners to guarantee a leakproof seal. Top side of sash has an easy-release continuous hinge for quick sash replacement. Powder coated for extra durability.
Glass
Choice of tempered or high impact LoE-240 glass. Features a condensation gutter to channel moisture off of the glass.
Deck Mount Flashing
Extra wide flange with pre-drilled holes for easy installation. Powder coated for extra durability.
Interior
Pre-finished white poplar wood interior. Thick foam gasket around the perimeter seals the sash to the curb to keep it water-tight.
Insect Screen
Removeable insect screen keeps bugs out. Skylight opens up to 8" either manually, or using an electric or solar-powered operator.
Proudly Made in America
Kennedy glass and polycarbonate skylights are manufactured in America.
Industry's Best Warranty
25-year on glass and 10-year on defects in material and deterioration.
Florida Building Code Approved
Kennedy skylights meet Florida's rigorous requirements of the Florida Building Code.

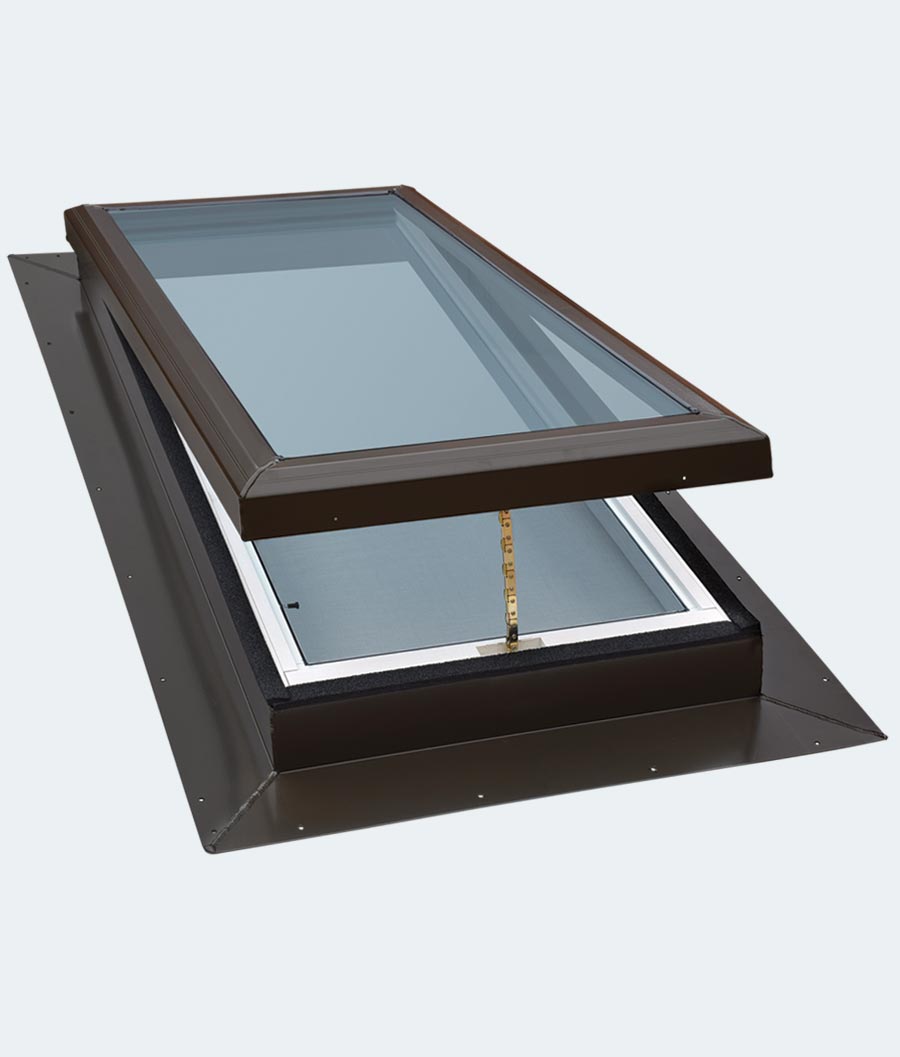

Self Flashing Ventilated Glass Skylight
with a 4" High Curb
Key Features
- High performance glass LoE-240 argon-filled glass
- Drywall return sized for both 1/2" and 5/8" drywall
- .062” extruded aluminum exterior with welded corners
- Integrated 4" flange with pre-drilled screw holes
- Opens up to 8" - insect screen included
- For roofs with a minimum 2:12 pitch
Glass Choices
- Tempered, LoE-240 argon-filled glass
- High impact, hurricane rated, LoE-240 argon-filled glass
Quality Materials & Opening Options
- Exterior is powder coated bronze for superior durability
- Pre-finished white poplar wood interior
- Includes a manual crank for opening the skylight
- Optional Telescopic Extension Pole available for skylights out of reach
Warranty & Certification
- 25-Year non-prorated limited warranty on insulated glass against seal failure
- 10-Year limited warranty against defects in workmanship and materials
- Meets the stringent requirements of the Florida Building Code
Skylight Sizes
All the model sizes are available with the choice 4" or 6" high curb. Minimum 2:12 roof pitch.
TSFVG TEMPERED GLASS SELF-FLASHING VENTILATED SKYLIGHT SIZES
 |
 |
 |
 |
 |
 |
|
| Model Number | 2222TSFVG | 2230TSFVG | 2246TSFVG | 3030TSFVG | 3046TSFVG | 4646TSFVG |
| Rough Opening | 22.5" x 22.5" | 22.5" x 30.5" | 22.5" x 46.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| Outside Flange | 31" x 31" | 31" x 39" | 31" x 55" | 39" x 39" | 39" x 55" | 55" x 55" |
ISFVG HIGH IMPACT GLASS SELF-FLASHING VENTILATED SKYLIGHT SIZES
|
|
|
|
|
|
|
| Model Number | 2222ISFVG | 2230ISFVG | 2246ISFVG | 3030ISFVG | 3046ISFVG | 4646ISFVG |
| Rough Opening | 22.5" x 22.5" | 22.5" x 30.5" | 22.5" x 46.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| Outside Flange | 31" x 31" | 31" x 39" | 31" x 55" | 39" x 39" | 39" x 55" | 55" x 55" |
