K Series  Flat Roof Tubular Skylights

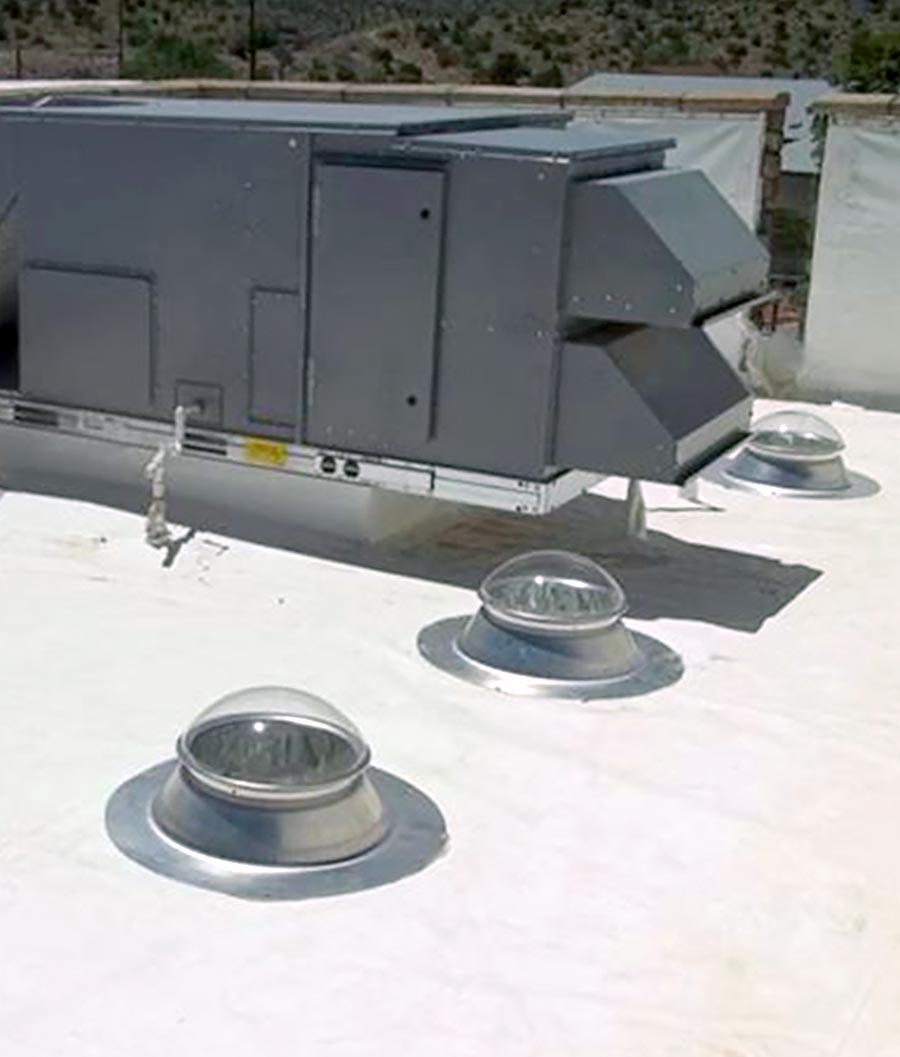

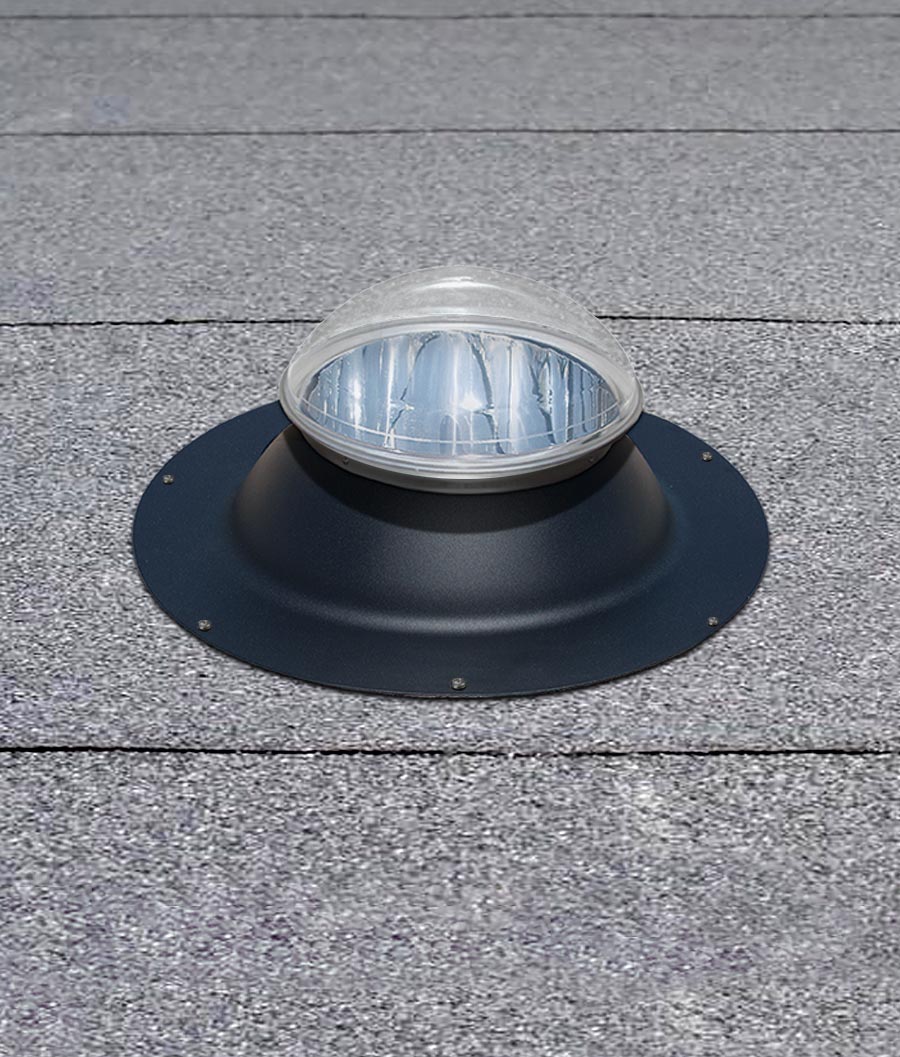

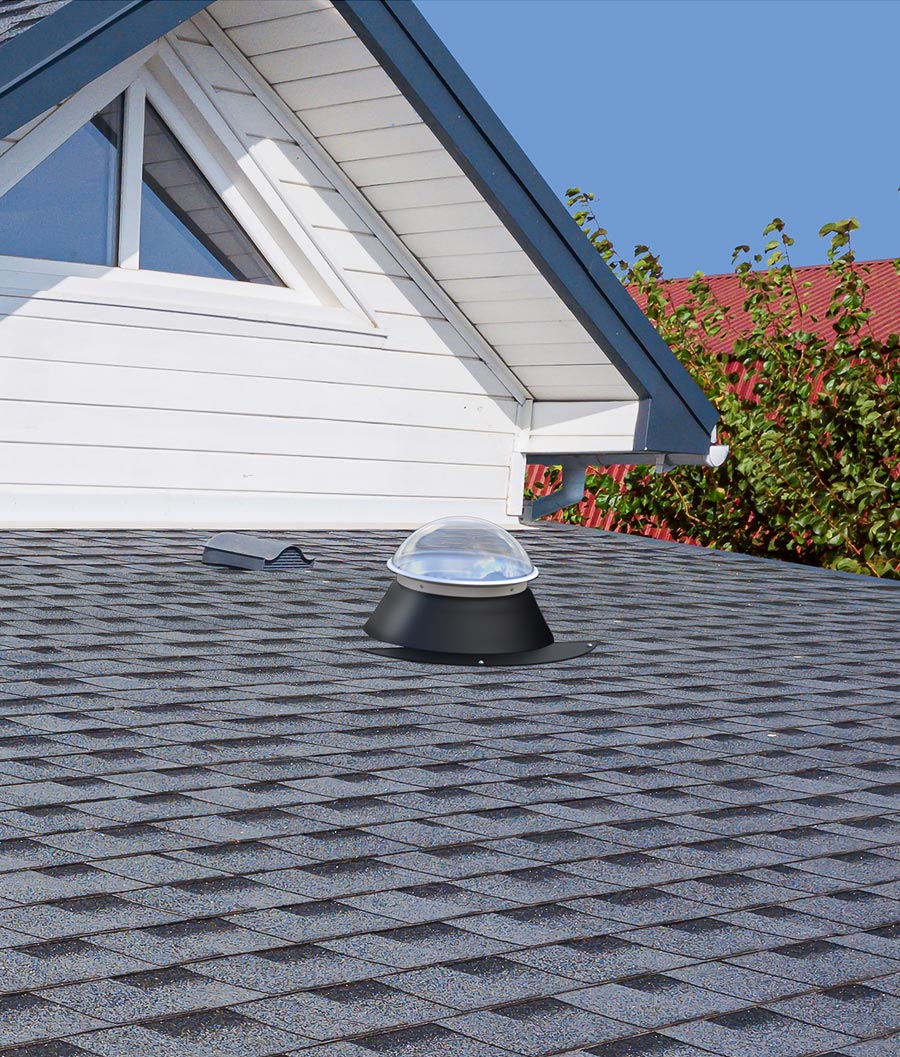

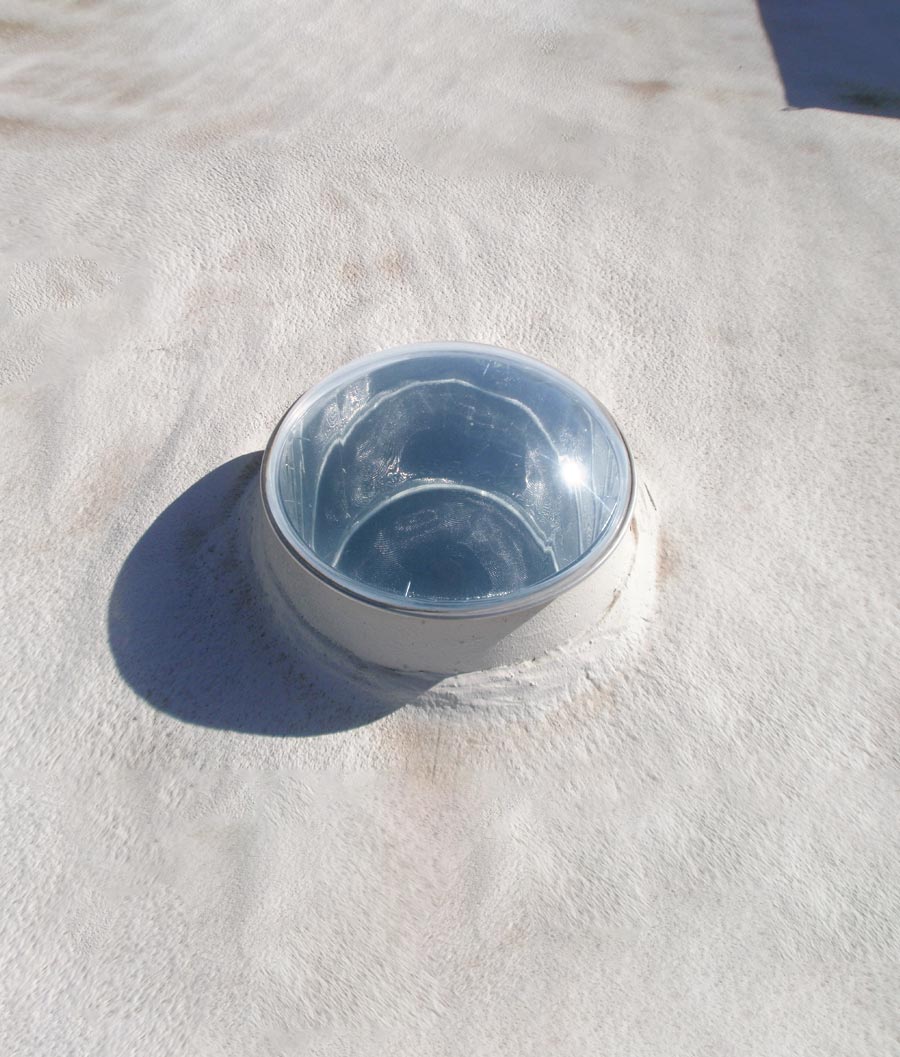

The Kennedy K Series flat roof tubular skylight installs on flat roof including modified bitumen, built-up, rubber membrane, vinyl and polyurethane foam. The flat roof unit is available in 4 kit sizes: 10", 13", 18" and 21".

made in usa logo
Proudly Made in America

Kennedy tubular skylights are manufactured in America.

limited lifetime warranty logo
Industry's Best Warranty

Limited lifetime against manufacturers defects in material and deterioration.

easy 1 hour installation logo
Hurricane Approved

Passed numerous tests including a large missile impact test to earn rating.

K Series Flat Roof Tubular Skylight
10" | 13" | 18" | 21" Models

Key Features

  • Designed for residential or commercial flat roofs up to 2:12 pitch
  • Roof types include modified bitumen, built-up, rubber membrane, vinyl and polyurethane foam

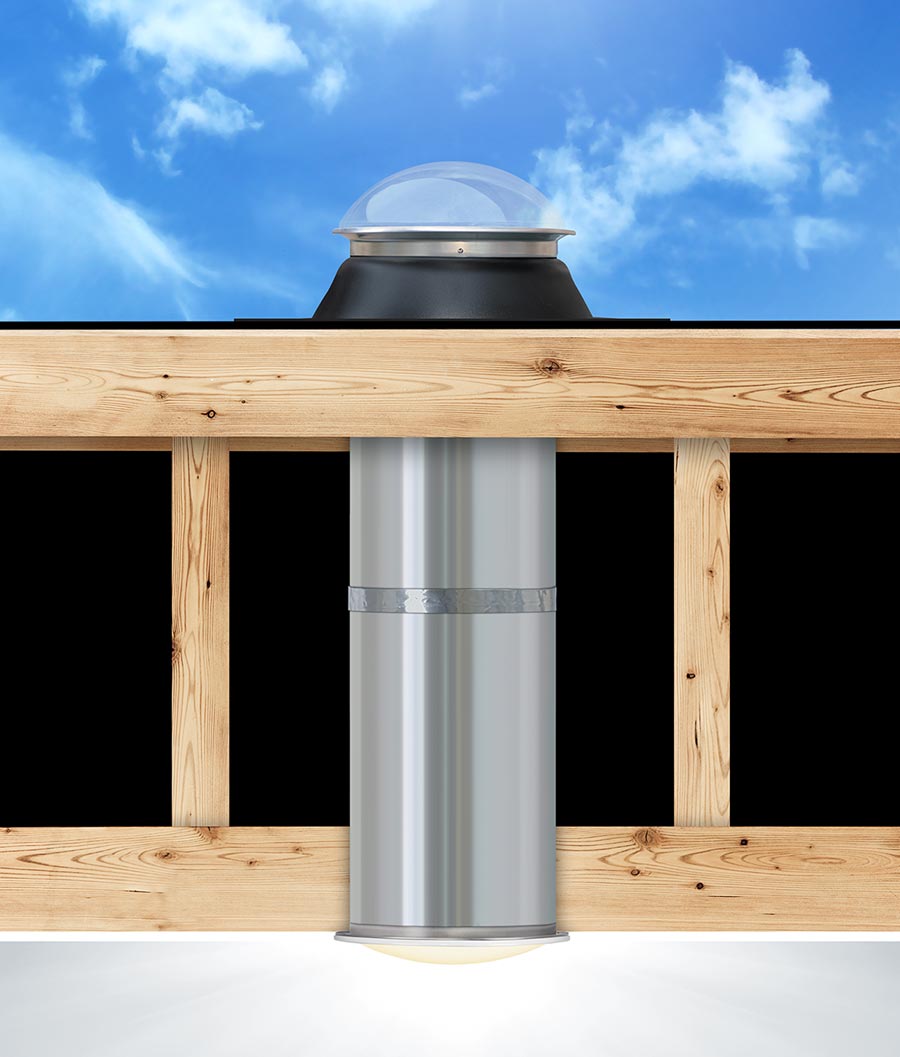

  • Installs easily with no structural changes or wiring required
  • Designed to perform optimally from sunup to sundown
  • Disperses light evenly while blocking 99% of harmful UV rays
  • Condensation release dome prevents fogging due to humidity
  • Available in 3 colors: powdercoated black or bronze or mill finish

Manufactured with the Highest Quality Components

  • High Impact Acrylic Dome - with stress collar to prevent dome from cracking under temperature fluctuations
  • Commercial Grade Aluminum Flashing - heavy-duty, seamless, and leak proof
  • Light Pipe - silver coated aluminum, 98% total reflectivity
  • Prismatic Domed Diffuser - disperses light evenly without spot lighting or glare
  • White Aluminum Ceiling Trim Ring - blends into any decor

Certifications and Warranty

  • Hurricane Tested and Approved
  • Florida Building Code Approved
  • Qualifies for 30% Federal Tax Credits (when paired with Solar LED Light Kit)
  • ICC-ES Listed with a Limited Lifetime Warranty

Accessories

  • Exhaust Vent Kit (10" model only) and Dimmer Kit with Remote
  • Solar LED and Electric Light Kits
  • Angle Adapters and Extra Light Pipe Sections
  • Turret Extension (10" and 13" only) and Tile Skirt
Kennedy K Series Flat Roof Tube Install Thumb

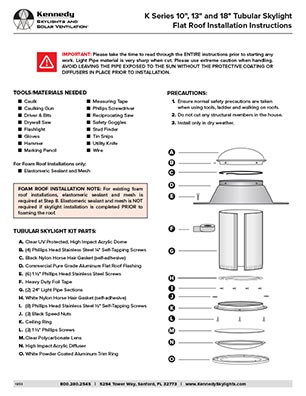

10", 13 & 18" Flat Roof Install
Download
Kennedy K Series 21 Flat Roof Tube Install Thumb

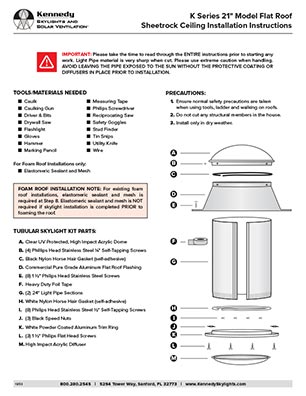

21" Flat Roof Install
Download

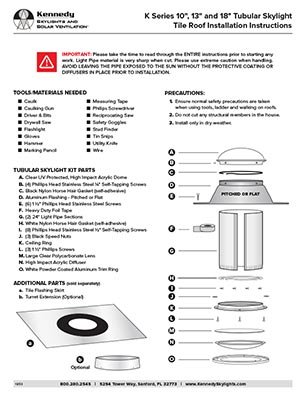

Kennedy Tile Roof Install Thumb
Tile Roof Install
Download

K Series Flat Roof Models

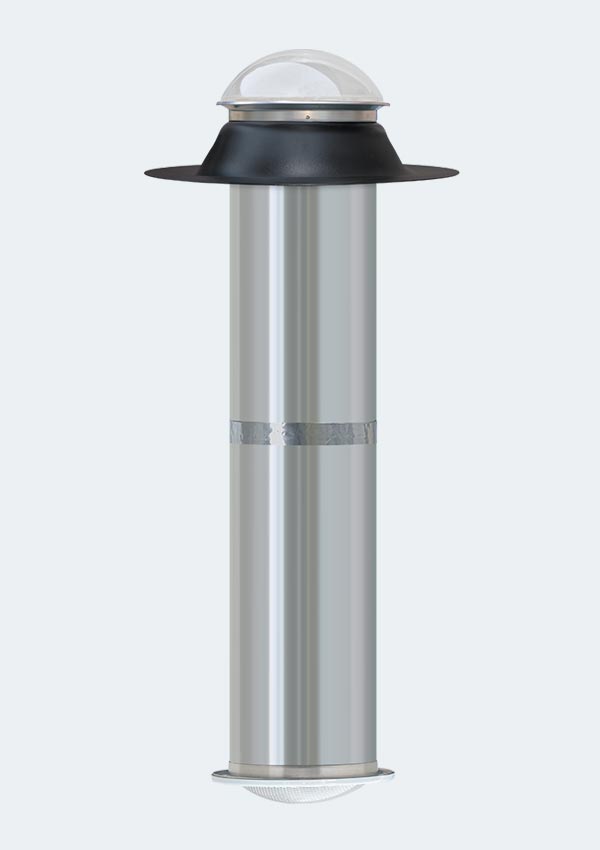

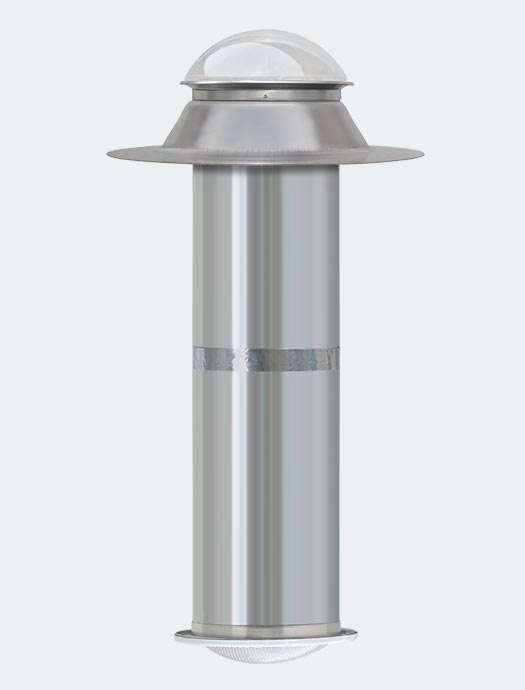

K series 10 inch flat tubular skylight model

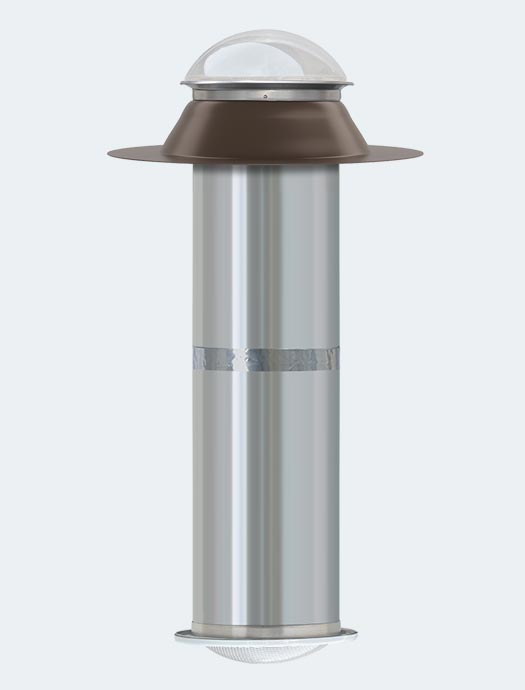

10" Kit

  • Coverage: up to 150 sf
  • Wattage: up to 300 watts
  • Tube Height: 4 feet
  • Max Tube Length: 18 feet
  • Roof Slope: 0:12 to 2:12
  • Model #: 10KFF
  • Flashing Colors: K series 13 inch pitch tubular skylight model
mill-finish color swatch

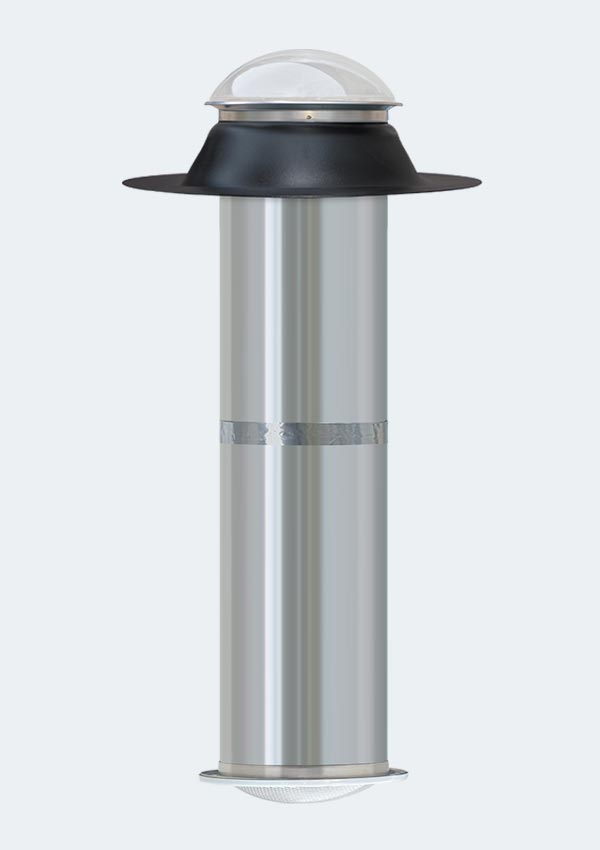

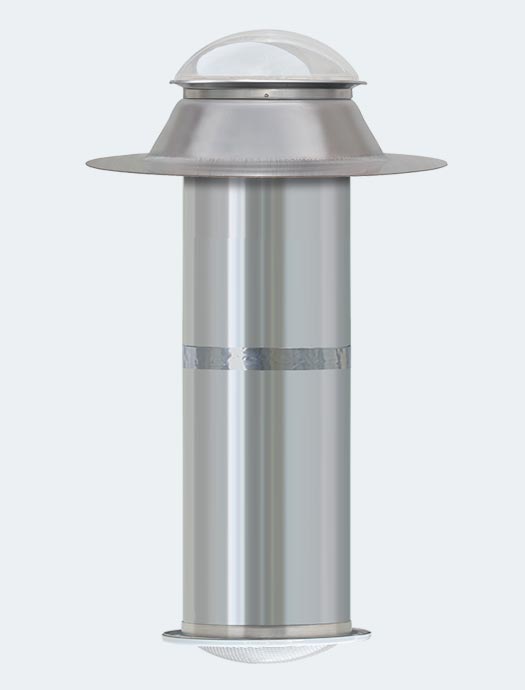

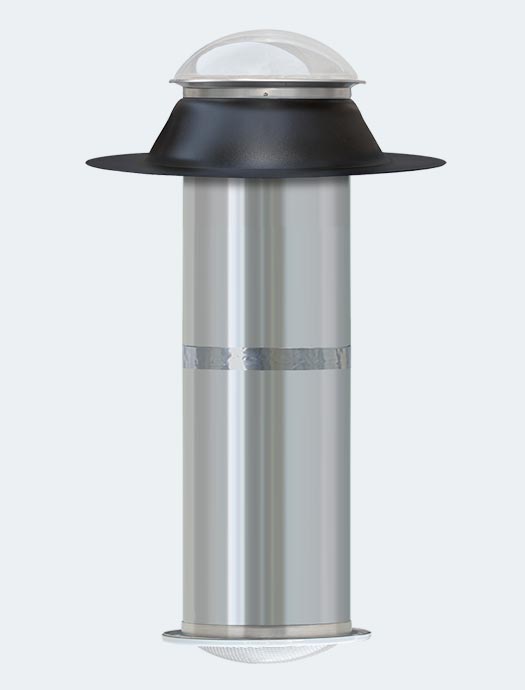

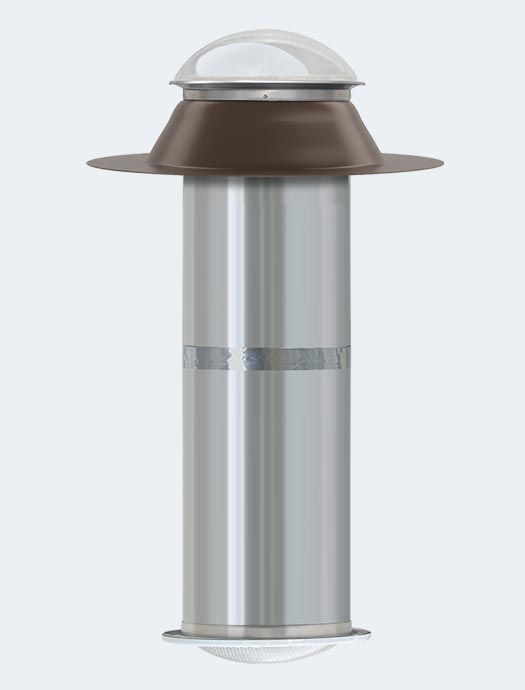

13" Kit

  • Coverage: up to 300 sf
  • Wattage: up to 500 watts
  • Tube Height: 4 feet
  • Max Tube Length: 20 feet
  • Roof Slope: 0:12 to 2:12
  • Model #: 13KFF
  • Flashing Colors: K series 13 inch pitch tubular skylight model
mill-finish color swatch

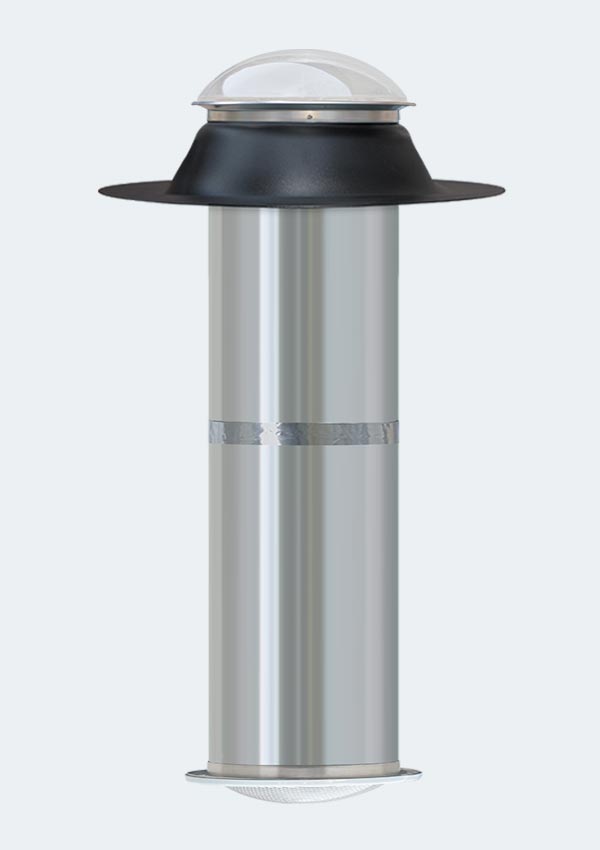

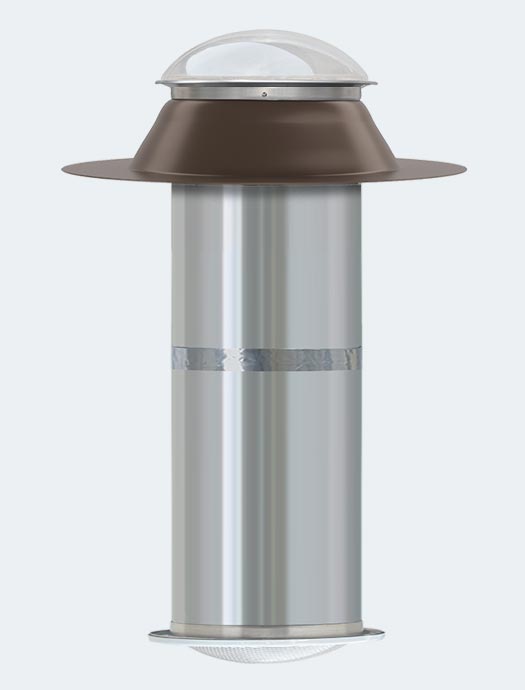

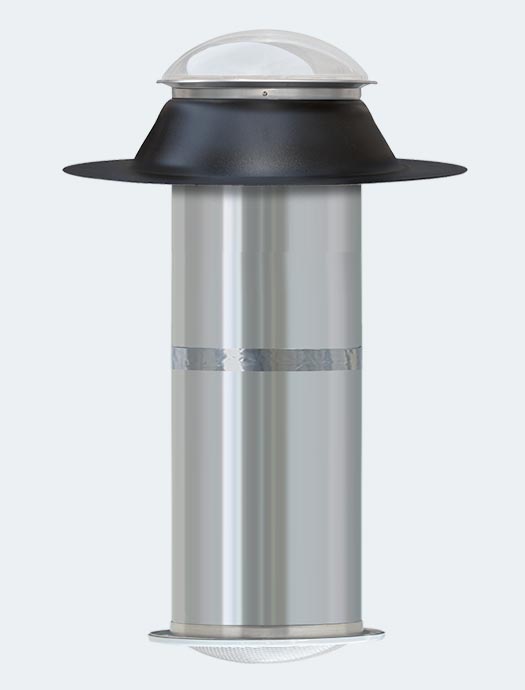

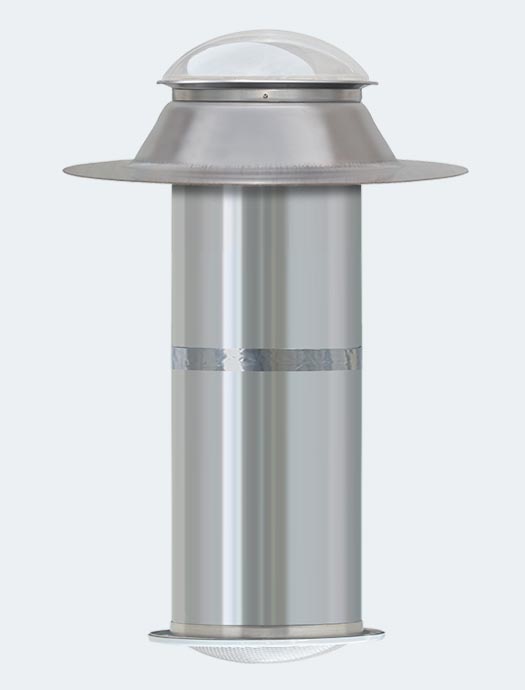

18" Kit

  • Coverage: up to 500 sf
  • Wattage: up to 1,000 watts
  • Tube Height: 4 feet
  • Max Tube Length: 20 feet
  • Roof Slope: 0:12 to 2:12
  • Model #: 18KFF
  • Flashing Colors: K series 13 inch pitch tubular skylight model
mill-finish color swatch

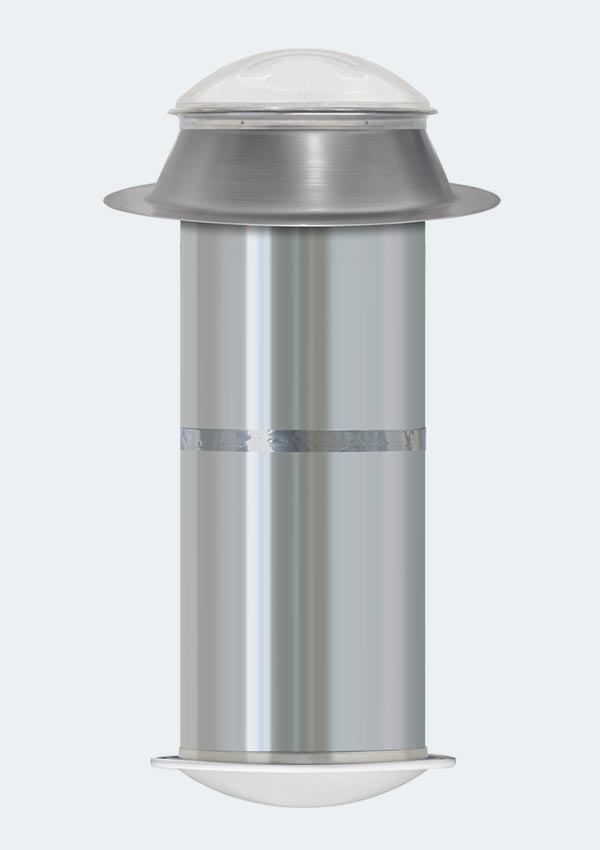

21" Kit

  • Coverage: up to 700 sf
  • Wattage: up to 1,450 watts
  • Tube Height: 4 feet
  • Max Tube Length: 20 feet
  • Roof Slope: 0:12 to 2:12
  • Model #: 21KFF
  • Flashing Color: mill-finish color swatch
