FIXED GLASS
SFG Self Flashing Fixed Glass Skylights
Our superior performing fixed glass skylights are available in several models, glazing options and 10 standard sizes. Miami-Dade Hurricane Approved model and Replacement sashes are also available.

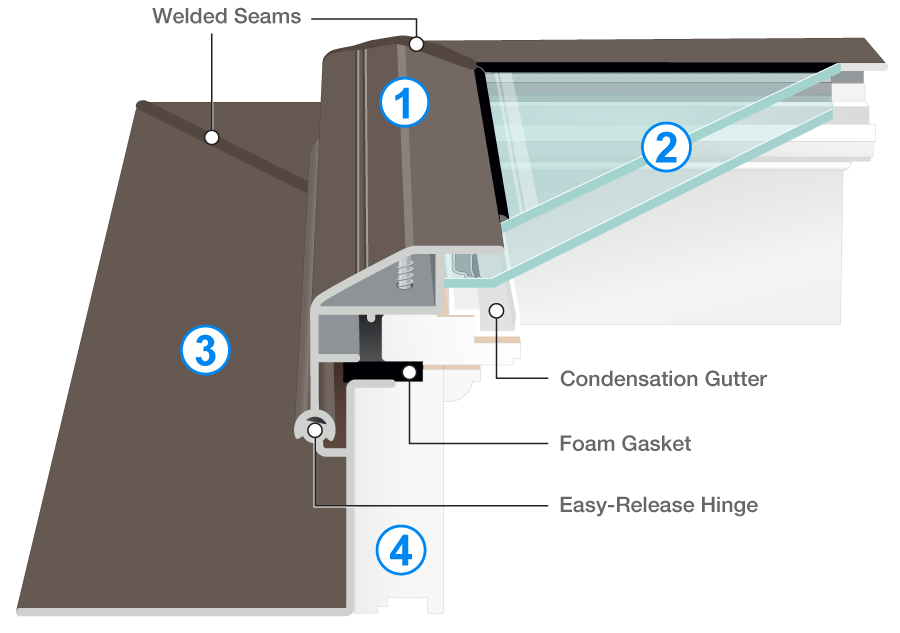

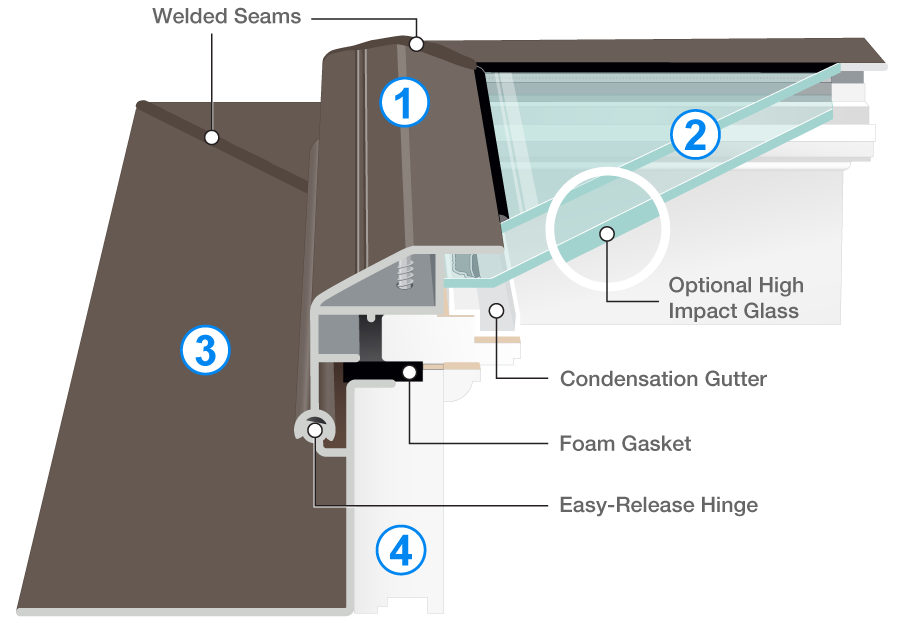

Sash
Corrosion-proof .062" extruded aluminum with welded corners to guarantee a leakproof seal. Top side of sash has an easy-release continuous hinge for quick sash replacement. Powder coated for extra durability.
Glass
Choice of tempered or high impact LoE-240 glass. Skylight features a condensation gutter to channel moisture off of the glass.
Deck Mount Flashing
Extra wide flange with pre-drilled holes for easy installation. Powder coated for extra durability.

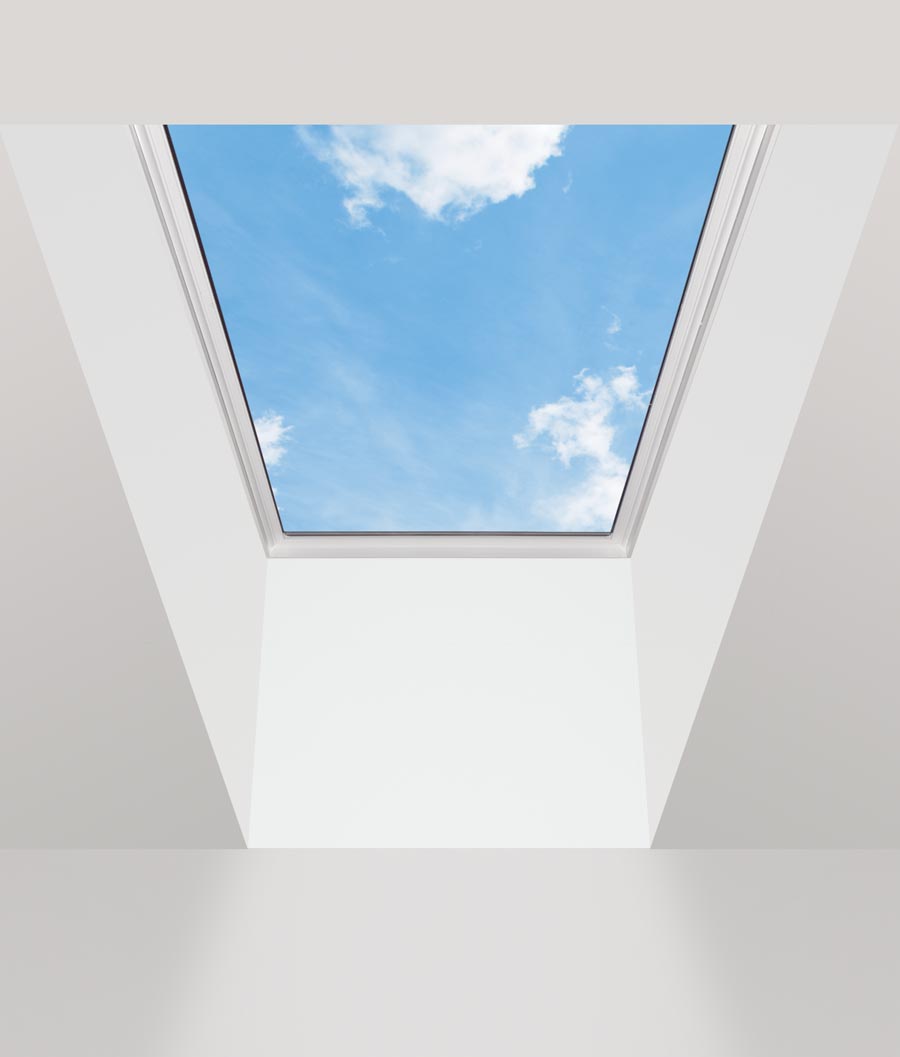

Interior
Pre-finished white poplar wood interior with decorative molding with the choice of a 2", 4" or 6" high curb. Thick foam gasket around the perimeter seals the sash to the curb to keep it water-tight.
Proudly Made in America
Kennedy glass and polycarbonate skylights are manufactured in America.
Industry's Best Warranty
25-year on glass and 10-year on defects in material and deterioration.
Florida Building Code Approved
Kennedy skylights meet Florida's rigorous requirements of the Florida Building Code.

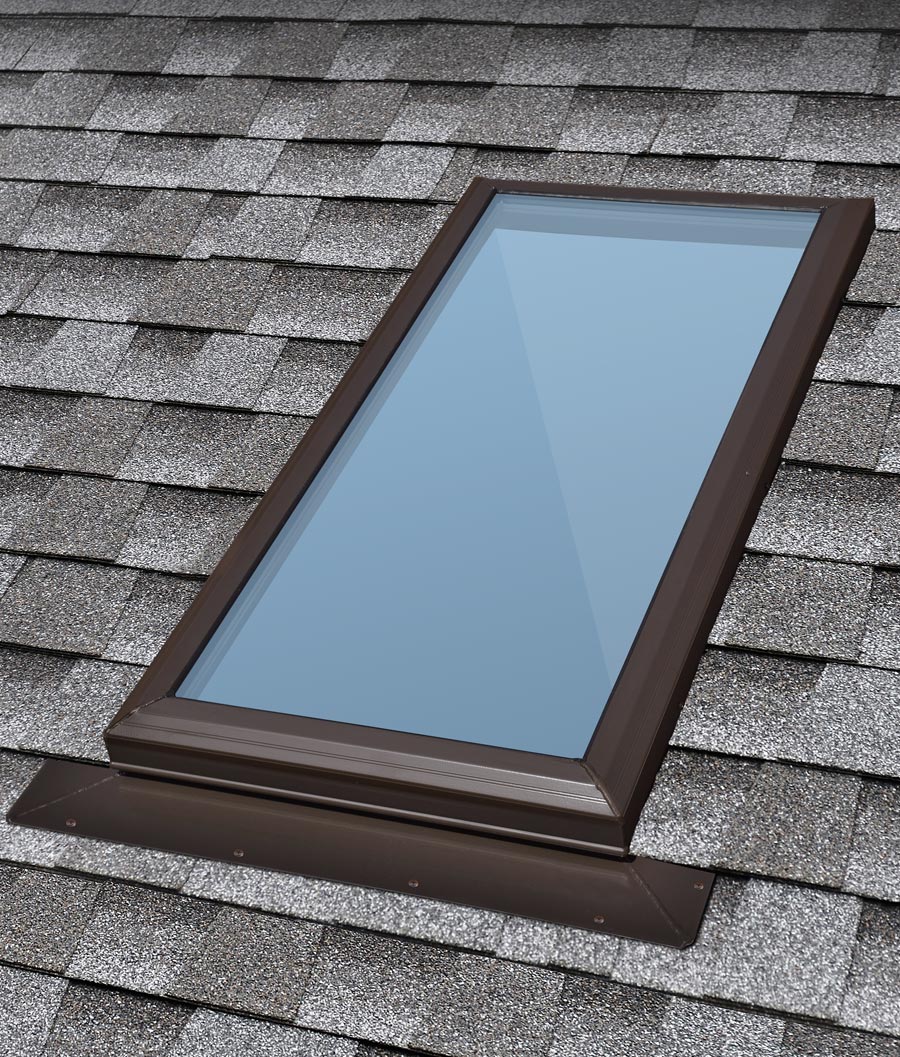

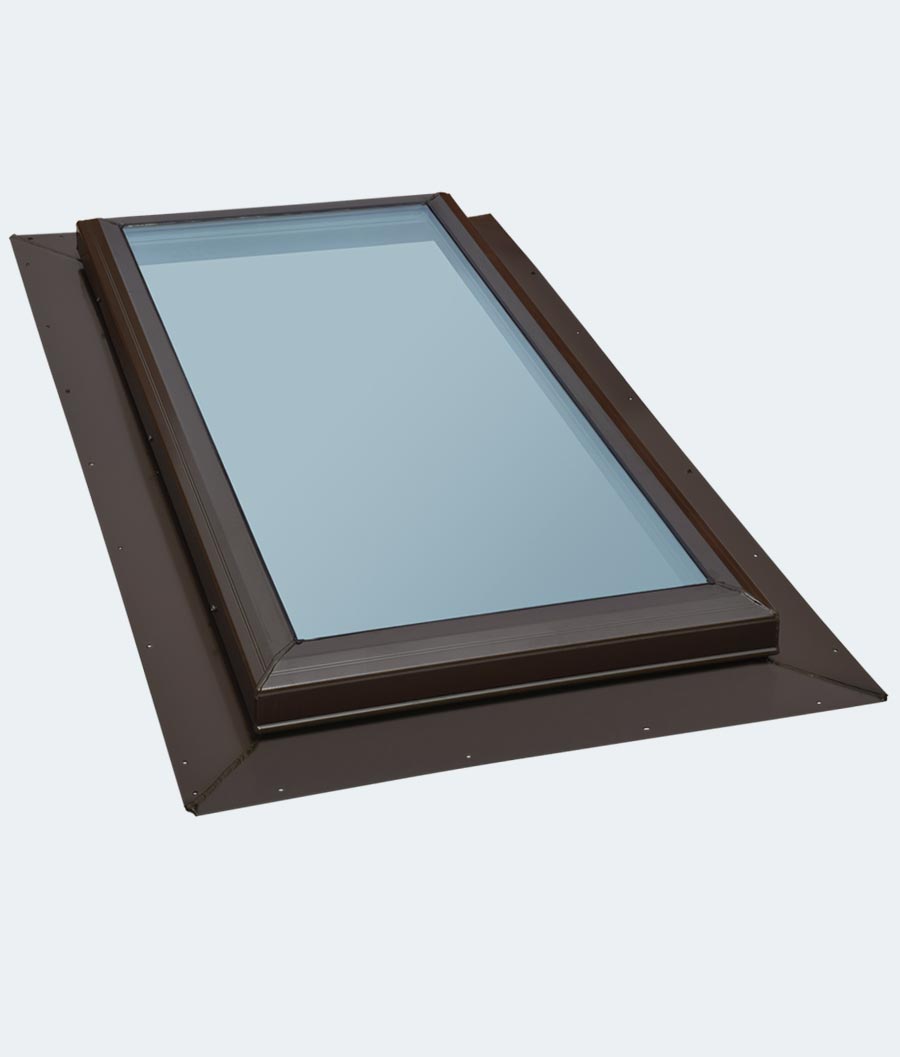

Self Flashing Fixed Glass Skylight
Choice of 2", 4" or 6" High Curb
Key Features
- Meets the stringent requirements of the Florida Building Code
- High performance glass LoE-240 argon-filled glass
- .062" extruded aluminum exterior with welded corners
- Integrated 4" flange with pre-drilled screw holes
- Certified to meet performance criteria defined by AAMA/WDMA 1600/IS 2-200
Glass Choices
- Tempered, LoE-240 argon-filled glass (standard)
- High impact, hurricane rated, LoE-240 argon-filled glass - Miami-Dade Approved for all HVHZ Zones - view model
Material Info and Application
- Exterior is powder coated inside and out for superior durability
- Pre-finished white poplar wood interior
- SFG2 model (2" curb) requires a minimum 3:12 roof pitch
- SFG4 model (4" curb) requires a minimum 2:12 roof pitch
- SFG6 model (6" curb) requires a minimum 0:12 roof pitch
Warranty
- 25-Year non-prorated limited warranty on insulated glass against seal failure
- 10-Year limited warranty against defects in workmanship and materials
Skylight Sizes
All the model sizes are available with the choice of 2", 4" or 6" high curb. Use 2" with a minimum 3:12 pitch, 4" with a minimum 2:12 pitch and 6" with a minimum 0:12 pitch.
TSFG TEMPERED GLASS SKYLIGHTS SIZES:
 |
 |
 |
 |
 |
|
| Model Number | 1430TSFG | 1446TSFG | 2222TSFG | 2230TSFG | 2246TSFG |
| Rough Opening |
14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" | 22.5" x 30.5" | 22.5" x 46.5" |
| Outside Flange | 23" x 39" | 23" x 55" | 31" x 31" | 31" x 39" | 31" x 55" |
 |
 |
 |
 |
 |
|
| 4622TSFG | 2269TSFG | 3030TSFG | 3046TSFG | 4646TSFG | Model Number |
| 46.5" x 22.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" | Rough Opening |
| 55" x 31" | 31" x 78" | 39" x 39" | 39" x 55" | 55" x 55" | Outside Flange |
ISFG HIGH IMPACT GLASS SKYLIGHTS SIZES:
|
|
|
|
|
|
| Model Number | 1430ISFG | 1446ISFG | 2222ISFG | 2230ISFG | 2246ISFG |
| Rough Opening |
14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" | 22.5" x 30.5" | 22.5" x 46.5" |
| Outside Flange | 23" x 39" | 23" x 55" | 31" x 31" | 31" x 39" | 31" x 55" |
|
|
|
|
|
|
| 4622ISFG | 2269ISFG | 3030ISFG | 3046ISFG | 4646ISFG | Model Number |
| 46.5" x 22.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" | Rough Opening |
| 55" x 31" | 31" x 78" | 39" x 39" | 39" x 55" | 55" x 55" | Outside Flange |

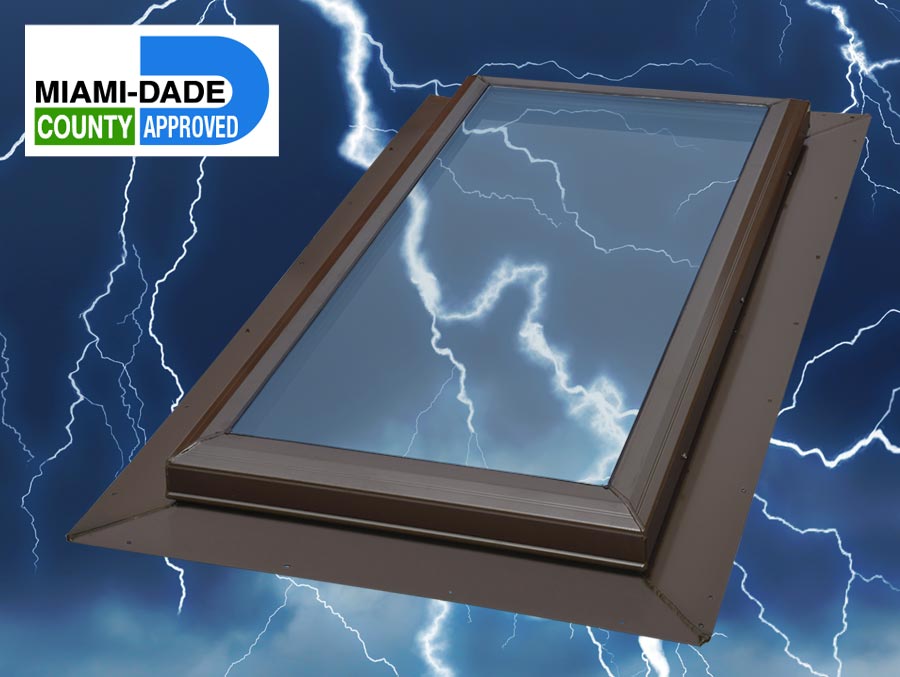

MD-ISFG Hurricane Approved Skylight
Officially Certified "Hurricane Approved" by Miami-Dade County
MD-ISFG is Kennedy's highest performing self-flashing glass skylight. It features all the same quality components of the SFG model but has undergone intense water pressure testing, large missile impact testing and water infiltration testing to be officially certified by the Miami-Dade County Product Control as approved for all hurricane and HVHZ wind zones. It's available in 10 model sizes. Read more about Miami-Dade NOA.
Hurricane Approved Glass Info
- High Velocity, Hurricane Zone, NOA #25-0718.01
- Design Pressure Rating (DPR): +/-60 psf
- Impact Rating: HVHZ (High Velocity Hurricane Zones) - Large Missile Impact
- Solar Heat Gain Coefficient (SHGC): 0.22
Warranty
- 25-Year non-prorated limited warranty on insulated glass against seal failure
- 10-Year limited warranty against defects in workmanship and materials
- Certified to meet performance criteria defined by AAMA/WDMA 1600/IS 2-200

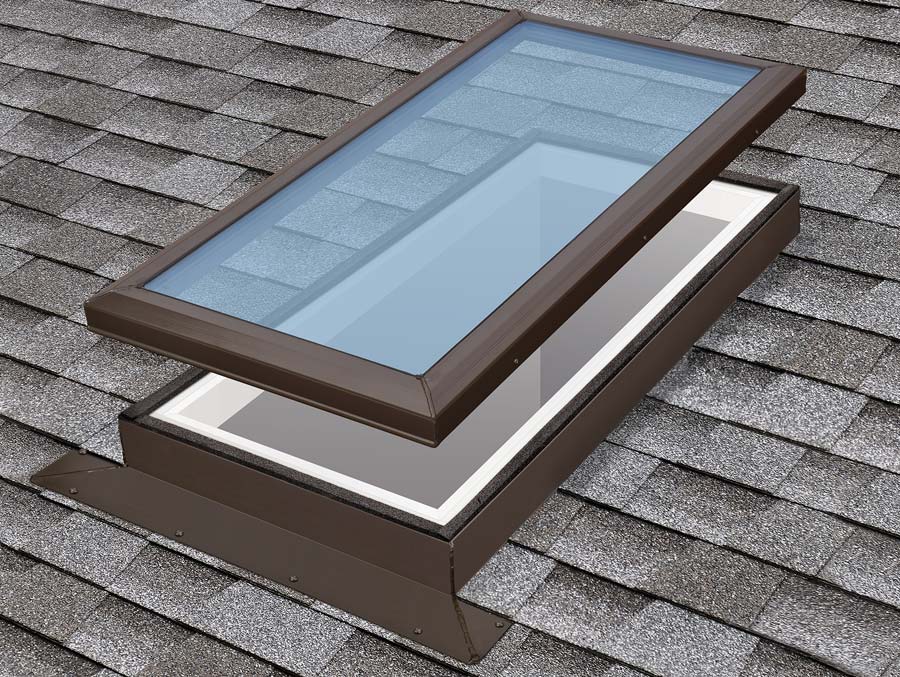

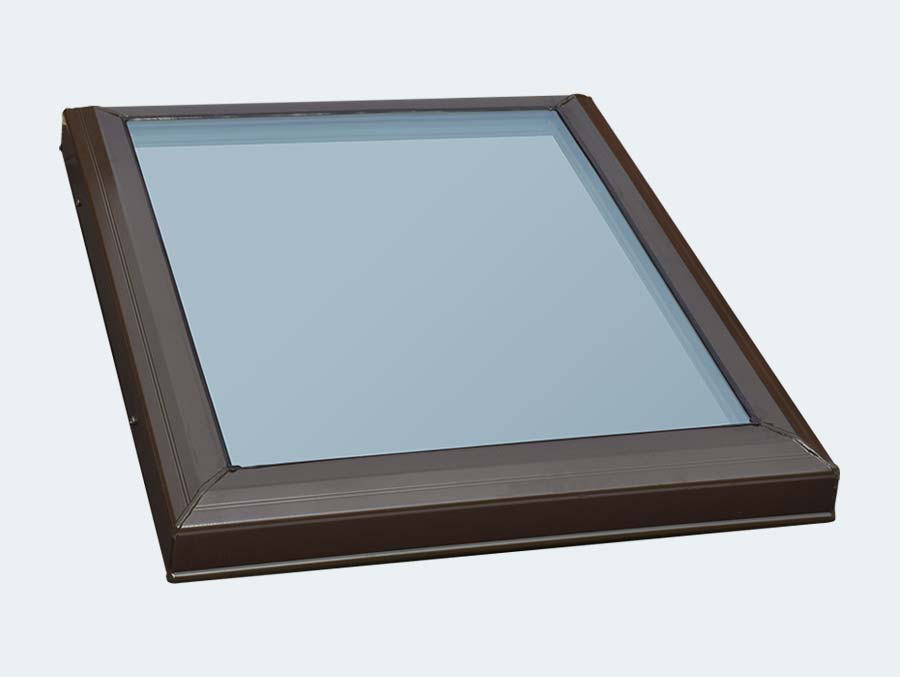

RG Replacement Sash
Kennedy Replacement Sashes are avaialble to easily and quickly change out an older glass skylight sash. They have all the same quality features as our SFG skylight and come in all the same sizes. Custom sizes and colors are also available.
Glass Choices
- Tempered, LoE-240 argon-filled glass (standard)
- High impact, hurricane rated, LoE-240 argon-filled glass
Warranty
- 25-Year non-prorated limited warranty on insulated glass against seal failure
- 10-Year limited warranty against defects in workmanship and materials
- Certified to meet performance criteria defined by AAMA/WDMA 1600/IS 2-200
Replacement Sash Sizes
TRG TEMPERED GLASS SKYLIGHT SASH SIZES:
|
|
|
|
|
|
| Model Number | 1430TRG | 1446TRG | 2222TRG | 2230TRG | 2246TRG |
| Rough Opening |
14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" | 22.5" x 30.5" | 22.5" x 46.5" |
|
|
|
|
|
|
| 4622TRG | 2269TRG | 3030TRG | 3046TRG | 4646TRG | Model Number |
| 46.5" x 22.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" | Rough Opening |
IRG HIGH IMPACT GLASS SKYLIGHT SASH SIZES:
|
|
|
|
|
|
| Model Number | 1430IRG | 1446IRG | 2222IRG | 2230IRG | 2246IRG |
| Rough Opening |
14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" | 22.5" x 30.5" | 22.5" x 46.5" |
|
|
|
|
|
|
| 4622IRG | 2269IRG | 3030IRG | 3046IRG | 4646IRG | Model Number |
| 46.5" x 22.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" | Rough Opening |
