Solar Attic Fan Accessories
Kennedy offers a variety of accessories to assist with tile installations or add additional functionality to our Solar Attic Fans.

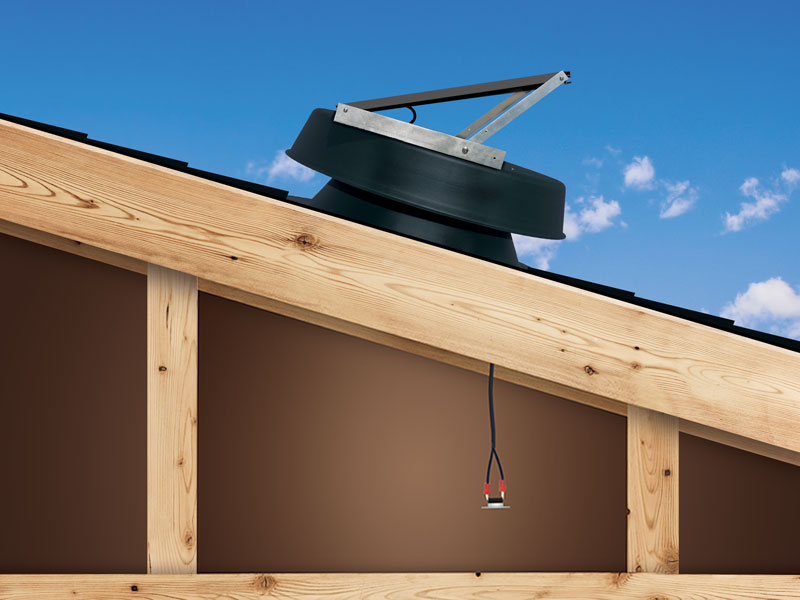

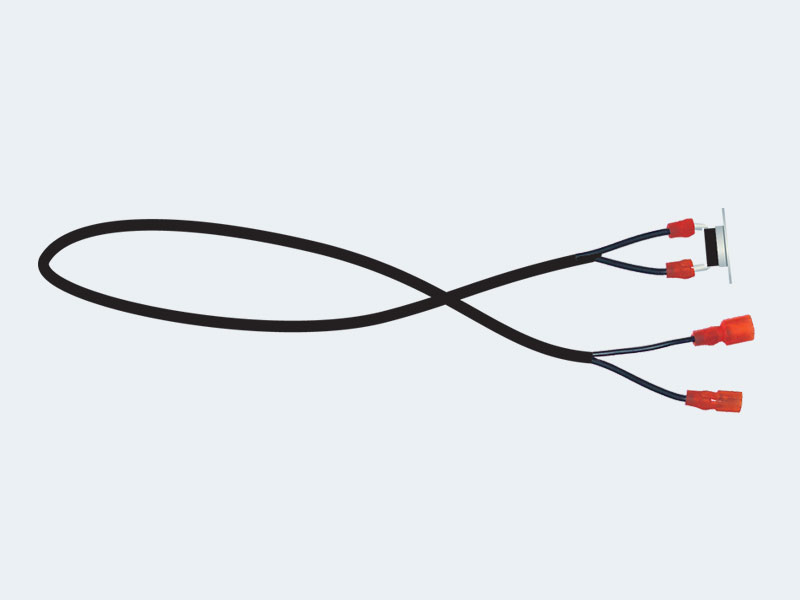

Thermal Snap Switch Automatically Shuts Off Fan
The thermal snap switch is a small device that attaches to the attic fan motor. It's designed to turn on the Kennedy Solar Attic Fan when the temperature in the attic reaches approximately 80°F. The thermal switch will turn off the motor when the temperature in the attic reaches 70°F. The thermal snap switch helps maintain a consistent temperature when the weather is temperate and reduces wear on the attic fan. Watch install video.
Part: #SAFTS

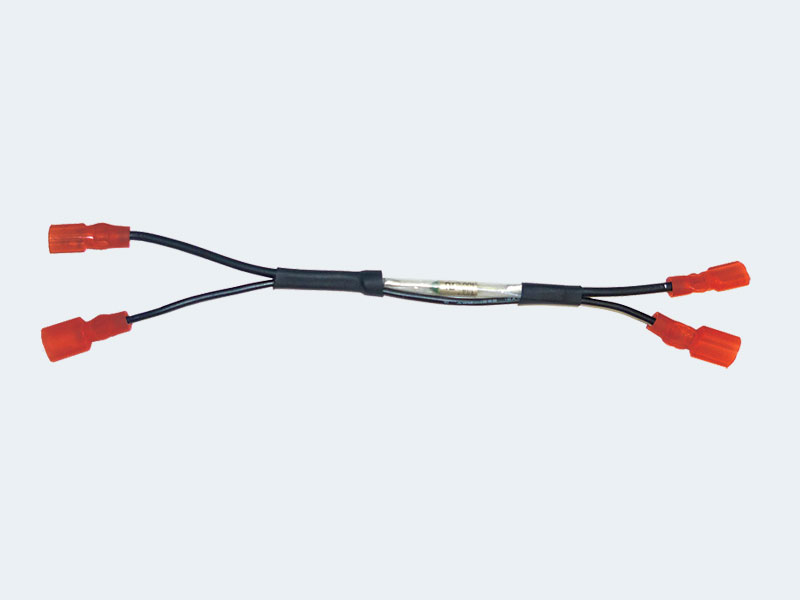

Fire Safety Cutoff Switch
The optional fire safety cutoff switch is specially designed to help stop the spread of house attic fires during daytime fan operation by shutting down the fan. The switch features a fusible link that will melt at 228° Fahrenheit to limit the introduction of fresh air that would otherwise help feed the fire. It is easily installed alone or in conjunction with the Kennedy thermal switch.
Part: #FSCS

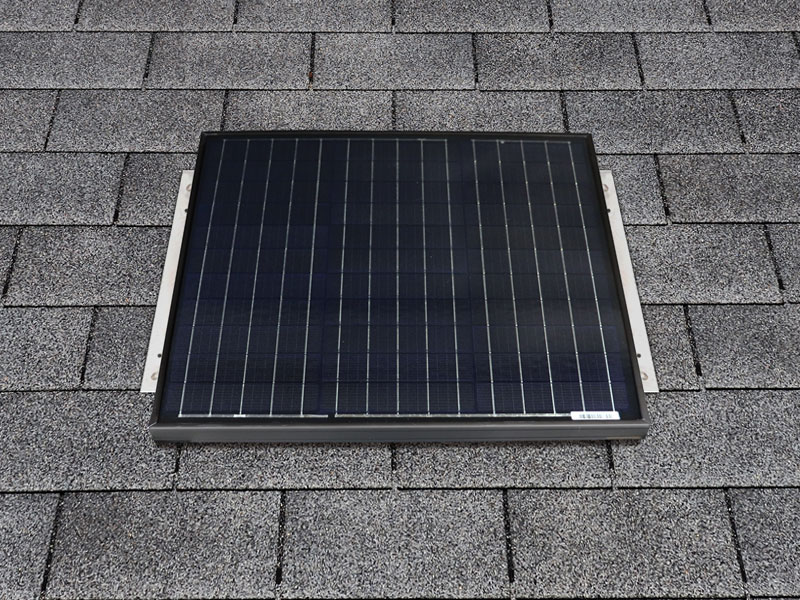

Remote Solar Panel for Shady Roofs
A remote solar panel is used in applications where there is limited sunshine available at the location where the solar attic fan needs to been installed. The remote panel is installed away from the attic fan assembly in a sunny area, capturing the maximum amount of sunlight and therefore achieving optimal attic fan performance.
Part: -Remote

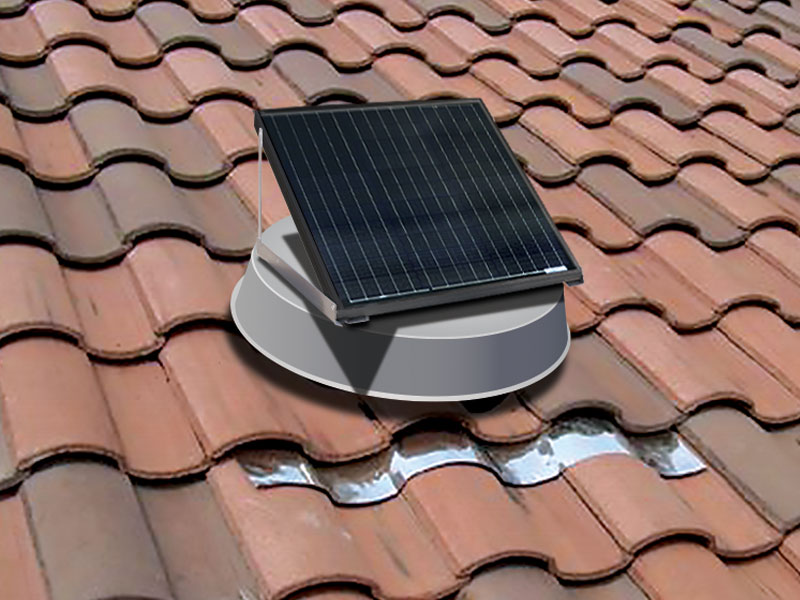

Tile Roof Flashing Skirt
Most solar attic fan installations on tile roofs will need an additional flashing skirt. The custom designed flashing skirt is installed over the solar attic fan flashing to ensure a weather-tight installation. The flashing skirt is made of a soft heavy-gauge aluminum that molds over any tile shape. The rubber seal fits over the base unit. The steps to install a solar attic fan on tile roofs are slightly different than a standard installation. Please refer to our detailed installation instructions.
Part: #13S

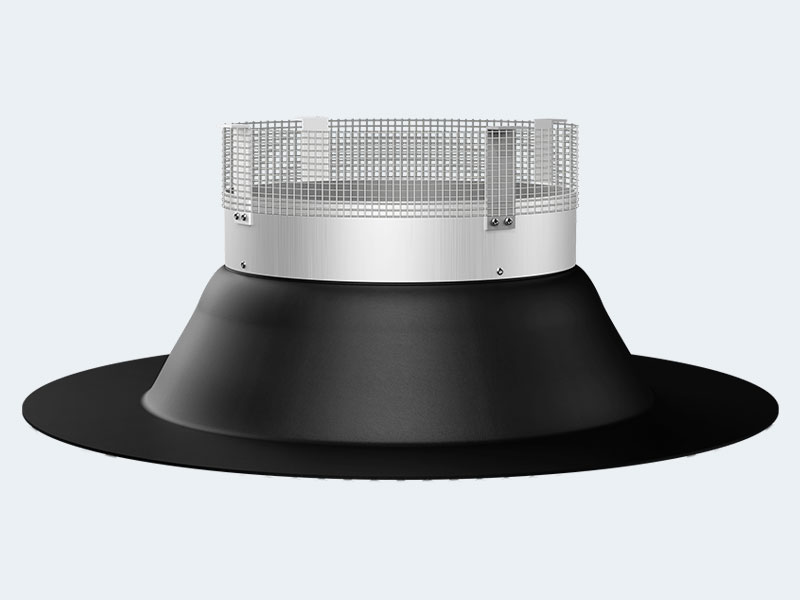

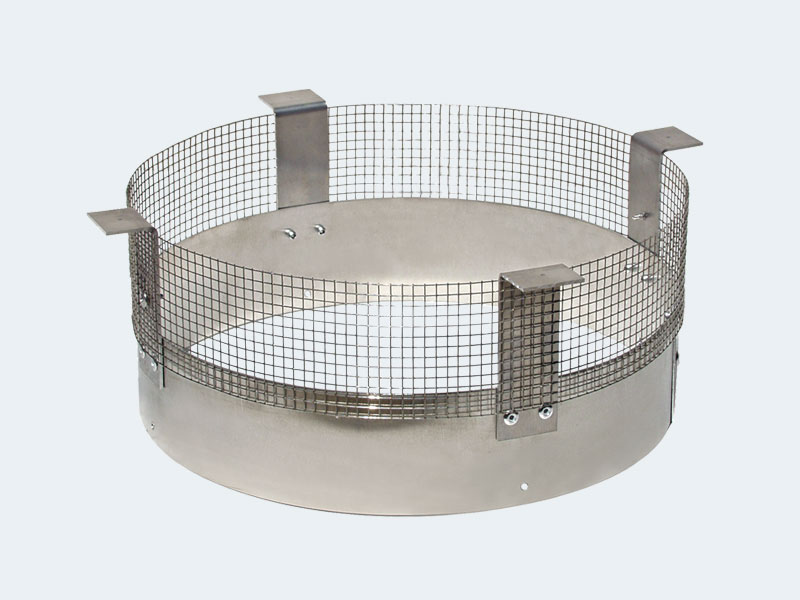

Turret Extension for Tile Roof Installations
The turret extension is a uniquely designed extender for the solar attic fan. It raises the housing portion of the fan 3 inches to allow additional room for thicker tile roofs. The turret extension is easily installed by removing the existing housing brackets and protective screen and replacing it with the extension.
Part: #SAF-EXT
