CURB MOUNT GLASS
CMG Curb Mount Glass Skylights

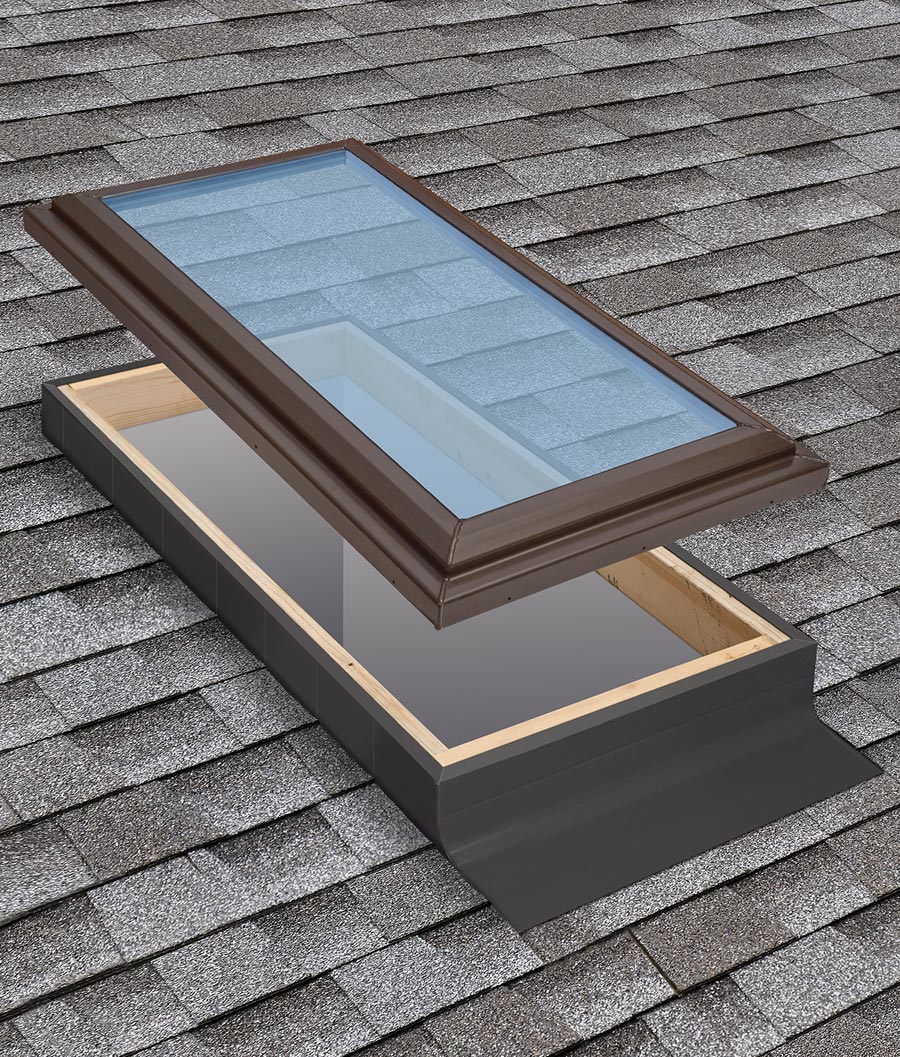

Curb mount glass skylights are installed over a curb or frame that is mounted to the roof. Curbs are usually made from wood, but can also be made of metal. Our curb mount skylights come in 9 standard sizes with two glazing options.

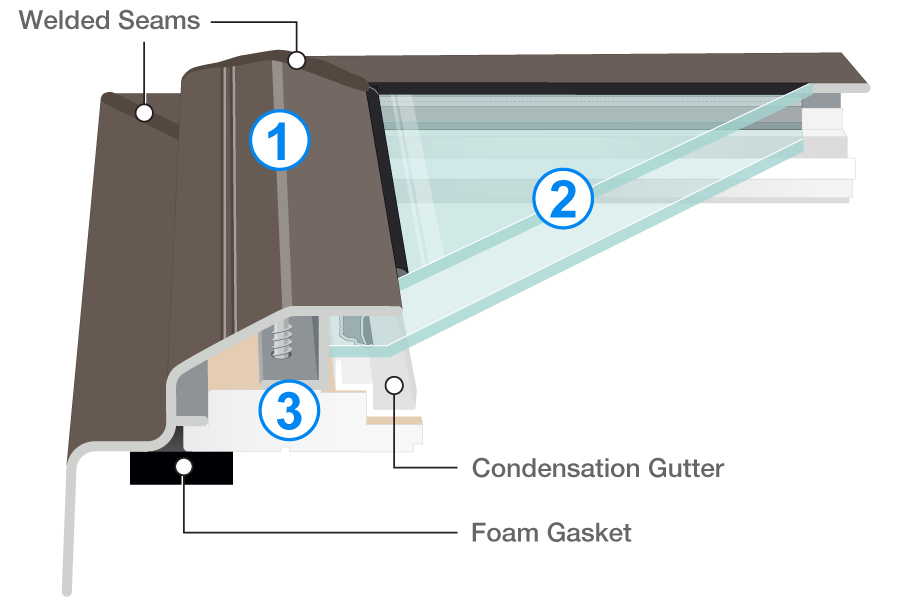

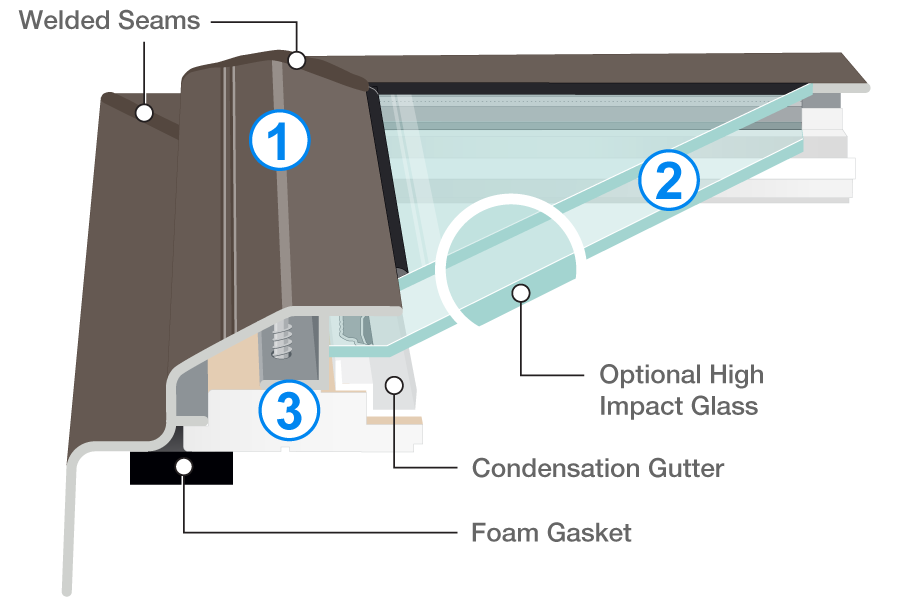

Sash
Corrosion-proof .062" extruded aluminum with welded corners to guarantee a leakproof seal. Powder coated for extra durability. Curb is oversized to fit most curbs.
Glass
Choice of tempered, high impact LoE-240 glass or high velocity/hurricane approved model. Skylight features a condensation gutter to channel moisture off of the glass.
Interior
The underside of the skylight perimeter has a thick foam tape gasket to seal the sash to the curb and keep the unit water-tight.
Proudly Made in America
Kennedy glass and polycarbonate skylights are manufactured in America.
Industry's Best Warranty
25-year on glass and 10-year on defects in material and deterioration.
Florida Building Code Approved
Kennedy skylights meet Florida's rigorous requirements of the Florida Building Code.
Curb Mount Glass Skylight
installs over a pre-built curb
Key Features
- Meets the stringent requirements of the Florida Building Code
- High performance glass LoE-240 argon-filled glass
- .062" extruded aluminum exterior with welded corners
- Oversized to fit most curbs
- Optional aluminum curb available - mounts on AC or ACW - view curbs
- Certified to meet performance criteria defined by AAMA/WDMA 1600/IS 2-200
Glass Choices
- Tempered, LoE-240 argon-filled glass (standard)
- High impact, hurricane rated, LoE-240 argon-filled glass
- Miami-Dade approved glass for all HVHZ Zones- view model
Material Info and Application
- Exterior is powder coated bronze for superior durability
- Pre-finished white poplar wood interior
Easy Replacement
- Key benefit to installing curb mount skylights is that they can easily be replaced without modifying the roofing material
- Kennedy curb mount skylights come in standard sizes to easily replace old skylights from other manufacturers including Velux
Warranty
- 25-Year non-prorated limited warranty on insulated glass against seal failure
- 10-Year limited warranty against defects in workmanship and materials
CMG models are manufactured 1" larger than the outside curb dimension to allow for flashing material. Example: 2246CMG actual outside curb dimensions = 26.5" x 50.5"
TCMG TEMPERED GLASS SKYLIGHTS SIZES:
 |
 |
 |
 |
|
| Model Number | 1430TCMG | 1446TCMG | 2222TCMG | 2230TCMG |
| Rough Opening |
14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" | 22.5" x 30.5" |
| Outside Curb | 17.5" x 33.5" | 17.5" x 49.5" | 25.5" x 25.5" | 25.5" x 33.5" |
 |
 |
 |
 |
 |
| 2246TCMG | 2269TCMG | 3030TCMG | 3046TCMG | 4646TCMG |
| 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 25.5" x 49.5" | 25.5" x 72.5" | 33.5" x 33.5" | 33.5" x 49.5" | 49.5" x 49.5" |
ICMG HIGH IMPACT GLASS SKYLIGHTS SIZES:
|
|
|
|
|
| Model Number | 1430ICMG | 1446ICMG | 2222ICMG | 2230ICMG |
| Rough Opening |
14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" | 22.5" x 30.5" |
| Outside Curb | 17.5" x 33.5" | 17.5" x 49.5" | 25.5" x 25.5" | 25.5" x 33.5" |
|
|
|
|
|
| 2246ICMG | 2269ICMG | 3030ICMG | 3046ICMG | 4646ICMG |
| 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 25.5" x 49.5" | 25.5" x 72.5" | 33.5" x 33.5" | 33.5" x 49.5" | 49.5" x 49.5" |

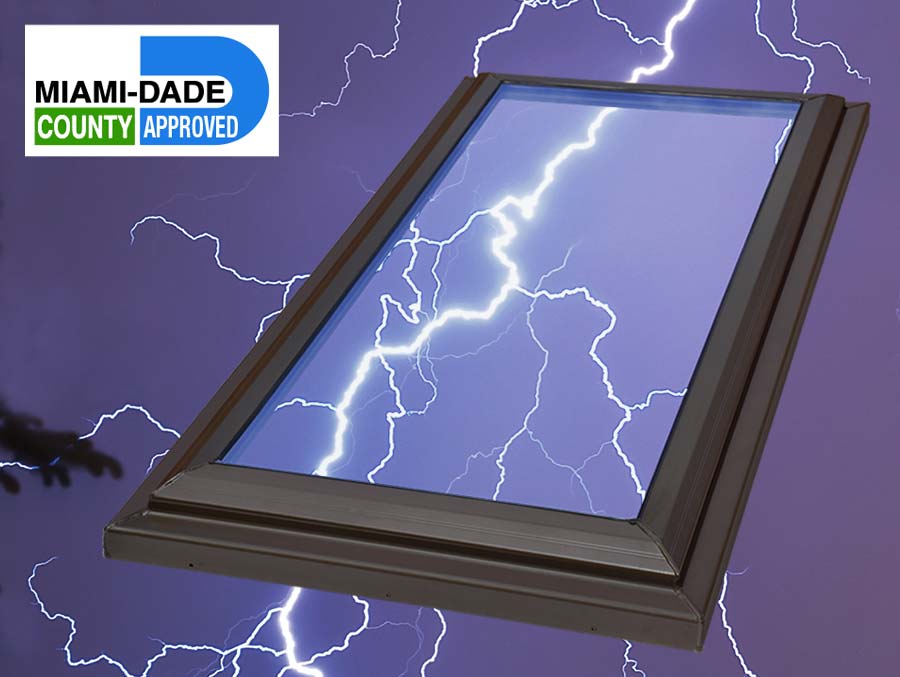

MD-ICMG Curb Mount Glass Skylights
Officially Certified "Hurricane Approved" by Miami-Dade County
MD-ICMG is Kennedy's highest performing glass skylight. It features all the same quality components of the CMG model but has undergone intense water pressure testing, large missile impact testing and water infiltration testing to be officially certified by the Miami-Dade County Product Control as approved for all hurricane and HVHZ wind zones. It's available in 8 models without a curb or in 3 models with a 6" high curb. Read more about Miami-Dade NOA.
Hurricane Approved Glass Info
- High Velocity, Hurricane Zone, NOA#16-0329.08
- Solar Heat Gain Coefficient (SHGC): 0.22
- Design Pressure Rating (DPR): +60 -60 psf
Warranty
- 25-Year non-prorated limited warranty on insulated glass against seal failure
- 10-Year limited warranty against defects in workmanship and materials
- Certified to meet performance criteria defined by AAMA/WDMA 1600/IS 2-200
MD-ICMG SKYLIGHTS SIZES WITHOUT CURB:
MD-ICMG models are manufactured 1" larger than the outside curb dimension to allow for flashing material.
|
|
|
|
|
| Model Number | 1430MD-ICMG | 1446MD-ICMG | 2222MD-ICMG | 2230MD-ICMG |
| Rough Opening |
14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" | 22.5" x 30.5" |
| Outside Curb | 17.5" x 33.5" | 17.5" x 49.5" | 25.5" x 25.5" | 25.5" x 33.5" |
|
|
|
|
|
| 2246MD-ICMG | 2269MD-ICMG | 3030MD-ICMG | 3046MD-ICMG | 4646MD-ICMG |
| 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 25.5" x 49.5" | 25.5" x 72.5" | 33.5" x 33.5" | 33.5" x 49.5" | 49.5" x 49.5" |
MD-ICMG | ACW6 SKYLIGHT SIZES WITH 6" CURB:
|
|
|
|
|
| Model Number | 1430MD-ICMG | 1446MD-ICMG | 2222MD-ICMG | 2230MD-ICMG |
| Rough Opening |
14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" | 22.5" x 30.5" |
| Outside Flange | 25.5" x 41.5" | 25.5" x 57.5" | 33.5" x 33.5" | 33.5" x 41.5" |
|
|
|
|
|
| 2246MD-ICMG | 2269MD-ICMG | 3030MD-ICMG | 3046MD-ICMG | 4646MD-ICMG |
| 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 33.5" x 57.5" | 33.5" x 80.5" | 41.5" x 41.5" | 41.5" x 57.5" | 57.5" x 57.5" |
