Aluminum Curbs
Kennedy manufactures aluminum curbs to speed up skylight installations. We manufacture both non-insulated or white wood interior curbs in 11 standard sizes.
Proudly Made in America
Kennedy curbs and skylights are manufactured in America.
10-Year Warranty
Limited warranty against against defects in workmanship and materials.
Florida Building Code Approved
Kennedy curbs meet the rigorous requirements of the Florida Building Code.

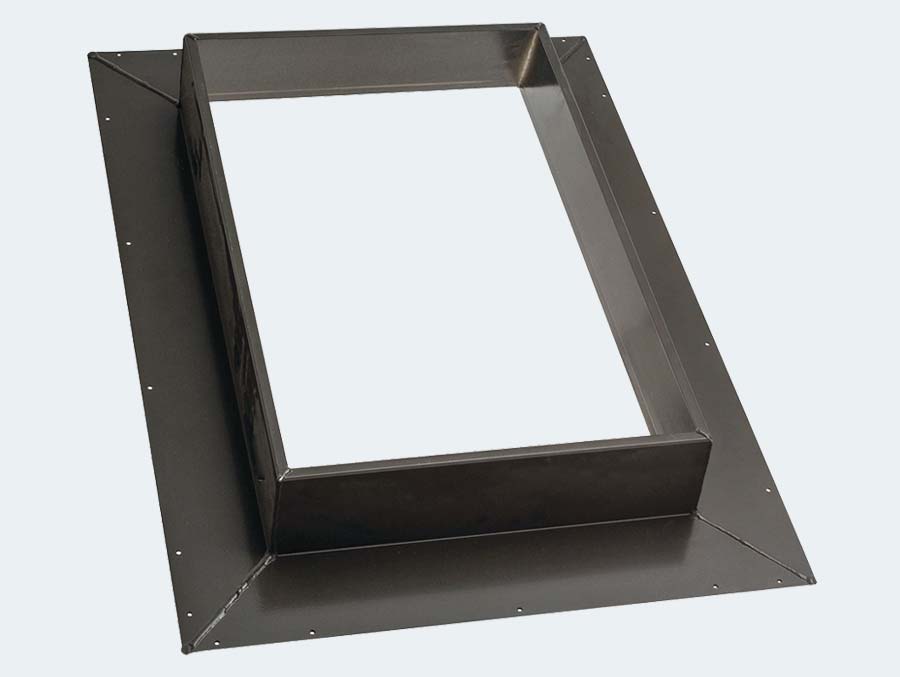

AC Aluminum Curb
The AC is a non-insulated, pre-finished aluminum curb with the choice of 4" or 6" high curb

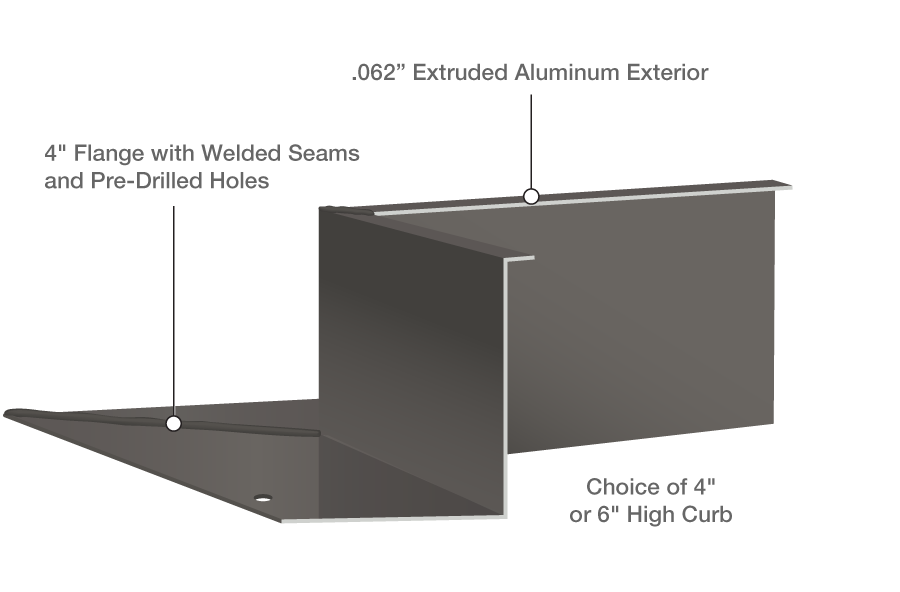

Heavy-duty Alumunum
Features .062” extruded aluminum exterior with welded corners.
Pre-Finshed
Powder coated bronze for extra durability.
Pre-drilled
Aluminum flange includes pre-drilled screw holes for easy installation.
AC Key Features
- Fits all roof pitches in choice of 4" or 6" high curb
- Sized to fit standard US truss and rafter framing
- .062" extruded aluminum frame with welded corners
- 4" predrilled integral nailing flange for easy, leakproof installation
- Pre-finished, powder coated bronze exterior
- Individually boxed
Pre-Built Curb Advantages
- Saves time and simplifies any skylight installation
- Superior to galvanized metal or site-built curbs
- Works with many brands of plastic and glass skylights designed for curbs
- Non-insulated curb ideal for replacing flashing on existing skylights
AC curbs are available with a 4" or 6" high curb. 6" curb required for flat roof applications.
 |
 |
 |
 |
 |
|
| Model Number | 1414AC | 1422AC | 1430AC | 1446AC | 2222AC |
| Rough Opening |
14.5" x 14.5" | 14.5" x 22.5" | 14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" |
| Outside Curb | 17.5" x 17.5" | 17.5" x 25.5" | 17.5" x 33.5" | 17.5" x 49.5" | 25.5" x 25.5" |
| Outside Flange | 25.5" x 25.5" | 25.5" x 33.5" | 25.5" x 41.5" | 25.5" x 57.5" | 33.5" x 33.5" |
 |
 |
 |
 |
 |
 |
| 2230AC | 2246AC | 2269AC | 3030AC | 3046AC | 4646AC |
| 22.5" x 30.5" | 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 25.5" x 33.5" | 25.5" x 49.5" | 25.5" x 72.5" | 33.5" x 33.5" | 33.5" x 49.5" | 49.5" x 49.5" |
| 33.5" x 41.5" | 33.5" x 57.5" | 33.5" x 80.5" | 41.5" x 41.5" | 41.5" x 57.5" | 57.5" x 57.5" |

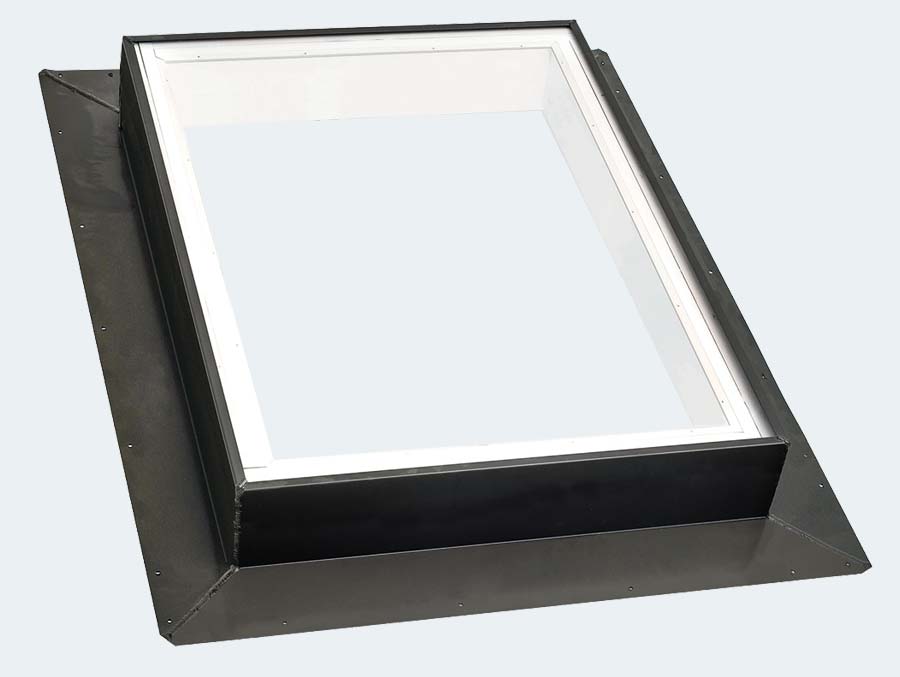

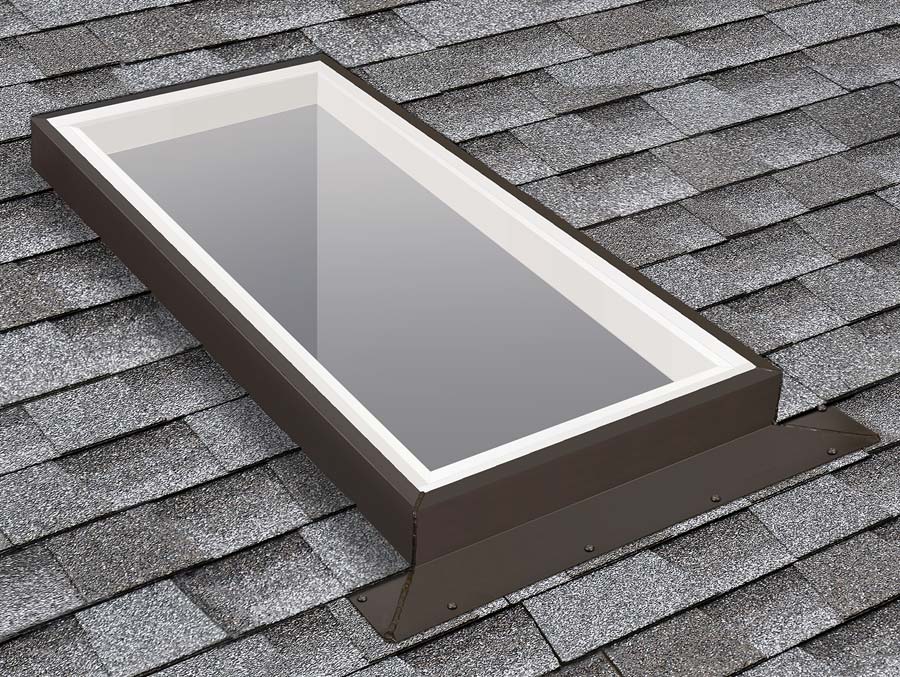

ACW Aluminum Curb with Wood Interior
The ACW is a pre-finished aluminum with a white wood interior available in either 4" or 6" high curb

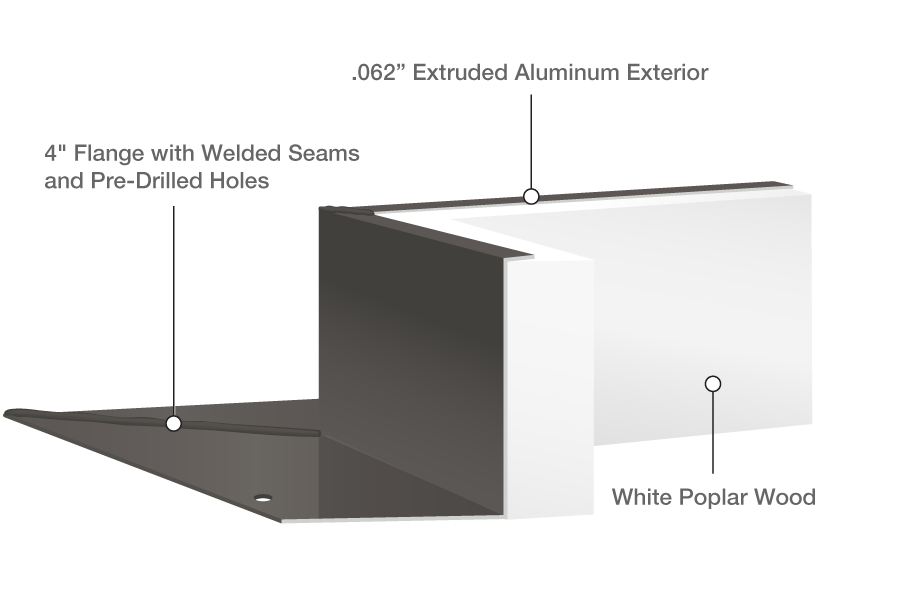

Heavy-duty Aluminum
Features .062” extruded aluminum exterior with welded corners and powder coated bronze for extra durability.
Insulated
Pre-finished white poplar wood interior.
Pre-drilled
Aluminum flange includes pre-drilled screw holes for easy installation.
ACW Key Features
- Fits all roof pitches in choice of 4" or 6" high curb
- Sized to fit standard US truss and rafter framing
- .062" extruded aluminum frame with welded corners
- 4" predrilled integral nailing flange for easy, leakproof installation
- Pre-finished white poplar wood interior and powder coated bronze exterior
- Individually boxed
Pre-Built Curb Advantages
- Saves time and simplifies any skylight installation
- Superior to galvanized metal or site-built curbs
- Works with many brands of plastic and glass skylights designed for curbs
ACW curbs are available with a 4" or 6" high curb. 6" curb required for flat roof applications.
|
|
|
|
|
|
| Model Number | 1414ACW | 1422ACW | 1430ACW | 1446ACW | 2222ACW |
| Rough Opening |
14.5" x 14.5" | 14.5" x 22.5" | 14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" |
| Outside Curb | 17.5" x 17.5" | 17.5" x 25.5" | 17.5" x 33.5" | 17.5" x 49.5" | 25.5" x 25.5" |
| Outside Flange | 25.5" x 25.5" | 25.5" x 33.5" | 25.5" x 41.5" | 25.5" x 57.5" | 33.5" x 33.5" |
|
|
|
|
|
|
| 2230ACW | 2246ACW | 2269ACW | 3030ACW | 3046ACW | 4646ACW |
| 22.5" x 30.5" | 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 25.5" x 33.5" | 25.5" x 49.5" | 25.5" x 72.5" | 33.5" x 33.5" | 33.5" x 49.5" | 49.5" x 49.5" |
| 33.5" x 41.5" | 33.5" x 57.5" | 33.5" x 80.5" | 41.5" x 41.5" | 41.5" x 57.5" | 57.5" x 57.5" |
SAF-ACWU Solar Attic Fan Aluminum Curb
Aluminum curb for Kennedy solar attic fans with wood interior available in either 4" or 6" high curb
Heavy-duty Aluminum
Features .062” extruded aluminum exterior with welded corners and powder coated bronze for extra durability - mill finish also available.
Insulated
Natural spruce wood interior.
Pre-drilled
Aluminum flange includes pre-drilled screw holes for easy installation.
ACW Key Features
- 20.75" x 20.75" curb - sized to fit all Kennedy solar attic fans
- Fits all roof pitches in choice of 4" or 6" high curb
- .062" extruded aluminum frame with welded corners
- 4" predrilled integral nailing flange for easy, leakproof installation
- Natural spruce wood interior
- Choice of powder coated bronze, black or mill-finish exterior
- Individually boxed
Pre-Built Curb Advantages
- Saves time and simplifies any solar attic fan installation
- Superior to galvanized metal or site-built curbs
Usage & Warranty
- Fits Kennedy SAF32CM, SAF48CM, SAF65CM and SAF35LPCM solar attic fan models
- 10-Year limited warranty against defects in workmanship and materials
