CURB MOUNT
K Series Curb Mount Tubular Skylights

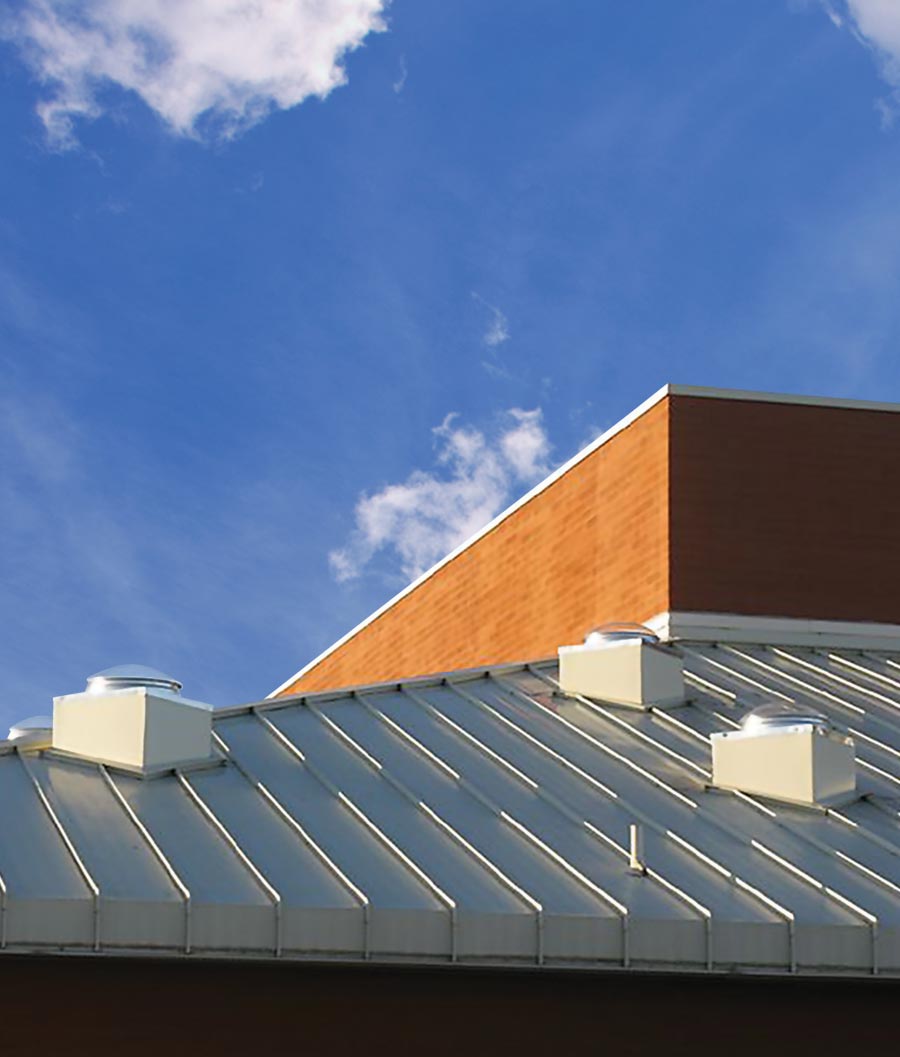

The Kennedy K Series Curb Mount Tubular Skylights install over a pre-built curb on most roof types including modified bitumen, built-up, rubber membrane, vinyl and polyurethane foam. The curb roof unit is available in 4 kit sizes: 10", 13", 18" and 21".
Proudly Made in America
Kennedy tubular skylights are manufactured in America.
Industry's Best Warranty
Limited lifetime against manufacturers defects in material and deterioration.
Hurricane Approved
Passed numerous tests including a large missile impact test to earn rating.

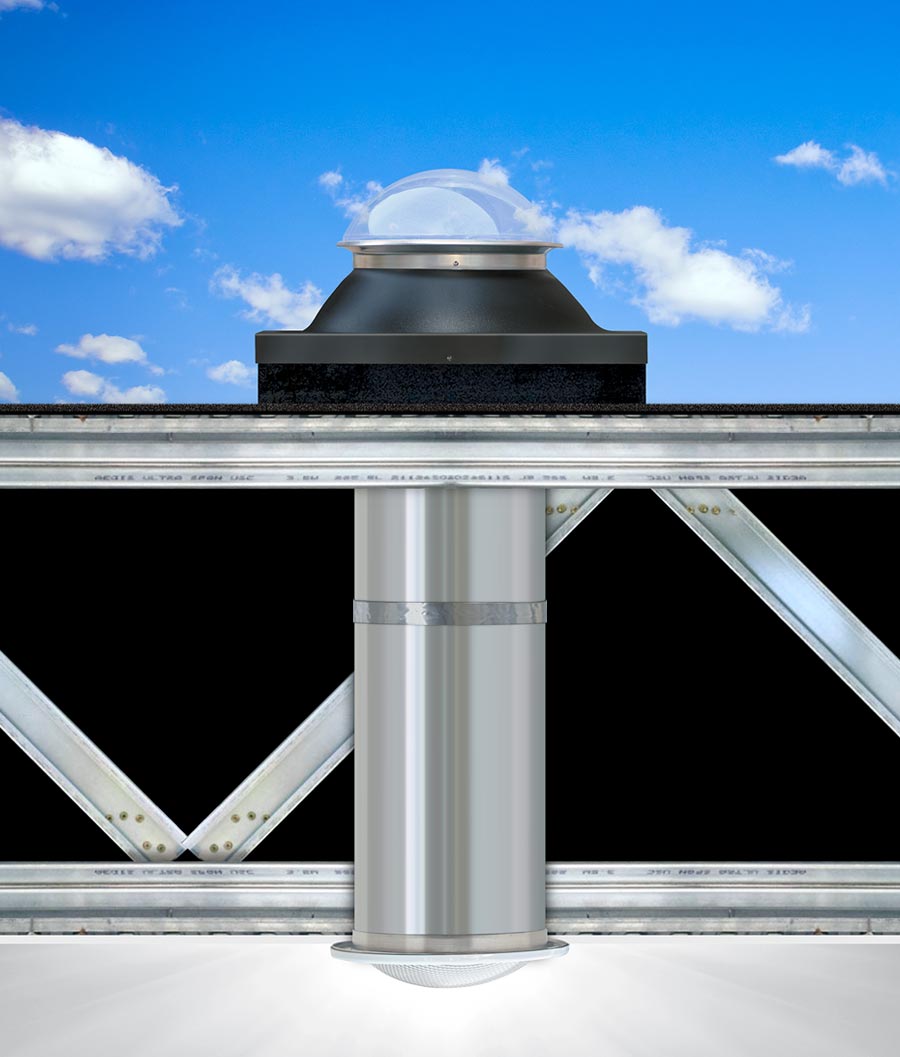

K Series Curb Mount Tubular Skylight
10" | 13" | 18" | 21" Models
Key Features
- Designed for residential or commercial flat roofs up to 2:12 pitch

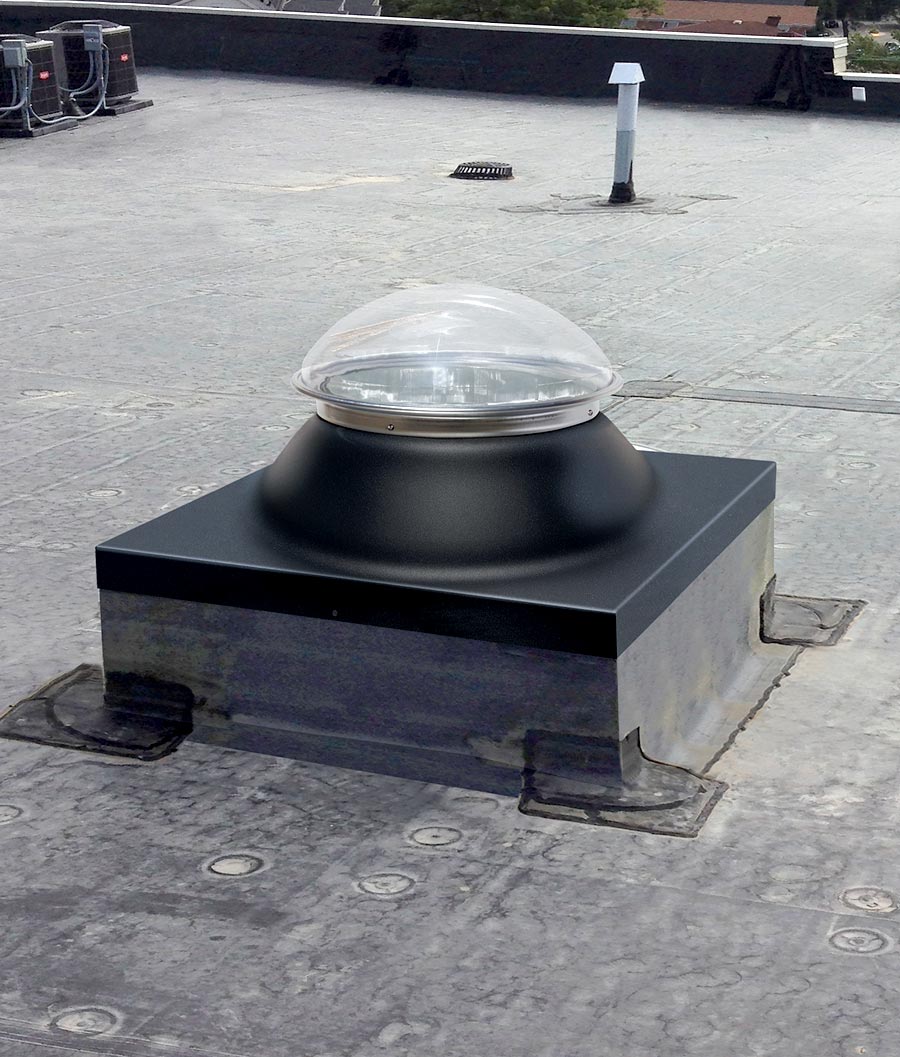

- Roof types include modified bitumen, built-up, rubber membrane, vinyl and polyurethane foam
- Installs easily with no structural changes or wiring required
- Designed to perform optimally from sunup to sundown
- Disperses light evenly while blocking 99% of harmful UV rays
- Condensation release dome prevents fogging due to humidity
- Available in 3 colors: powdercoated black or bronze or mill finish
Manufactured with the Highest Quality Components
- High Impact Acrylic Dome - with stress collar to prevent dome from cracking under temperature fluctuations
- Commercial Grade Aluminum Flashing - heavy-duty, seamless, and leak proof

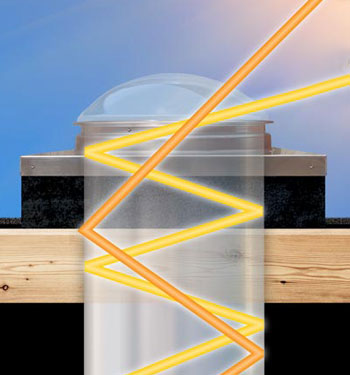

- Light Pipe - silver coated aluminum, 98% total reflectivity
- Prismatic Domed Diffuser - disperses light evenly without spot lighting or glare

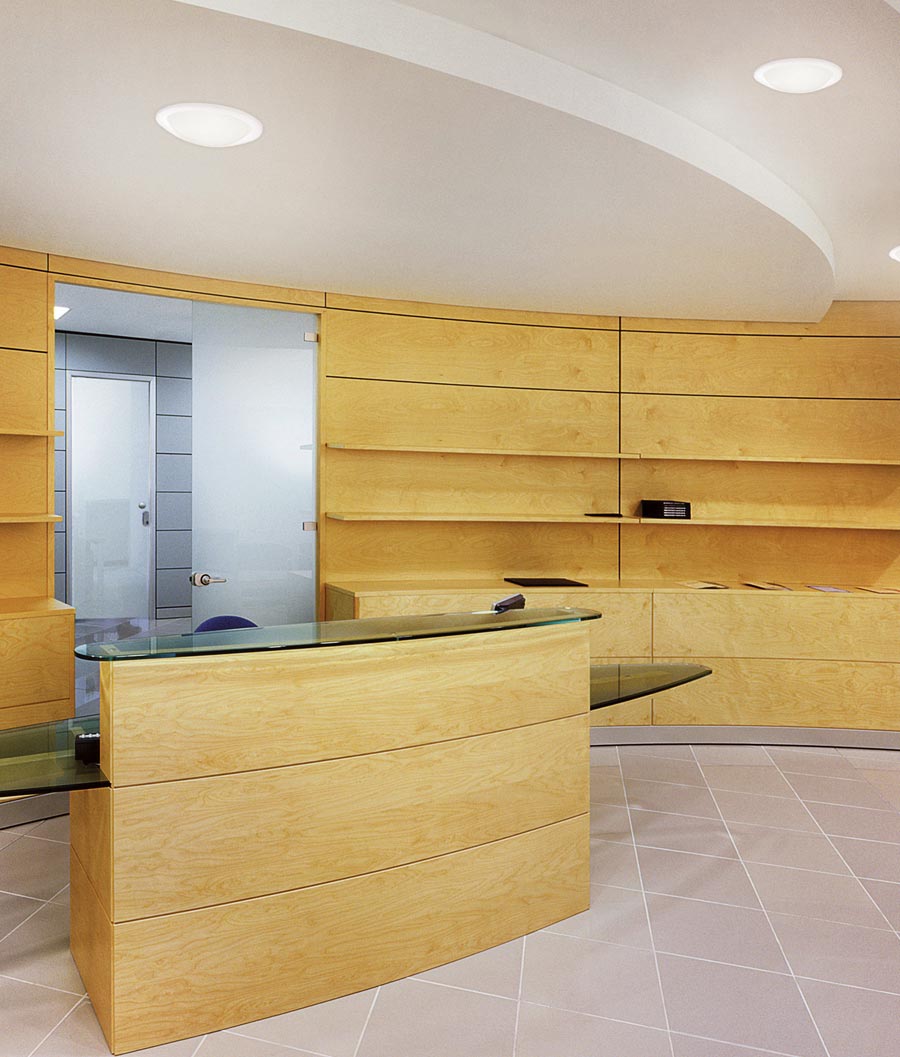

- White Aluminum Ceiling Trim Ring - blends into any decor
Certifications and Warranty
- Hurricane Tested and Approved
- Florida Building Code Approved
- Qualifies for 30% Federal Tax Credits (when paired with Solar LED Light Kit)
- ICC-ES Listed with a Limited Lifetime Warranty
Accessories

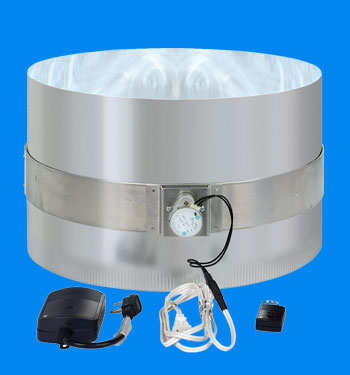

- Exhaust Vent Kit (10" model only) and Dimmer Kit with Remote
- Solar LED and Electric Light Kits
- Angle Adapters and Extra Light Pipe Sections
K Series Curb Mount Models

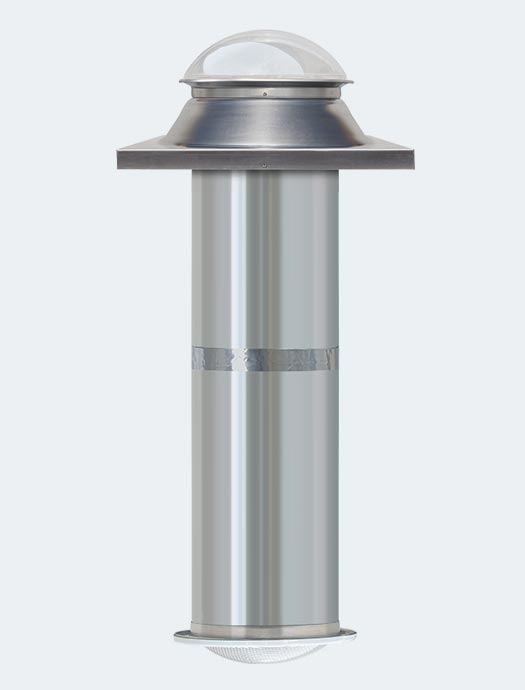

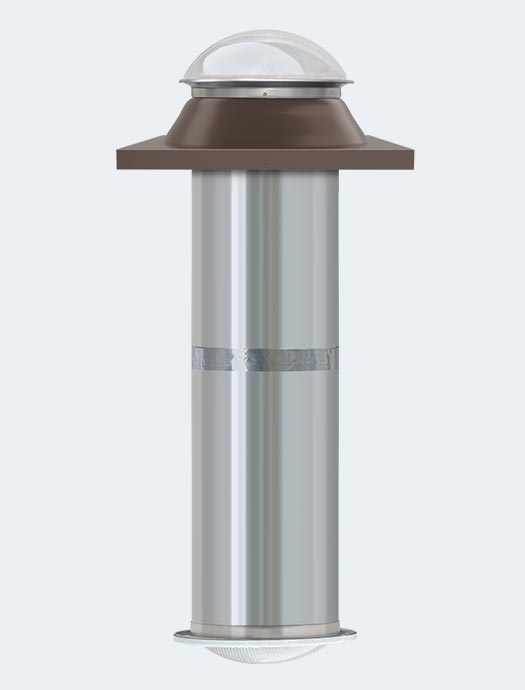

10" Kit
- Coverage: up to 150 sf
- Wattage: up to 300 watts
- Tube Height: 4 feet
- Max Tube Length: 18 feet
- Roof Slope: 0:12 to 2:12
- Model #: 10KFCM
-
Flashing Colors:
⬤ ⬤

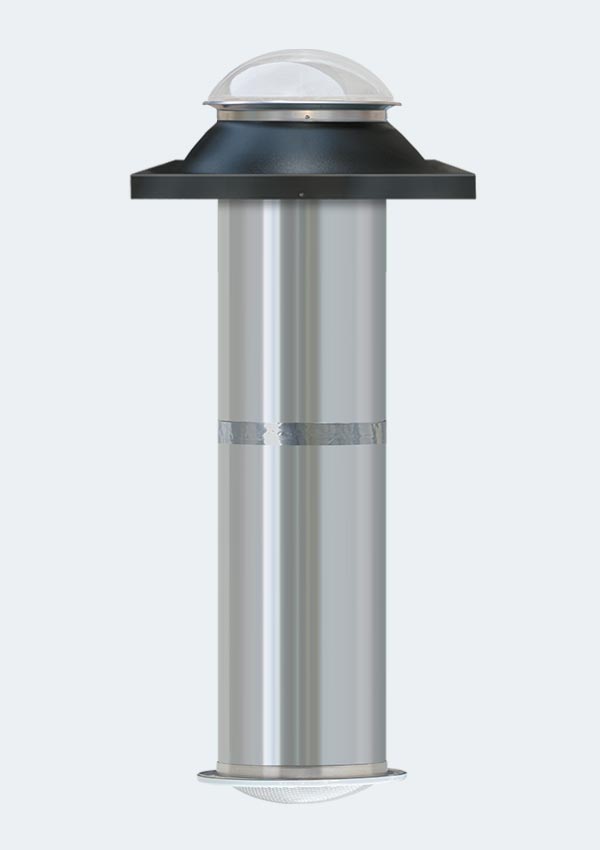

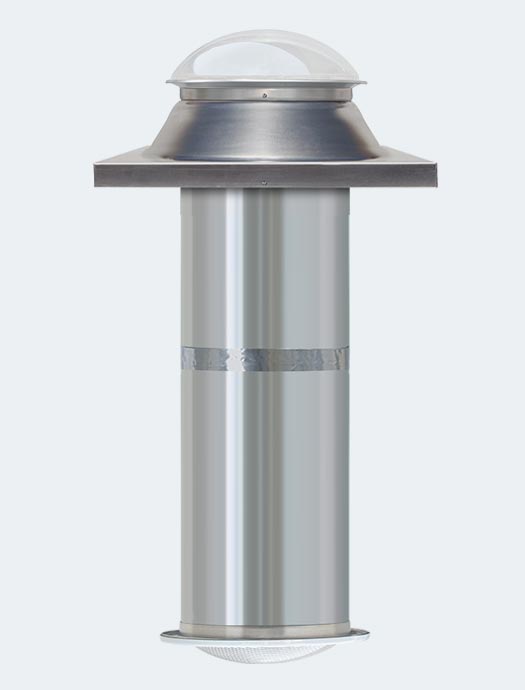

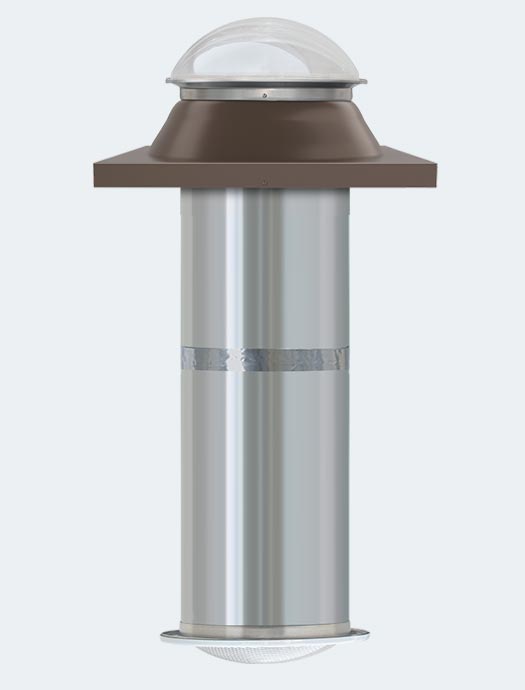

13" Kit
- Coverage: up to 300 sf
- Wattage: up to 500 watts
- Tube Height: 4 feet
- Max Tube Length: 20 feet
- Roof Slope: 0:12 to 2:12
- Model #: 13KFCM
-
Flashing Colors:
⬤ ⬤

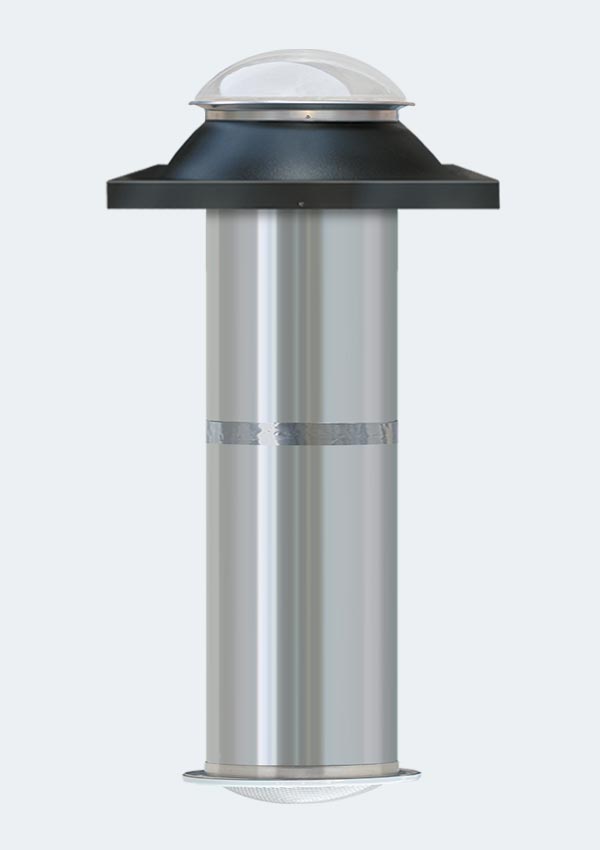

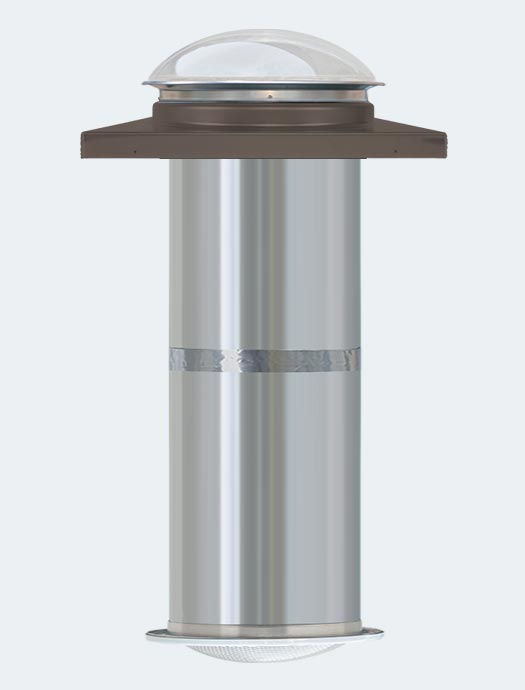

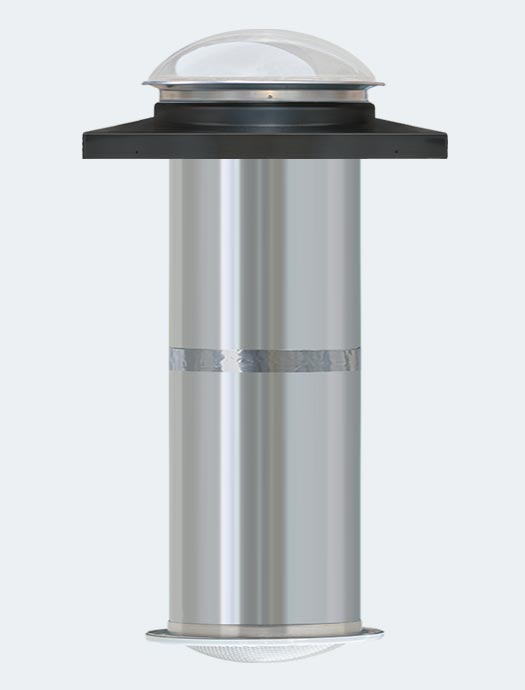

18" Kit
- Coverage: up to 500 sf
- Wattage: up to 1,000 watts
- Tube Height: 4 feet
- Max Tube Length: 20 feet
- Roof Slope: 0:12 to 2:12
- Model #: 18KFCM
-
Flashing Colors:
⬤ ⬤

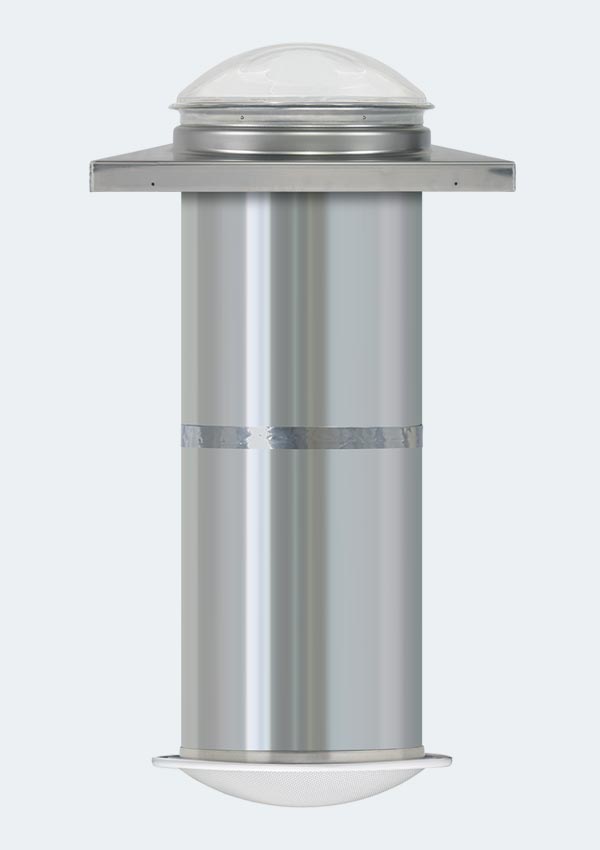

21" Kit
- Coverage: up to 700 sf
- Wattage: up to 1,450 watts
- Tube Height: 4 feet
- Max Tube Length: 20 feet
- Roof Slope: 0:12 to 2:12
- Model #: 21KFCMF
-
Flashing Color:
