K Series Quality Components
There are several companies that manufacture tubular skylights, but when it comes to quality and performance, no one compares to Kennedy Skylights.

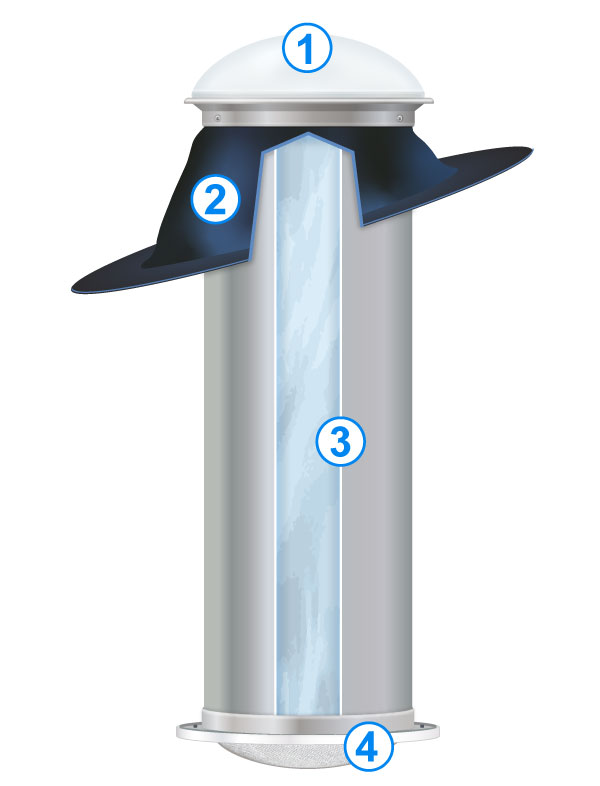

➊
High Impact Acrylic Dome
The Kennedy K Series dome is constructed of high-impact, UV stabilized acrylic with a low profile to blend seamlessly into the roof line. It is mounted in a stress absorbing seamless aluminum collar, which equalizes the pressure caused by expansion and contraction due to temperature fluctuations. Many of our competitors attach their dome directly to the flashing – doing so stresses the dome at the contact points and may cause the dome to crack and potentially leak.
➋
Flashing
The flashing is extremely important, as it is responsible for keeping your roof from leaking. Our flashing is constructed of 1100 series, seamless pure grade aluminum, and its round shape minimizes damage to roofing shingles and enables it to withstand the stresses of expansion and contraction due to the temperature variations. Many of our competitors use lower grade galvanized materials with tack welded or rolled seams. Our unique forward sloping flashing design limits the use of light robbing elbows. Our flashings are available for pitched and flat roofs as well as for curb mount installations. Read more.
➌
Highly Reflective Light Pipe
Our Miro-Silver® light pipe is one of the best performing in the industry with 98% reflectivity. A comprehensive test has shown that our light pipes outperform other light pipes particularly during early morning and late afternoon when useable light is needed the most. Most of the competition use lower grade, thinner gauge or less reflective light pipes. Our light pipe is assembled on-site with three securing methods ensuring a tight, dust free seal. Angle adapters with the same high reflective interior are also available. Read more.
➍

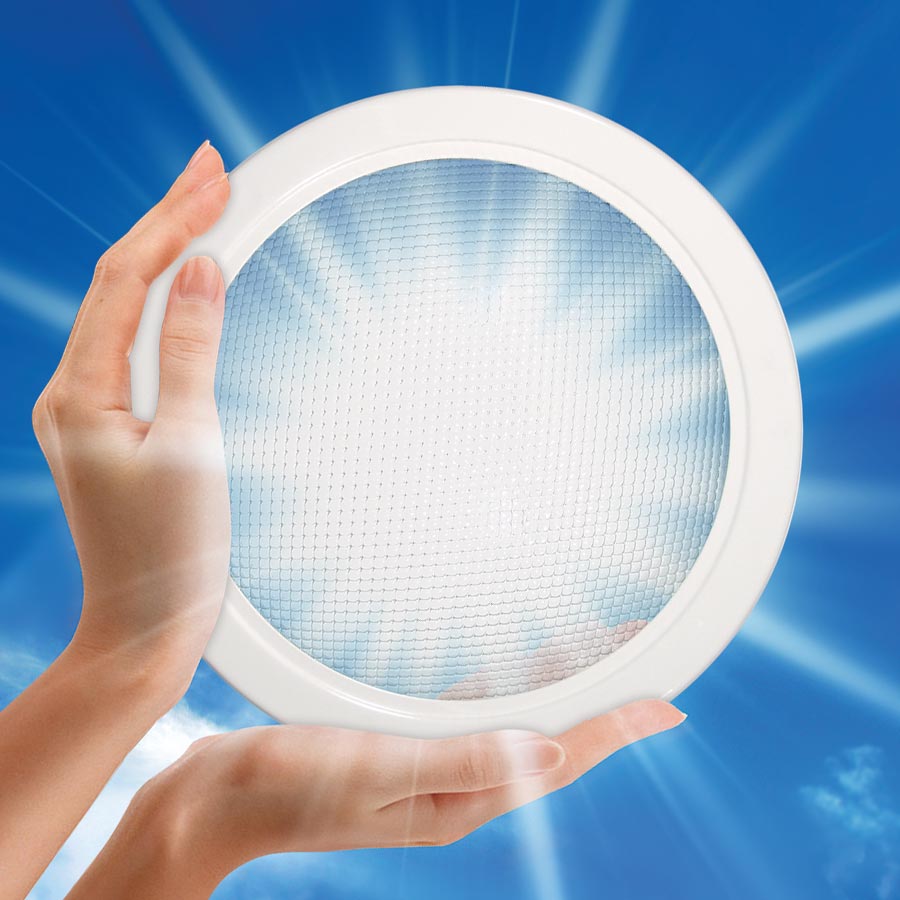

Decorative Trim Ring and Diffuser
The trim ring and diffuser assembly are the only piece in the entire kit that the homeowner sees on a daily basis. Our trim ring is constructed of seamless aluminum and is powder coated white. It's easily removed for cleaning, yet provides a tight seal to minimize heat gain or loss. Constructed of durable acrylic, our standard diffuser is designed with a small arc that provides even light distribution without spotlight effects. We also offer flat and soft white diffuser options. Read more.

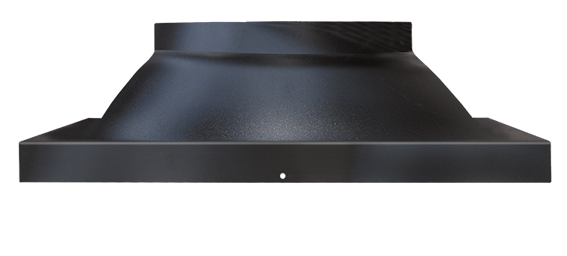

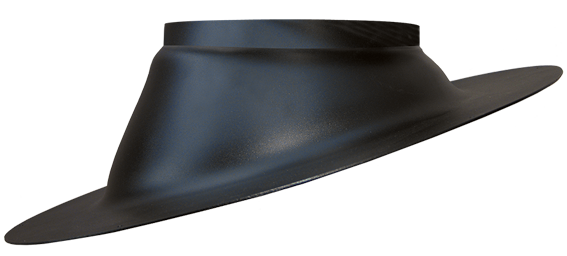

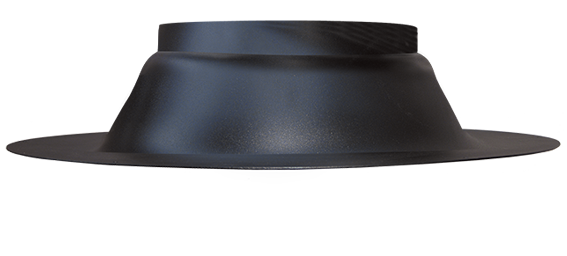

Choose from 3 Roof Mounting Options
Kennedy manufactures different flashings to accomodate all roof types
Ceiling Trim Ring with Diffuser

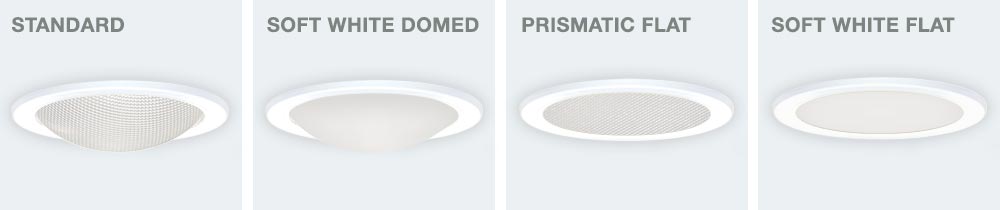

The white powder coated seamless aluminum trim ring is used with all sheetrock ceiling installations. Our light diffusers are manufactured using durable acrylic that will not yellow overtime. The prismatic domed diffuser is standard and comes with the kit. It provides even light distribution without spotlight effects. Kennedy also offers the choice of a flat prismatic or soft white in either a flat or dome shape diffusers.
Prismatic refers to the pattern of prism-like shapes that disperse light into a spectrum and distribute the light evenly over a larger area eliminating spotlight effects. Our Soft White diffusers softens the incoming light and lessens harsh shadows.
The Light Pipe Miro-Silver® Advantage
The key component of the Kennedy Tubular Skylight is a super reflective, mirror-like light pipe with a 98% reflectivity rate. The entire length of the pipe's interior is coated with this reflective material called Miro-Silver®. Many other tubular skylights use a much thinner, less reflective material called Multi-layer Polymeric Film (MPF).

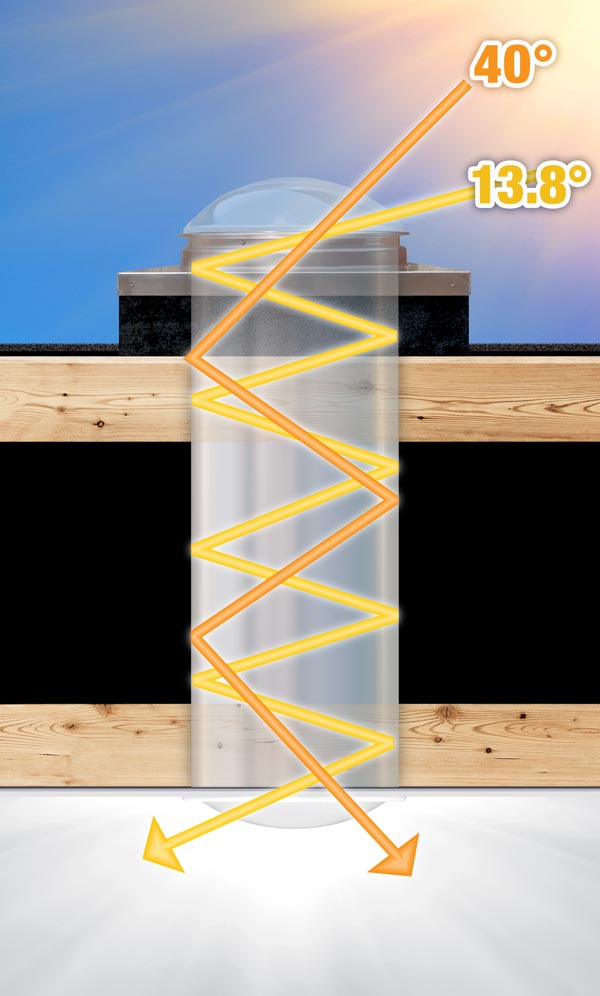

A series of tests were conducted comparing the Miro-Silver light pipe to the more standard Multi-layer Polymeric Film (MPF). The test's purpose was to measure the amount of light reflected at different times of the day - particularly when the sun's angle is low and light is really needed (early morning and late afternoon). Light reflection measurements were taken with the sun's angle at 13.8° and 40° on a 10 foot long x 12" diameter tube. The test results show that Kennedy's Miro-Silver light pipes transmit much more light between 13.8° and 40° than the standard Multi-layer Polymeric Film.
| Sun's Angle | Total Reflection | Amount of Reflections | Miro-Silver Advantage |
|---|---|---|---|
| 13.8° | 98.16% | 40 | +78% |
| 40° | 98.22% | 11 | +17% |
Output Chart
How Bright Is the Light From A Tubular Skylight?
Kennedy Tubular Skylights illuminate the equivalent of up to 300 to 1,450 watts of incandescent lighting varying on the model installed (see chart), but without the heat gain of traditional lighting. Additionally, they filter out 99% of the harmful UV rays that fade furniture and carpeting. And because they operate using free solar power, Kennedy Tubular Skylights are energy efficient and will help reduce your electric bills! The standard kit length is 48". Extension tubes measuring 12" and 24" are available. The extension tubes have the same highly reflective mirror finish. Please note that the maximum amount of light decreases as the light pipe height increases.
K SERIES TUBULAR SKYLIGHT OUTPUT CHART
| Model Size | Coverage Area | Wattage Equivalent | Max Tube Length |
|---|---|---|---|
| 10" Model | up to 150 sf | up to 300 watts | 18 feet |
| 13" Model | up to 300 sf | up to 500 watts | 20 feet |
| 18" Model | up to 500 sf | up to 1,000 watts | 20 feet |
| 21" Model | up to 700 sf | up to 1,450 watts | 20 feet |
Certifications
Hurricane Tested/Approved
Kennedy Tubular Skylights underwent numerous tests by the Hurricane Test Laboratory, Inc. in Riviera Beach, Florida including a missile impact test and successfully passed their tests to earn the “Hurricane Approved” rating (HTL01097).
ICC-ES Listed
Kennedy Tubular Skylights have been tested by professionally licensed civil, structural, fire, mechanical and quality control engineers and is ICC-ES Listed. ICC-ES evaluates building products to determine whether they meet building and other related codes.
FL Building Code Approved
All K Series Tubular Skylights have undergone multiple tests to receive approval from the Florida Building Code set of standards which are much stricter for extreme weather. Our tubular skylights are no match for Florida’s harsh tropical storms. Read more.
Made in USA
Kennedy Tubular Skylights are proudly manufactured in America. We have production facilities in Florida and Arizona. We back up the quality and craftsmanship of our skylights with a 25 year product warranty against manufacturers defects in material and deterioration.
Warranty & Tax Credits
Limited Lifetime Warranty – Best In The Industry!
Kennedy backs up the quality and craftsmanship of our tubular skylight with our industry leading Limited Lifetime Warranty against manufacturers defects in material and deterioration. The warranty is subject to proper installation of the unit in accordance with the written installation instructions. The warranty registration must be completed and submitted to Kennedy in order to receive the warranty benefits. You can register online or download a PDF warranty form to mail or email back to Kennedy.
K Series Tubular Skylight Energy Performance Ratings
U-Factor measures the rate of heat transfer and tells you how well the skylight insulates. U-factor values generally range from 0.20 to 1.25 and are measured in Btu/h ft2 °F. The lower the U-factor, the better the skylight insulates. The U-factor for K Series Kennedy Tubular Skylights is 0.54.
Solar Heat Gain Coefficient (SHGC) measures the fraction of solar energy transmitted and tells you how well the product blocks heat caused by sunlight. SHGC is measured on a scale of 0 to 1; values typically range from 0.20 to 0.80. The lower the SHGC, the less solar heat the skylight transmits. The Solar Heat Gain for K Series Kennedy Tubular Skylights is 0.23.
| U-Factor 0.54 |
Solar Heat Gain 0.23 |
|---|
Register Your Product To Activate Your Warranty
Residential Models Qualify For 30% Federal Tax Credits
Kennedy Tubular Skylights qualify for a 30% federal tax credit in the Solar Energy Systems category under Photovoltaic Systems as defined in the Inflation Reduction Act of 2022. In order to qualify for the tax credits the skylight must be paired with our Solar LED Light Kit.
Claiming Your Tax Credit
To assist with claiming a tax credit, Kennedy has provided a Statement of Certification for homeowners. Please download and complete the form and keep it with your tax records. The Statement of Certification is not required to be filed with the your forms, but income tax regulations require taxpayers to have appropriate documentation to qualify for a tax credit.
Download your Statement of Certification Now
Extremely Durable
Engineered to Withstand All Weather Conditions
The rugged construction of our tubular skylights can easily withstand the harshest weather conditions including hurricanes and tornadoes. Both the dome and skylight flashing have been precision-engineered to combat all weather elements. The dome is made of thick, heavy-duty acrylic that can withstand the impact of flying debris in a storm.
Our flashing is manufactured without seams so that water cannot enter the skylight system. The forward sloping design of the flashing also helps water run off the unit. The flashing is secured to the roof using (8) heavy-gauged screws to hold it in place. The silicone seal around the flashing ensures that it’s water-tight.
Kennedy Skylights Survive Florida Tornado
Three tornadoes ripped through central Florida on February 2, 2007 killing at least 19 people and destroying hundreds of homes. The first tornado hit a retirement community, The Villages. It was a high-end EF-3 tornado with winds exceeding 160 mph. The tornado was no match for our skylights. Several Kennedy skylights had been installed in this community and all withstood the severe weather and sustained no damage!
