Kennedy Glass Skylights
Kennedy manufactures glass skylights in several standard sizes to accommodate all roof types. They are available in either curb or deck mounts with the choice of tempered or high impact glass. Continue reading to see which model is best for your needs.
Choosing the Right Glass Skylight for your Home
Skylights are a popular home upgrade - they add warm, bright natural light to interior spaces while reducing the use of artificial light. Our glass skylights are the best in their class with hurricane approved models available. Glass skylights can add an architectural impact to any home. Our vented glass skylights have the advantage of allowing fresh air to enter your home. Glass skylights feature insulated, extremely durable glass that will not yellow and can help in soundproofing neighborhood noise.
Kennedy glass skylights come in several sizes, configurations and 2 mounting types: curb mount or deck mount. Curb mounted skylights install over a pre-built box. An advantage to installing a curb mount unit is that the skylight can be replaced without the need of re-flashing as long as the curb is in good condition. Deck mounted skylights have a lower profile because there’s no curb underneath. They are considered more energy efficient because they sit closer to the roof. Take the time to plan out the design of your skylight including the unit size, to add the most architectural impact to your home. Cosmetic upgrades add equity to your home as well as making spaces brighter and appear more spacious.
Glass Skylight Key Features
Our superior performing glass skylights are available in several models to accommodate all roof material and slopes. We offer 2 glazing options and 10 model sizes.
3 Model Categories to Choose From
- Self-Flashing Fixed Glass (SFG) - 2", 4" or 6" high curbs available
- Self-Flashing Vented Glass (SFVG) - 4" high curb
- Curb Mount - standard (CMG) or Hurricane Rated (MD-ICMG)
Superior Construction Highlights
- .062 extruded aluminum for extra durability
- Welded corners for added strength and leakproof protection
- Powder coated bronze exterior for additional protection
- Easy-release, continuous hinge secures skylight frame to curb for quick removal and designed to divert water away from skylight
- Includes a full perimeter condensation gutter to prevent water infiltration
- Fits any roof pitch and adapts to most roofing systems

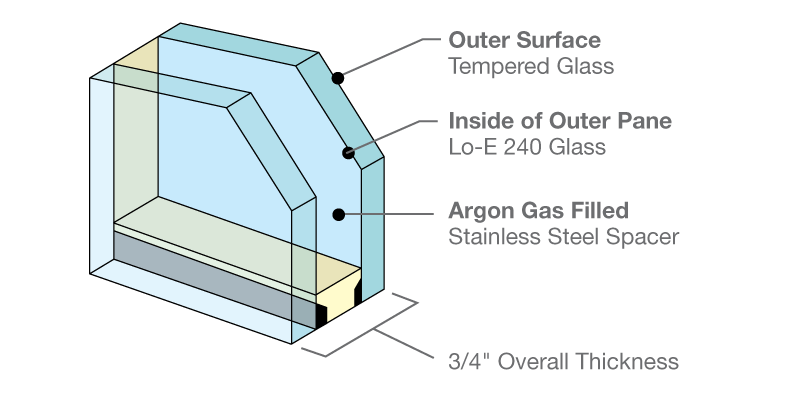

Kennedy LoE-240 Glass

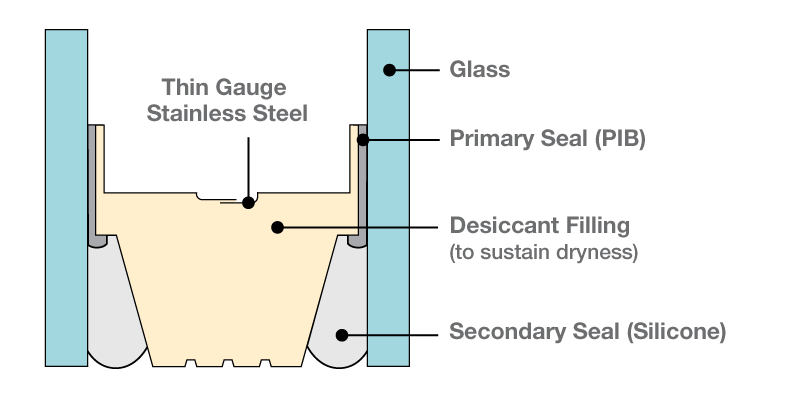

Kennedy Patented Dual-Seal System
Glass Performance
- Features LoE-240 coating with Argon-filled glass
- High performance ratings for light transmission, solar heat gain, U-factor, and fading transmission
- Two glazing options available on all models: Tempered or High Impact
- High Impact glass is a high velocity, hurricane rated glass
- Advanced technology dual-seal silicone system with patented stainless steel spacers
- The success rate of our patented dual-seal system is 99.5% over 20 years based on actual seal failure reporting
Kennedy Glass Outperforms Other Glass Types
Our LoE-240 glass limits the amount of heat gain that enters your home while minimizes fading on carpets and home decor. The U-Factor (how much heat the skylight allows out of the house) is extremely low to ensure you are not losing energy in the winter months.
| Skylight Glass Type | Visible Light Transmission | Solar Heat Gain | Winter U-Factor | Fading Transmission |
|---|---|---|---|---|
| Single, Tint | 68% | .73 | 1.11 | .38 |
| Double, Tint | 62% | .62 | 0.49/0.47 | .32 |
| Double, Tint & LoE | 57% | .56 | 0.35/0.31 | .25 |
| Kennedy Glass | 40% | .25 | 0.30/0.26 | .16 |
Tempered and High Impact Glass
Tempered Glass
Tempered glass undergoes a specific heating process which involves heating the glass and then cooling it very quickly. When the inner portion of the glass cools, the surface and edges become very compressed. This process creates a glass that if it should crack will fracture into very small pieces versus larger glass shards.
High Impact / Hurricane Rated Glass
Impact-resistant glass uses a safety glazing process created by bonding together two panes of glass with a thin clear film. This film holds the glass in place and makes it resistant to impact. If the glass should accidently break, the glass fragments will stick to the plastic film preventing injury.
Certifications
Kennedy non-venting Glass Skylights are certified to meet or exceed performance criteria defined by AAMA/WDMA 1600/IS 2-200. This certification signifies code compliance and encourages manufacturers and suppliers to produce high-quality products.
Kennedy skylights have been certified to meet or exceed the performance criteria defined in ASTM E-1886-99 and ASTM E-1996. In the uniform load structural test, our glass skylights survived wind gusts in excess of 200mph.
All Kennedy Skylights have received approval from the Florida Building Code set of standards. Additionally, the MD-ICMG (Impact Glass Curb Mount) model has been approved for High Velocity Hurricane Zones - Miami-Dade County NOA# 09-0630.09. Learn more.
Kennedy Skylights are proudly manufactured in America. We have production facilities in Florida and Arizona to quickly ship anywhere in the USA and internationally. Kennedy Glass Skylights have a 25-year non-prorated warranty against seal failure.

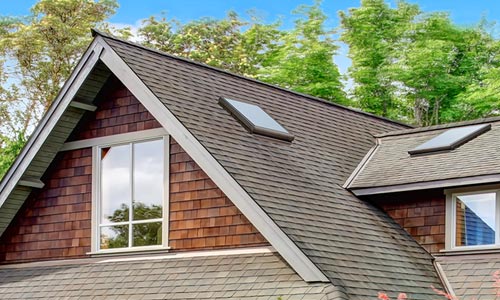

A Glass Skylight for Every Roof
Kennedy manufactures a glass skylight for all roof types and roof slopes for both residential and commercial applications.

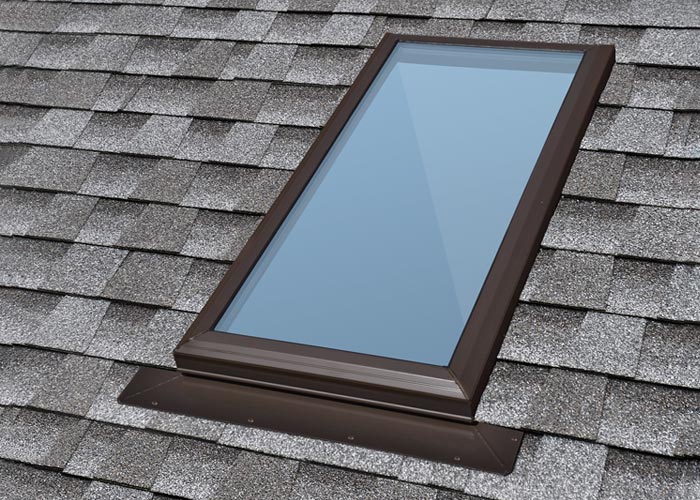

Self-Flashing Fixed Glass
Choose from 2", 4" or 6" high aluminum curb models with an integral pre-drilled flange for easy installation.
Learn More

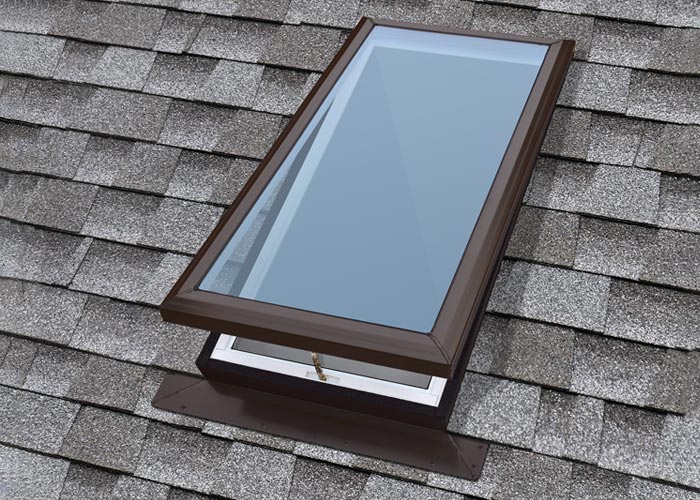

Self-Flashing Vented Glass
Opens up to 8" either manually or with either an electric or solar controller. Available in 4" curb with tempered glass.
Learn More

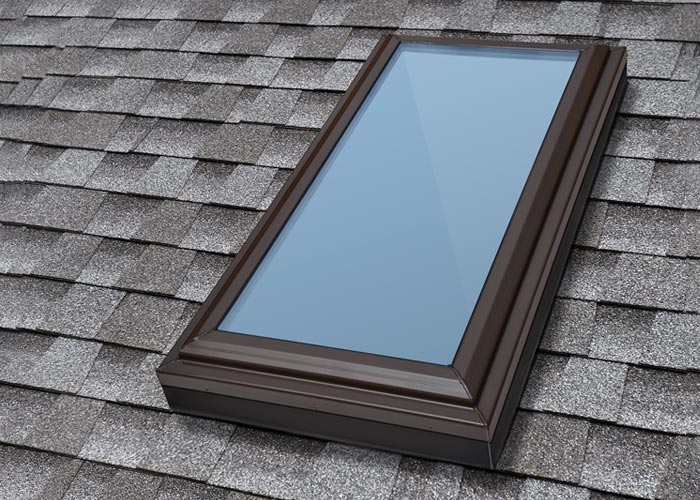

Curb Mount Glass
Mounts on existing curb or Kennedy AC or ACW curbs. Choose from tempered or high impact glass.
Learn More
Skylight Accessories
Kennedy offers a few optional accessories for the Vented Glass Skylight to assist with opening and closing the unit.
Learn MoreGlass Skylight Installation
Installation procedures will vary depending on the model and roof type. Please follow the detailed instructions for your type of install.

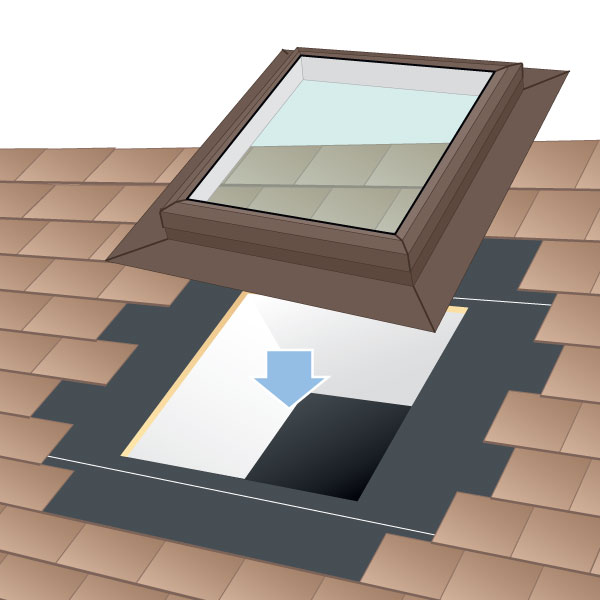

Self-Flashing Deck Mount
Skylight is attached to roof using sealant and 1 5/8" screws. Shingles cover the side and high end of the flashing. Headers must be installed based on the opening size and rafter pattern. A light tunnel must also be built on most installations.

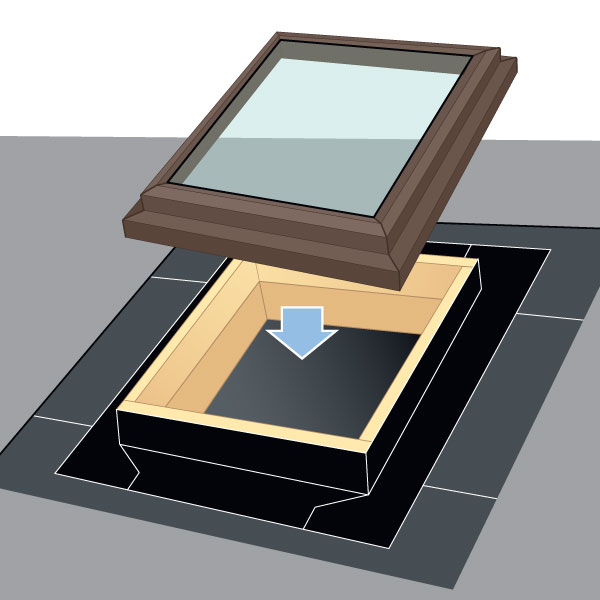

Curb Mount
Curb mount skylights can be used as replacements and simply attached to the existing curb using the pre-drilled holes. For new installs, headers and light tunnels need to be constructed.

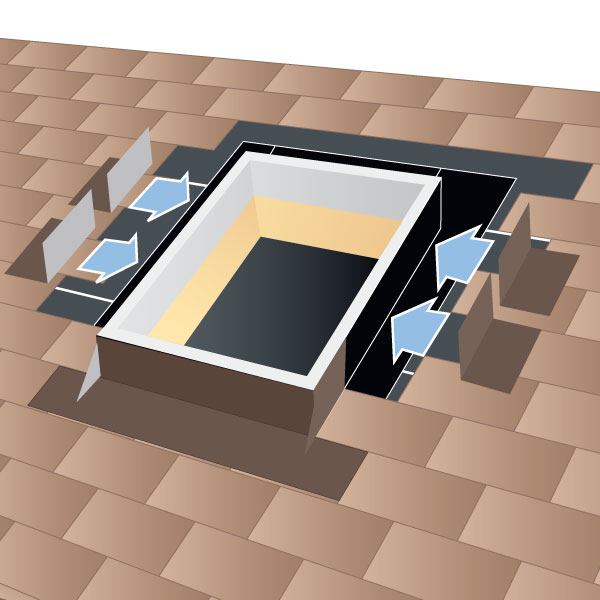

Step-Flashing
Step-flashing is installed on pre-built curbs to insure a leak-free installation. Step-flashing kits with pre-sized flashing sections can speed up the process or they can be custom cut on-site.
