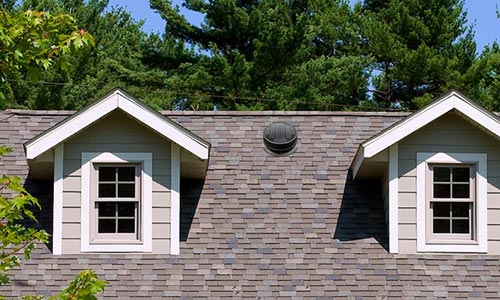

Roof Mount Attic Fan Install on Home Mobile

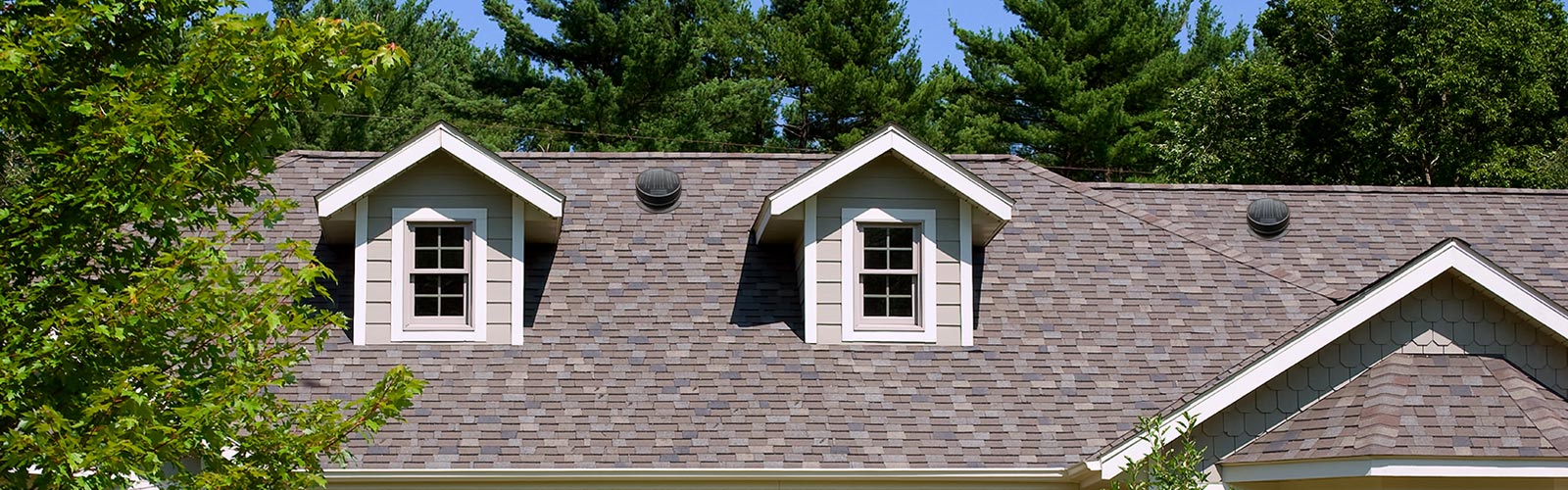

Roof Mount Attic Fan Install on Home

Quality Components

When investing in a product to improve your home and quality of life, you want the assurance it’s performing efficiently and effectively. Kennedy Solar Attic Fans combines precision designed components with advanced engineering to produce a unit that far surpasses industry standards. We're so confident in our solar attic fans that we offer a limited lifetime product warranty!

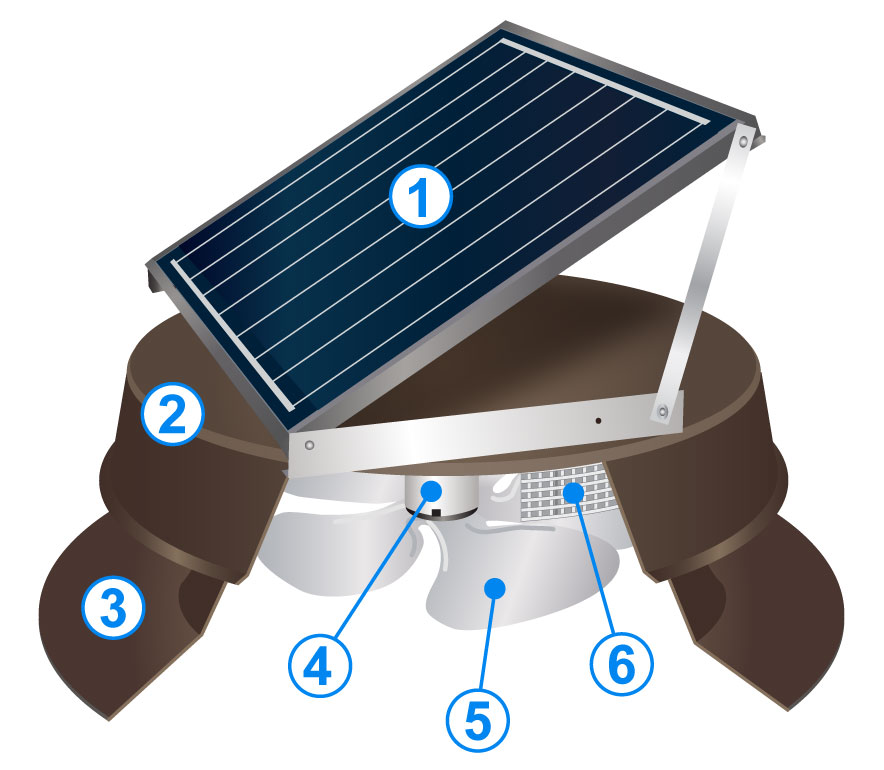

solar attic fan cutaway illustration

PERC Cell Solar Panel

Kennedy Solar Attic Fans use solar panels with PERC (Passivated Emitter Rear Cell) technology which greatly improves solar cell efficiency. PERC panels have 2 additional layers to capture more photons/light at the rear of the panel. This results in an increased capture rate producing more electricity to power the fan. The panels are available in 4 sizes (32, 35, 48, or 65 wattages). The roof and curb mount adjustable panel models feature a pivoting bracket allowing the panel to be positioned to collect the most sunlight for optimal fan performance. Read more.

Fan Housing

The Kennedy Solar Attic Fan housing is constructed of 1100 series, seamless commercial grade aluminum to prevent leaking. Because it is exposed to the harsh effects of the environment on a daily basis, Kennedy powder-coats the unit both inside and out for extra durability. Many of our competitors either paint only the outside or do not paint the unit at all. Also, many of our competitors use less durable materials to house their attic fans including polypropylene (plastic), sheet metal, or galvanized steel.

Fan Flashing

The flashing is responsible for preventing your roof from leaking. The Kennedy flashing is constructed of seamless, commercial grade aluminum and incorporates an angled throat to facilitate a Venturi or suction effect which increases cfm output and also reduces wear on the motor. Its round shape enables it to withstand the stresses of expansion and contraction due to temperature variations. Many of our competitors use lower-grade galvanized materials or even plastic. The flashing is powder coated inside and out for extra durability. Read more.

Direct Current Motor

The Kennedy Solar Attic Fan utilizes a German engineered direct current motor. It is precision balanced to achieve low motor vibration and low motor noise. Additionally, the motor sits in an isolation bracket to further ensure a smooth, quiet operation. Each motor undergoes individual motor winding testing to ensure consistent motor performance and comes with a limited lifetime warranty.

5-Wing Fan Blade

Kennedy Solar Attic Fans incorporate a five-wing, precision balanced blade for the highest cfm output. The fan blades are manufactured using a non-corrosive aluminum to withstand all weather conditions. Many of our competition offer only 3 or 4 blades and some are even made of plastic.

Animal Screen

The interior of a Kennedy Solar Attic Fan is protected by a stainless steel wire screen mesh. The screen keeps out debris, bugs, birds, and small rodents while allowing the air to freely exit the attic. Some of our competitors use lower-grade mesh such as plastic or steel that rusts over time.

Choose from 3 Roof Mounting Options

Kennedy manufactures different flashings to accomodate all roof types with the choice of adjustable, fixed or remote solar panel models

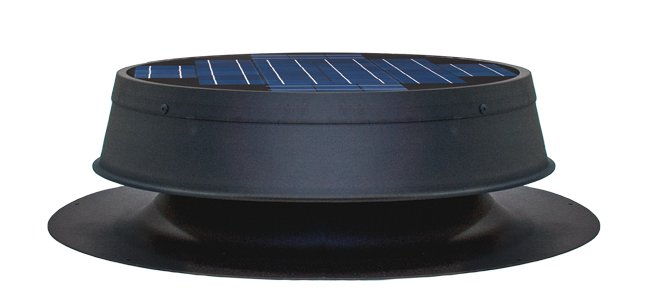

PITCHED & FLAT ROOF

For 0:12 - 12:12 roof slopes

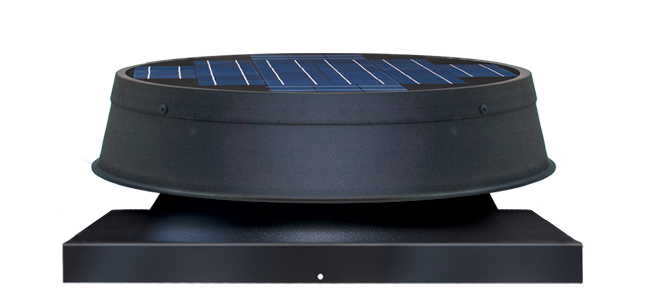

CURB MOUNT FLASHING

Installs over a pre-built curb

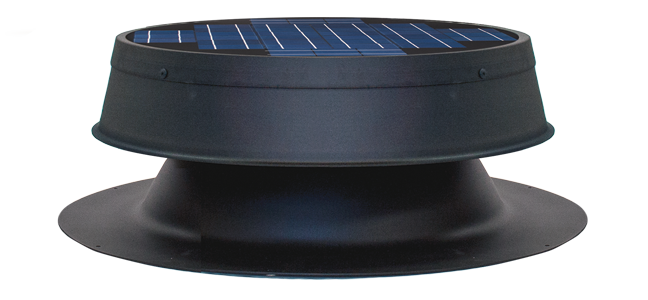

TILE PROFILE FLASHING

Higher housing for thicker tiles

Venting Capacity

Kennedy Solar Attic Fan Venting Capacity

Several factors can affect the amount of attic ventilation a home needs. Variables such as vaulted ceilings, amount of existing venting (soffit, ridge, gable), attic shape, pitch and obstructions must all be taken into account when calculating the amount of attic venting needed. Your Kennedy Solar Attic Fan distributor will determine the correct size unit or units needed for your specific installation. The output chart reflects the average venting capacity and cfm output for each solar panel size available.

KENNEDY SOLAR ATTIC FAN OUTPUT CHART
Solar Panel Size Venting Capacity CFM Output
32 Watt Model up to 2,200 sf up to 1,560 cfms
35 Watt Model up to 2,400 sf up to 1,599 cfms
48 Watt Model up to 2,825 sf up to 1,881 cfms
65 Watt Model up to 3,350 sf up to 2,105 cfms

CFM refers to cubic feet of air moved per minute. The higher the cfm number, the greater the capacity to move air.

How Many Solar Attic Fans Do I Need?

The chart below should be used as a general guideline for how many Kennedy Solar Attic Fans are needed for residential installations based on square footage and roof pitch. You can also download our Solar Attic Fan Estimator pdf.

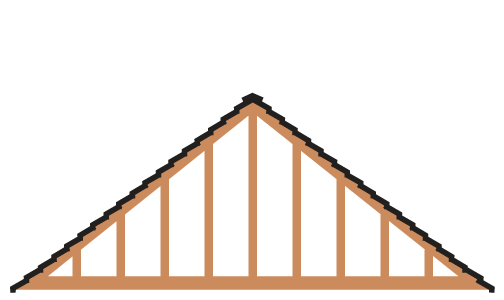

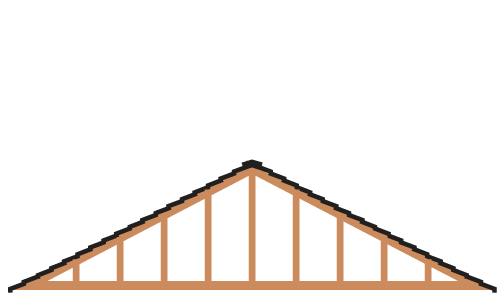

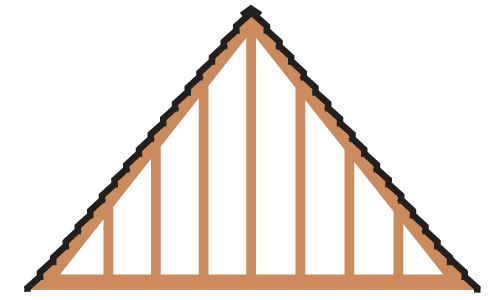

4/12 roof pitch illustration 812 roof pitch illustration 12/12 roof pitch illustration
ROOF PITCH up to 4:12 up to 8:12 up to 12:12
800 SF Attic Size (1) 32 Watt OR
(1) 35 Watt
(1) 32 Watt OR
(1) 35 Watt
(1) 32 Watt OR
(1) 35 Watt
1,260 SF Attic Size (1) 32 Watt OR
(1) 35 Watt
(1) 32 Watt OR
(1) 35 Watt
(1) 32 Watt OR
(1) 35 Watt
1,600 SF Attic Size (1) 32 Watt OR
(1) 35 Watt
(1) 32 Watt OR
(1) 35 Watt
(2) 32 Watt OR
(2) 35 Watt OR
(1) 48 Watt
2,100 SF Attic Size (1) 32 Watt OR
(1) 35 Watt
(2) 32 Watt OR
(2) 35 Watt OR
(1) 48 Watt
(2) 32 Watt OR
(2) 35 Watt OR
(1) 48 Watt
2,400 SF Attic Size (2) 32 Watt OR
(2) 35 Watt OR
(1) 48 Watt
(2) 32 Watt OR
(2) 35 Watt OR
(1) 48 Watt
(2) 48 Watt OR
(1) 65 Watt
3,000 SF Attic Size (2) 32 Watt OR
(2) 35 Watt OR
(1) 65 Watt
(2) 32 Watt OR
(2) 35 Watt OR
(1) 65 Watt
(3) 32 Watt OR
(3) 35 Watt OR
(2) 48 Watt OR
(1) 65 Watt

Warranty & Tax Credits

Limited Lifetime Product Warranty - Best in the Industry

Kennedy backs up the quality and craftsmanship of our solar attic fans with our industry leading Limited Lifetime warranty against manufacturers defects in material and deterioration. The warranty is subject to proper installation of the unit in accordance with the written installation instructions. To receive the warranty benefits, please complete our warranty registration form or download a PDF warranty form to mail or email back to Kennedy.

We are committed to manufacturing quality, environmentally responsible products that provide energy saving for our customers. The innovative design of using the suns energy to vent your attic, makes the solar attic fan extremely energy efficient. Additionally, lowering the temperature of the attic in the summer months can lighten the load of your HVAC system. Because our fans are so energy efficient, they qualify for tax credits. Simply, adding a solar attic fan can cut your energy costs saving you money while protecting the environment!

Residential Models Qualify For Solar Tax Credits

Kennedy Solar Attic Fans are so energy efficient that they qualify for a 30% Federal Tax Credit in the Solar Energy Systems category under Photovoltaic Systems as defined in the Inflation Reduction Act of 2022. In order to qualify for tax credits, the solar attic fan must have been properly installed meeting all applicable building, electrical and fire codes. Residential models may also qualify for local and state solar and utility credits.

Claiming Your Tax Credit

To assist with claiming a tax credit, Kennedy has provided a Statement of Certification for homeowners. Please download and complete the form and keep it with your tax records. The Statement of Certification is not required to be filed with the your forms, but income tax regulations require taxpayers to have appropriate documentation to qualify for a tax credit.

Adjustable Solar Panel Models

The adjustable panel roof and curb mount models are designed with a unique pivoting mounting bracket that allows the solar panel to be positioned in the angle where it will collect the most sunlight for optimal fan performance. This adjustable solar panel bracket system maximizes the sun exposure on the solar panel to accommodate all roof slopes. We also mount the solar panel in a raised position to reduce heat build-up and provide increased air circulation around the panel for better performance.

Solar Panels Can be Adjusted to the Optimal Sun Angle for Peak Performance

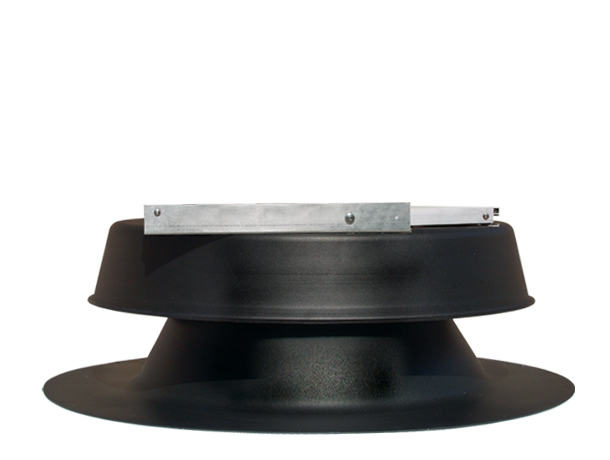

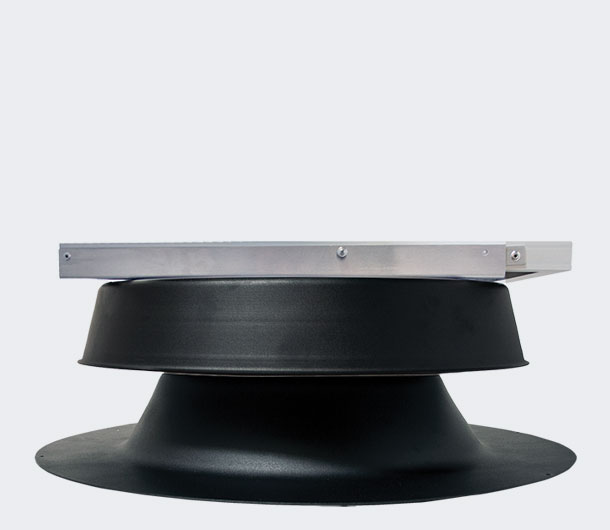

saf panel low angle

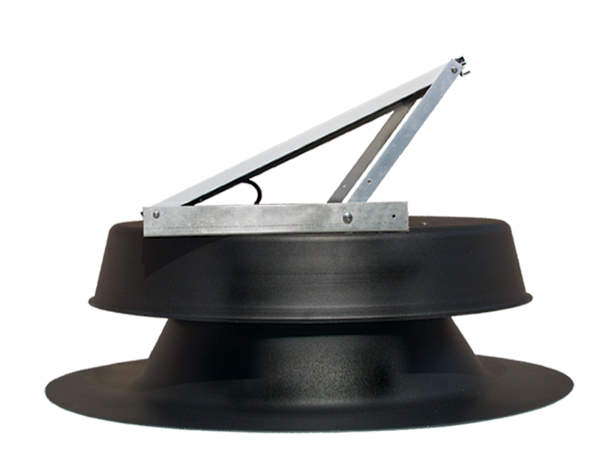

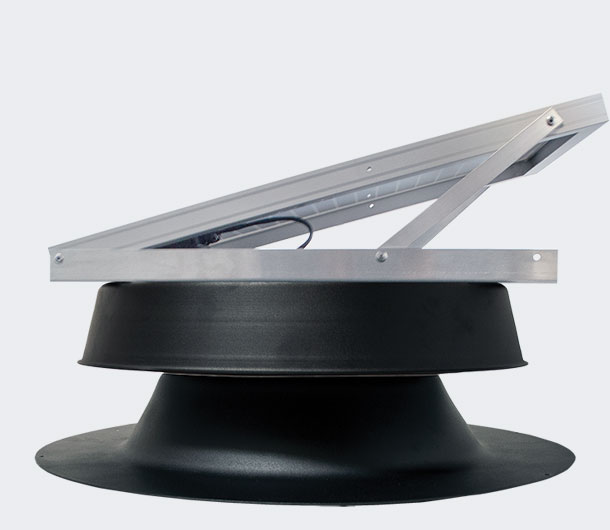

saf panel medium angle

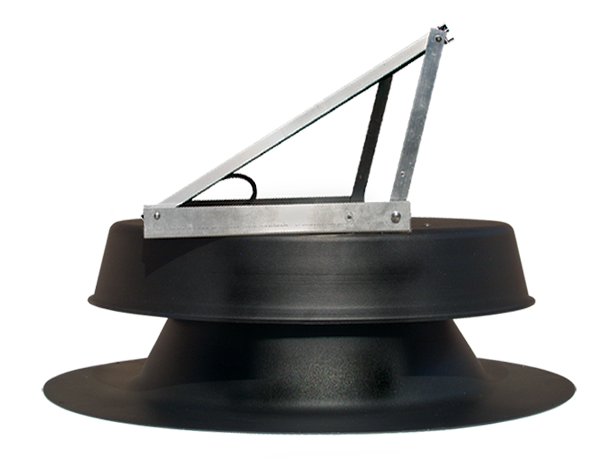

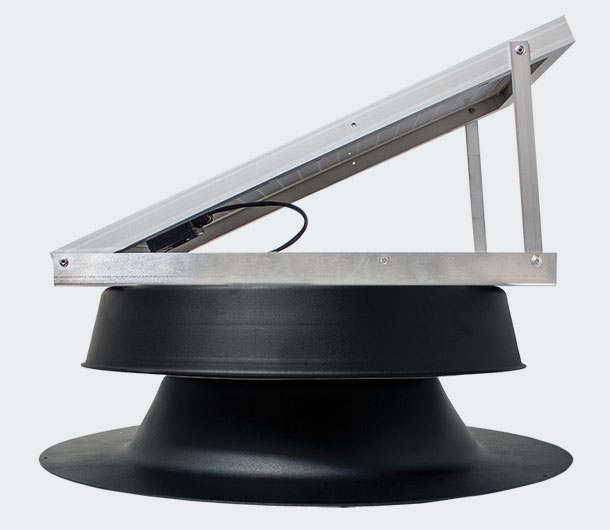

saf panel steep angle
adjustable panel logo

Extremely Durable

Kennedy Solar Attic Fans are Designed to Withstand the Harshest Weather Conditions

The Kennedy Solar Attic Fan was designed to be extremely durable. The fans flashing and housing are constructed using heavy-duty aluminum to protect it from harsh weather conditions. Our high impact solar panels withstand the pounding of hailstorms and high wind speeds. The round design of the attic fan also helps water and melting snow run off the unit. The unit is secured to the roof using (8) heavy-gauged screws to hold it in place. Adding a silicone seal around the flashing ensures that the unit is watertight.

In 2007, our solar attic fans survived the tornadoes that ripped through central Florida. The high-end EF-3 tornado with winds exceeding 160 mph killed at least 19 people and destroying hundreds of homes. The Kennedy attic fans installed in that community withstood the severe weather and remained in working condition!

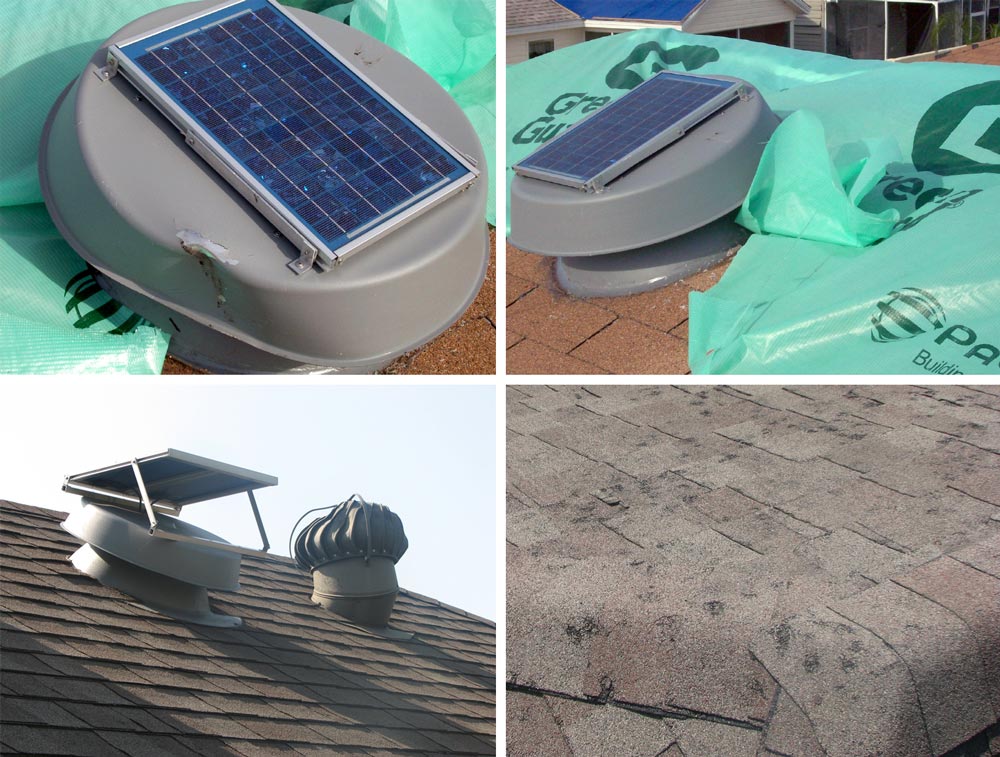

In 2008, a powerful hailstorm with softball and golf ball sized hail hit Texas near Fort Worth. The hail damaged cars and smashed windshields, but the Kennedy Solar Attic Fan survived in perfect working condition. The solar panel sustained no damage or scratches while the housing was only slightly dented (pictured). A roof turbine installed next to it did not fair as well!

Extreme Weather Solar Attic Fans After a Storm
