GARAGE EXHAUST KIT
Garage Exhaust Vent Kit

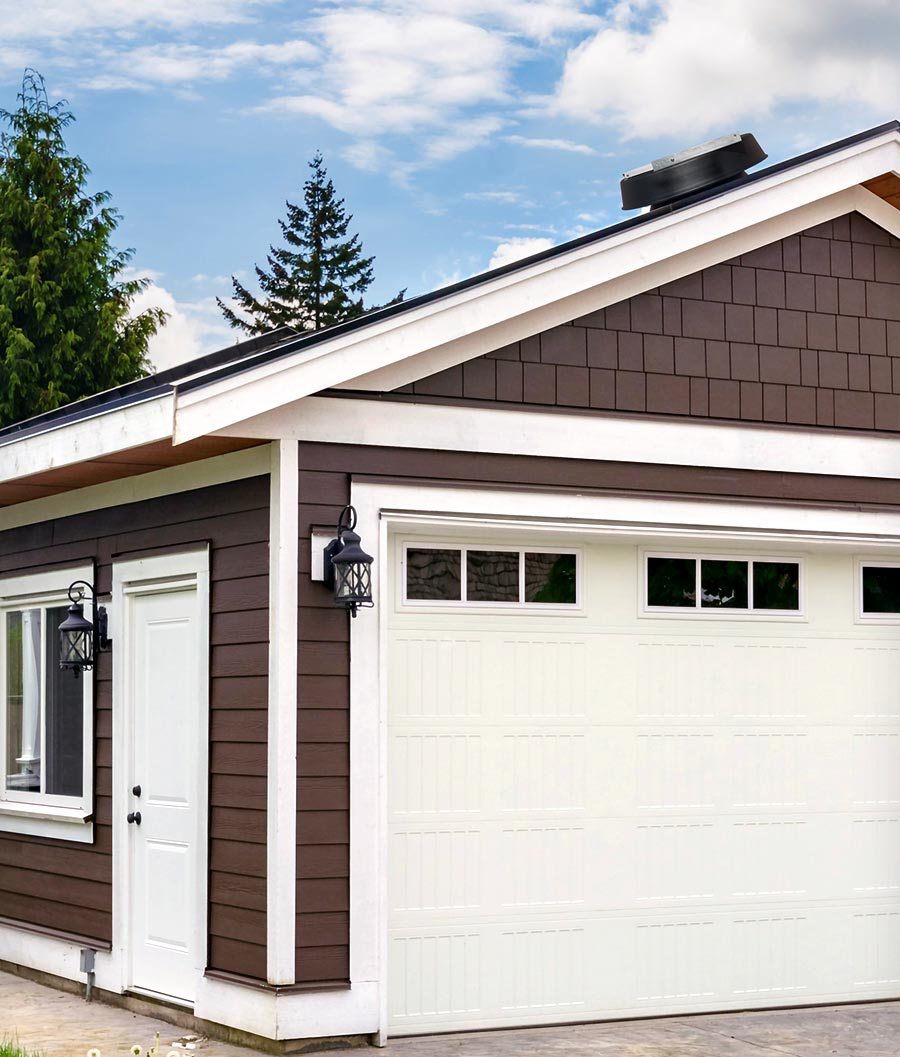

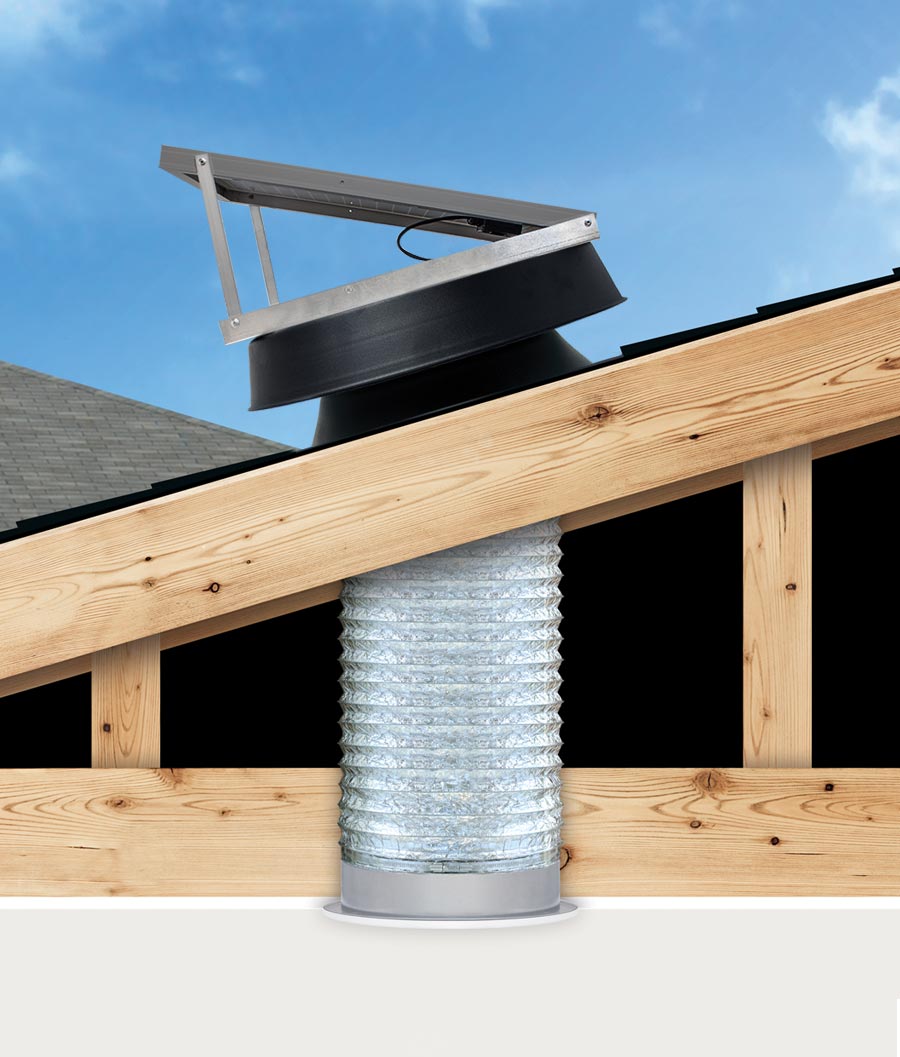

The garage exhaust vent add-on kit converts all Kennedy roof or curb mount units (except the 35 watt tile profile model) into a complete garage venting system. An adapter sleeve is installed to the underside of the fan assembly creating an air tight venting system that pulls hot air out of your garage. The kit features an attractive trim ring that attaches to the garage ceiling.
Save Money with Tax Credits
All solar attic fans installed on residential homes qualify for a 30% federal tax credit.
Industry's Best Warranty
Limited lifetime against manufacturers defects in material and deterioration.
Simple, Hassel-Free Installation
Unit is fully functional out of the box and requires no wiring or structural changes.
Garage Exhaust Vent Kit
converts Solar Attic Fans into a Garage Venting System
Key Features
- Used on residential homes with an attic space above the garage
- Two kits available - Standard or with a Radiation Damper

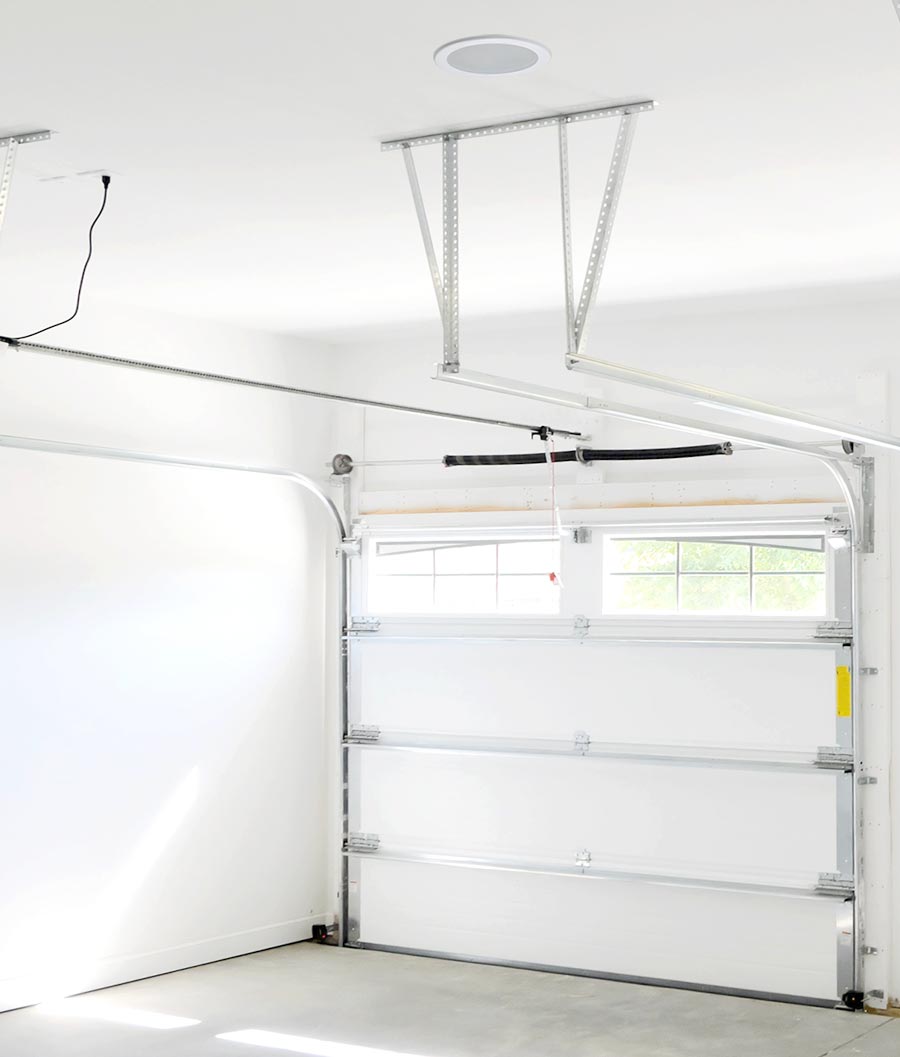

- Aluminum trim ring is easily installed on the garage ceiling
- Kit available for all roof and curb mounted solar attic fans (sold separately)
- Includes everything needed for a quick installation
Kit Includes
- (2) Aluminum Adapter Sleeves - one sleeve connects the duct pipe to the attic fan and the other sleeve connects the duct pipe to the ceiling fixture
- (8) Feet Flexible Duct Pipe - type 5 ETL Listed flexible duct piping

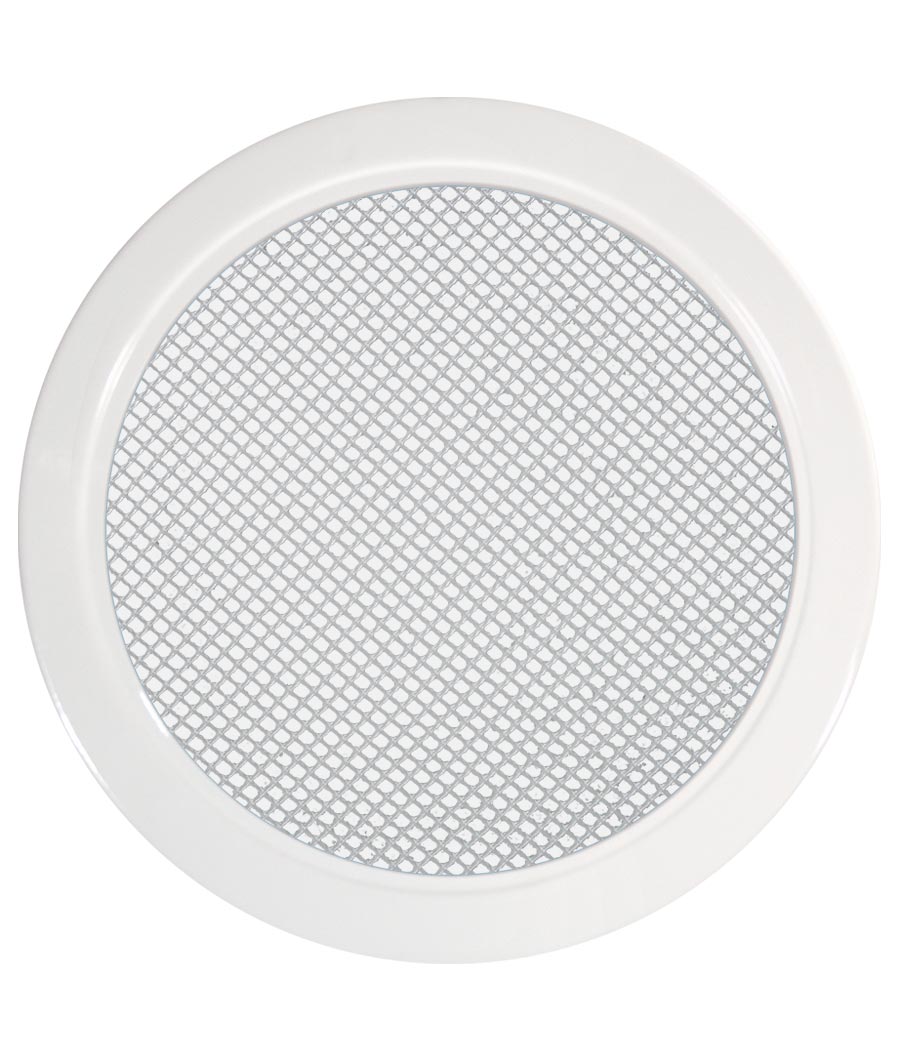

- Trim Ring - powder-coating white ceiling fixture with a specially designed mesh that allows air to move freely throughout the entire garage ventilation system
- Hardware - includes all hardware needed
Vent Kit Warranty
- 5 Year Product Warranty

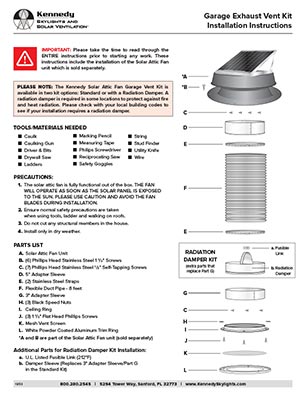

Garage Vent Kit Install
Download

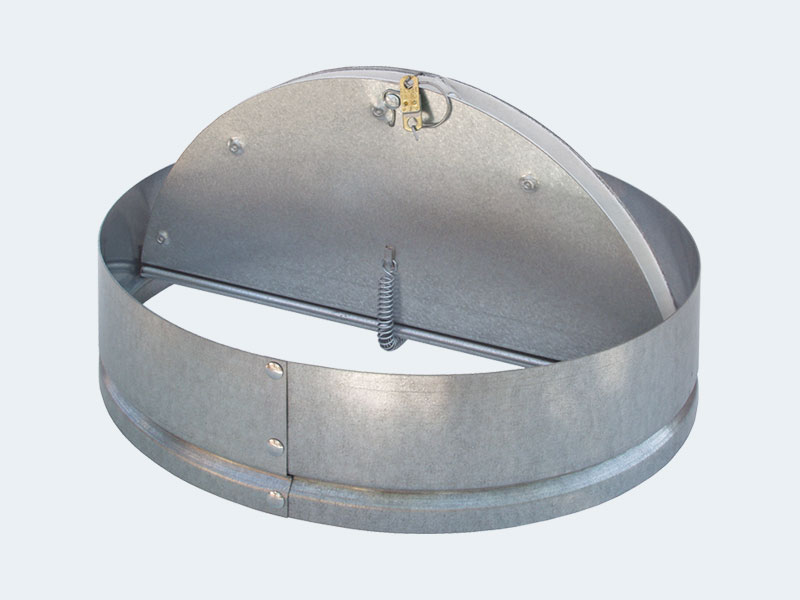

Garage Exhaust Vent Kit with Radiation Damper Sleeve
Kennedy offers a second option for our garage vent kit. This version includes a radiation damper sleeve which replaces the lower adapter sleeve in the standard kit. The radiation damper sleeve is required in some locations to protect against fire and heat radiation (check local building codes). It features a fusible link that melts when the temperature reaches 212° F in order to disable the fan during a fire.
5-Year Product Warranty Part: #GarageVentW/D
