Self-Flashing Polycarbonate Skylights
Kennedy manufactures several types of self-flashing polycarbonate skylights in 11 standard sizes including a hurricane rated model to accommodate all roofing systems.
SF Self-Flashing
View SkylightSFA Styrofoam Interior
View SkylightSFAW White Wood Interior
View SkylightMD-HSFAW Hurricane Rated
View Skylight
Proudly Made in America
Kennedy glass and polycarbonate skylights are manufactured in America.
10-Year Warranty
Limited warranty against against defects in workmanship and materials.
Florida Building Code Approved
Kennedy skylights meet Florida's rigorous requirements of the Florida Building Code.

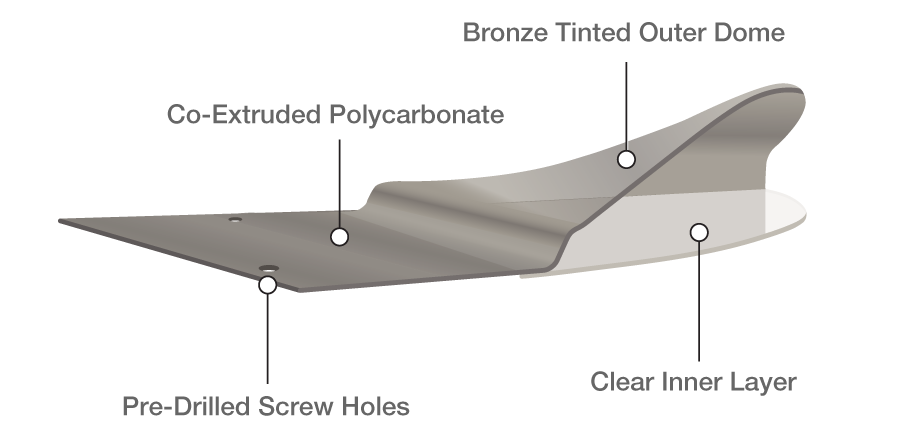

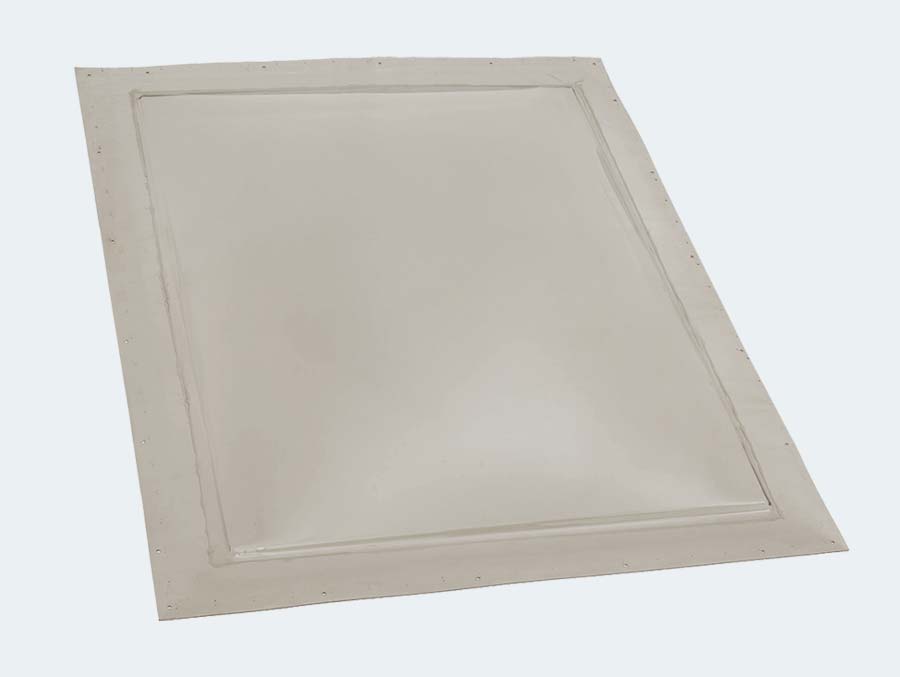

SF Self-Flashing Polycarbonate Skylight
The SF skylight mounts between the shingles and roof decking - no curb required
Co-Extruded Polycarbonate
Highly impact resistant - virtually unbreakable. 30x more impact resistant than acrylic and 250x impact resistant more than glass.
Two Layer Construction
Low profile bronze tinted outer layer and clear inner panel.
Pre-drilled
Seamless polycarbonate flange includes pre-drilled screw holes for easy installation.
SF Skylight Key Features
- Mounts between shingles and roof decking
- 4" predrilled integral nailing flange for easy, leakproof installation
- Sized to fit standard US truss and rafter framing
- Low profile co-extruded polycarbonate - 80% less yellowing than non-co-extruded
- Bronze tinted outer dome with clear inner panel
- Resists temperature extremes from -60°F to +250°F
- High clarity and light transmission and blocks harmful UV radiation
- 30-times more impact resistant than acrylic skylights
Certifications and Warranty
- Meets the stringent requirements of the Florida Building Code (#15592)
- Class V2 Fire Rated and NAMI Participant (Quality Assurance Program)
- 10-Year limited warranty against defects in workmanship and materials
 |
 |
 |
 |
 |
|
| Model Number | 1414SF | 1422SF | 1430SF | 1446SF | 2222SF |
| Rough Opening |
14.5" x 14.5" | 14.5" x 22.5" | 14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" |
| Outside Flange | 22" x 22" | 22" x 30" | 22" x 38" | 22" x 54" | 30" x 30" |
 |
 |
 |
 |
 |
 |
| 2230SF | 2246SF | 2269SF | 3030SF | 3046SF | 4646SF |
| 22.5" x 30.5" | 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 30" x 38" | 30" x 54" | 30" x 77" | 38" x 38" | 38" x 54" | 54" x 54" |

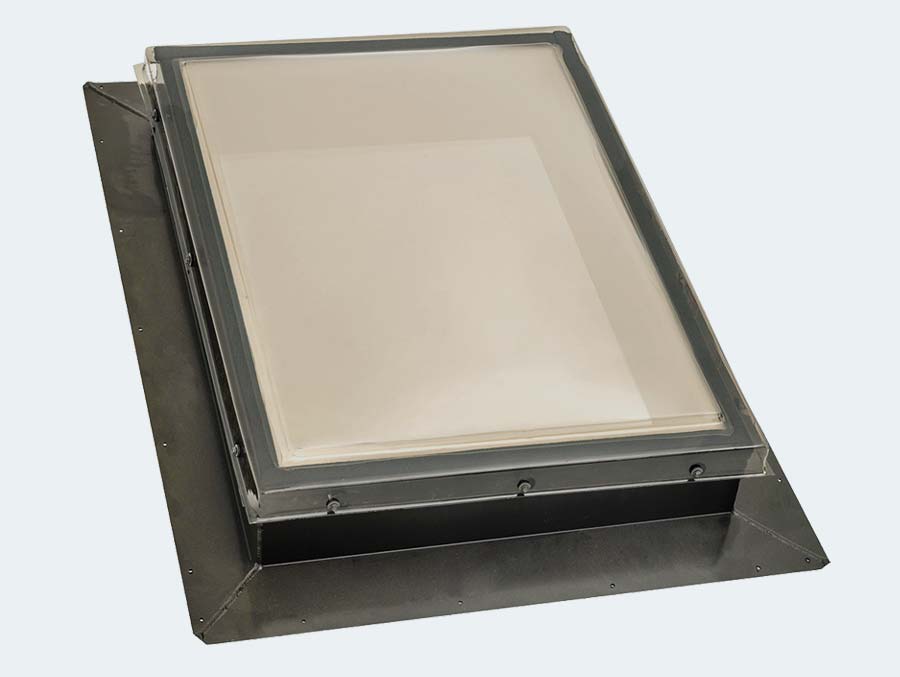

SFA Self-Flashing Aluminum with Styrofoam Liner
The SFA skylight is ideal for new construction
Co-Extruded Polycarbonate
Highly impact resistant with bronze tinted outer layer and clear inner panel. The skylight is attached to an aluminum curb with heavy-duty screws.
Styrofoam Liner
Highly energy-efficient with the choice of 4" or 6" high curb. Foam gasket on top perimeter keeps unit water-tight.
Pre-drilled Flashing
.062" extruded aluminum with welded corners and 4" predrilled flange.
Key Features
- Energy-efficient Styrofoam liner - ideal for new construction
- Choice of 4" or 6" high curb
- Low profile co-extruded polycarbonate - 80% less yellowing than non-co-extruded
- Bronze tinted outer dome with clear inner panel
- .062" extruded aluminum frame with welded corners
- Self-flashing with pre-drilled screw holes for easy, leakproof installation
- Resists temperature extremes from -60°F to +250°F
- 30-times more impact resistant than acrylic skylights
- Sized to fit standard US truss and rafter framing
- High clarity and light transmission and blocks harmful UV radiation
Certifications and Warranty
- Meets the stringent requirements of the Florida Building Code (#15592)
- Class V2 Fire Rated
- 10-Year limited warranty against defects in workmanship and materials
|
|
|
|
|
|
| Model Number | 1414SFA | 1422SFA | 1430SFA | 1446SFA | 2222SFA |
| Rough Opening |
14.5" x 14.5" | 14.5" x 22.5" | 14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" |
| Outside Flange | 25.5" x 25.5" | 25.5" x 33.5" | 25.5" x 41.5" | 25.5" x 57.5" | 33.5" x 33.5" |
|
|
|
|
|
|
| 2230SFA | 2246SFA | 2269SFA | 3030SFA | 3046SFA | 4646SFA |
| 22.5" x 30.5" | 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 33.5" x 41.5" | 33.5" x 57.5" | 33.5" x 80.5" | 41.5" x 41.5" | 41.5" x 57.5" | 57.5" x 57.5" |

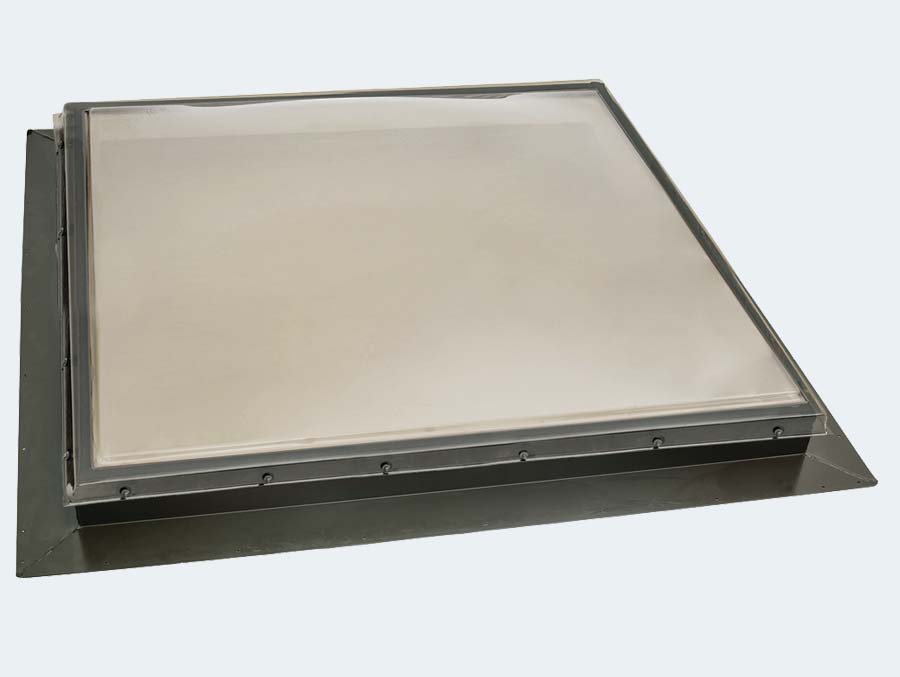

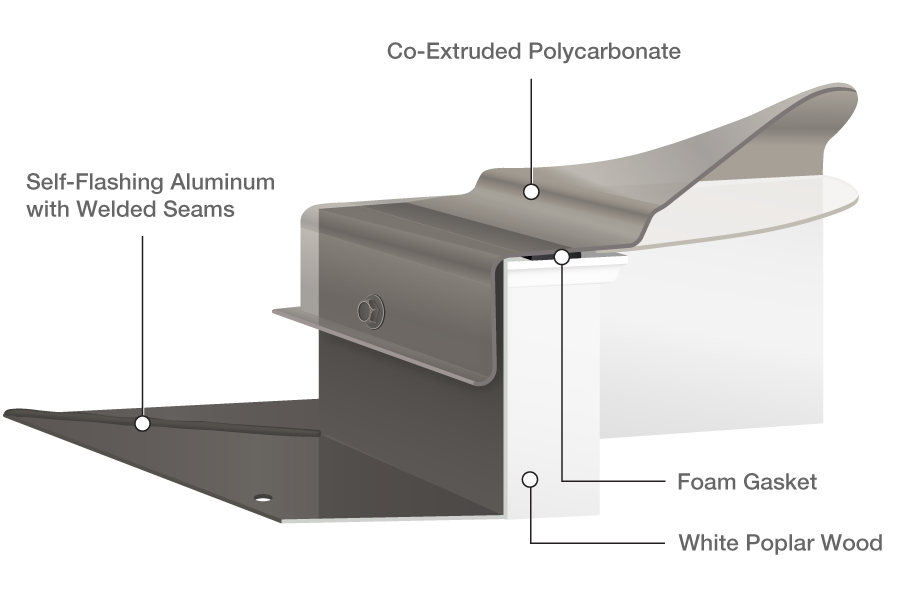

SFAW Self-Flashing Aluminum with White Wood Interior
The SFAW skylight is the perfect choice for re-roofing applications
Co-Extruded Polycarbonate
Highly impact resistant with bronze tinted outer layer and clear inner panel. The skylight is attached to an aluminum curb with heavy-duty screws.
White Wood Interior
Pre-finished white poplar wood curb with the choice of 4" or 6" high curb. Foam gasket on top perimeter keeps unit water-tight.
Pre-drilled Flashing
.062" extruded aluminum with welded corners and 4" predrilled flange.
Key Features
- Pre-finished white wood interior - perfect for re-roofing
- Choice of 4" or 6" high curb
- Low profile co-extruded polycarbonate - 80% less yellowing than non-co-extruded
- Bronze tinted outer dome with clear inner panel
- .062" extruded aluminum frame with welded corners
- Self-flashing with pre-drilled screw holes for easy, leakproof installation
- Resists temperature extremes from -60°F to +250°F
- 30-times more impact resistant than acrylic skylights
- Sized to fit standard US truss and rafter framing
- High clarity and light transmission and blocks harmful UV radiation
Certifications & Warranty
- Meets the stringent requirements of the Florida Building Code (#15592)
- Class V2 Fire Rated
- 10-Year limited warranty against defects in workmanship and materials
|
|
|
|
|
|
| Model Number | 1414SFAW | 1422SFAW | 1430SFAW | 1446SFAW | 2222SFAW |
| Rough Opening |
14.5" x 14.5" | 14.5" x 22.5" | 14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" |
| Outside Flange | 25.5" x 25.5" | 25.5" x 33.5" | 25.5" x 41.5" | 25.5" x 57.5" | 33.5" x 33.5" |
|
|
|
|
|
|
| 2230SFAW | 2246SFAW | 2269SFAW | 3030SFAW | 3046SFAW | 4646SFAW |
| 22.5" x 30.5" | 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 33.5" x 41.5" | 33.5" x 57.5" | 33.5" x 80.5" | 41.5" x 41.5" | 41.5" x 57.5" | 57.5" x 57.5" |

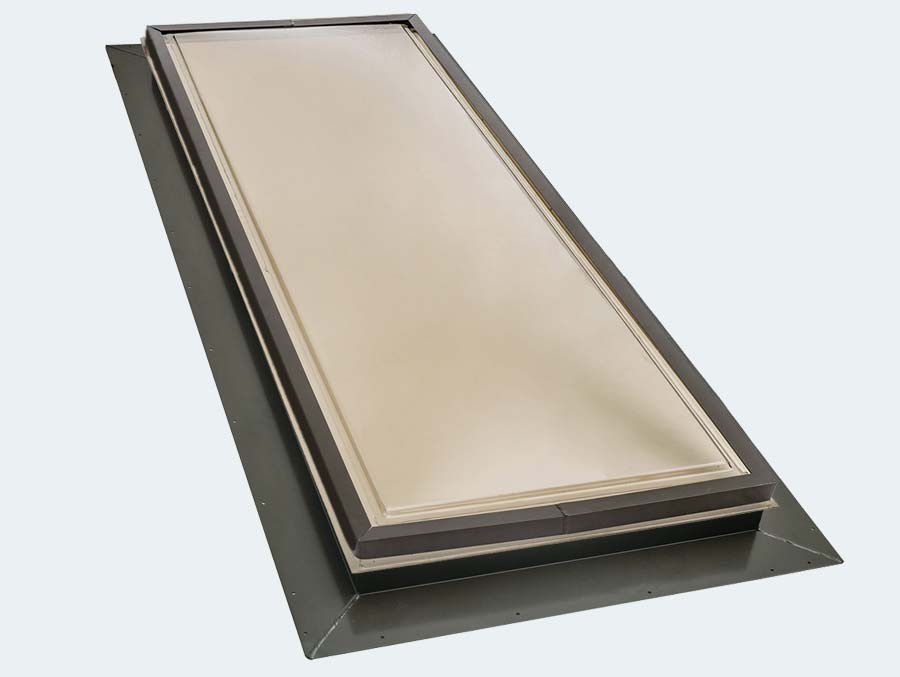

MD-HSFAW Miami-Dade Hurricane Rated Self-Flashing Aluminum with Wood
The MD-HSFAW skylight has undergone rigorous missile impact, wind and water infiltration testing and is Miami-Dade Approved for all hurricane zones.

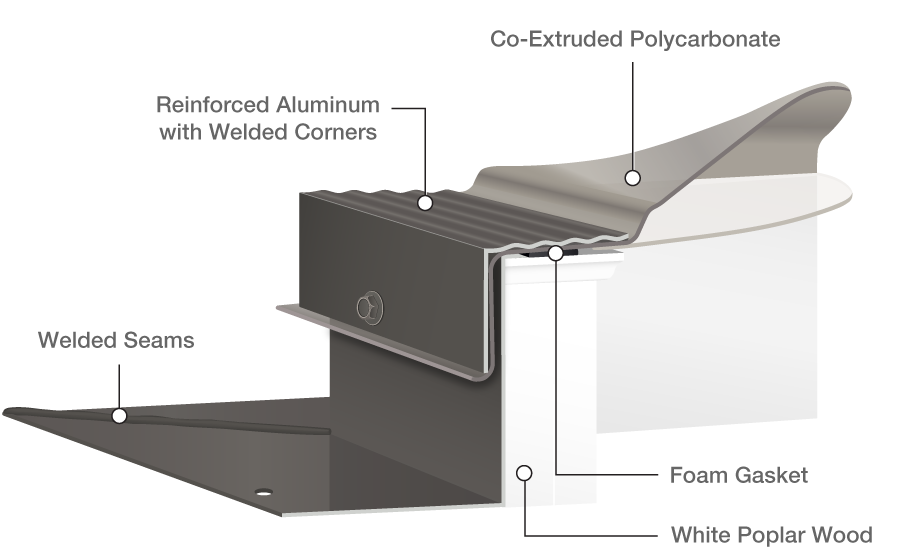

Co-Extruded Polycarbonate
Highly impact resistant with bronze tinted outer layer and clear inner panel sits in a reinforced hurricane grade aluminum frame which is attached to the curb with heavy-duty screws. Frame corners are welded for additional durability.

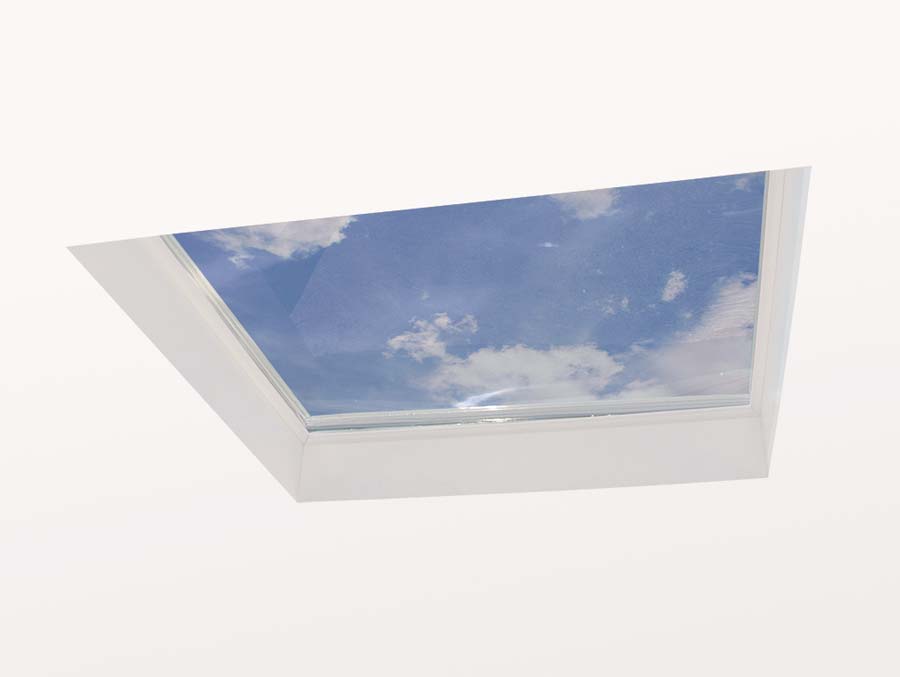

White Wood Interior
Pre-finished white poplar wood curb with the choice of 4" or 6" high curb. Foam gasket on top perimeter keeps unit water-tight.
Pre-drilled Flashing
.062" extruded aluminum with welded corners and 4" predrilled flange.
Officially Certified "Hurricane Approved" by Miami-Dade County
The MD-HSFAW skylight has undergone intense water pressure testing, large missile impact testing and water infiltration testing and has been certified by the Miami-Dade County building codes to be approved for all hurricane and HVHZ wind zones. It features a Design Pressure Rating of +/-60 psf and an Impact Rating of HVHZ - large missile impact. Read more about Miami-Dade NOA.
MD-HSFAW Skylight Key Features
- Rugged, extruded aluminum deco ring frames polycarbonate for extra durability
- Pre-finished white wood interior - perfect for re-roofing
- Choice of 4" or 6" high curb
- .062" extruded aluminum frame with welded corners
- Self-flashing with pre-drilled screw holes for easy, leakproof installation
- Sized to fit standard US truss and rafter framing
Certifications & Warranty
- Certified "Hurricane Approved" by Miami-Dade County Building Code (NOA #25-0718.02)
- Meets the stringent requirements of the Florida Building Code (#15592)
- Class V2 Fire Rated
- 10-Year limited warranty against defects in workmanship and materials
|
|
|
|
|
|
| Model Number | 1414 HSFAW |
1422 HSFAW |
1430 HSFAW |
1446 HSFAW |
2222 HSFAW |
| Rough Opening |
14.5" x 14.5" | 14.5" x 22.5" | 14.5" x 30.5" | 14.5" x 46.5" | 22.5" x 22.5" |
| Outside Flange | 25.5" x 25.5" | 25.5" x 33.5" | 25.5" x 41.5" | 25.5" x 57.5" | 33.5" x 33.5" |
|
|
|
|
|
|
| 2230 HSFAW |
2246 HSFAW |
2269 HSFAW |
3030 HSFAW |
3046 HSFAW |
4646 HSFAW |
| 22.5" x 30.5" | 22.5" x 46.5" | 22.5" x 69.5" | 30.5" x 30.5" | 30.5" x 46.5" | 46.5" x 46.5" |
| 33.5" x 41.5" | 33.5" x 57.5" | 33.5" x 80.5" | 41.5" x 41.5" | 41.5" x 57.5" | 57.5" x 57.5" |
