ROOF MOUNT

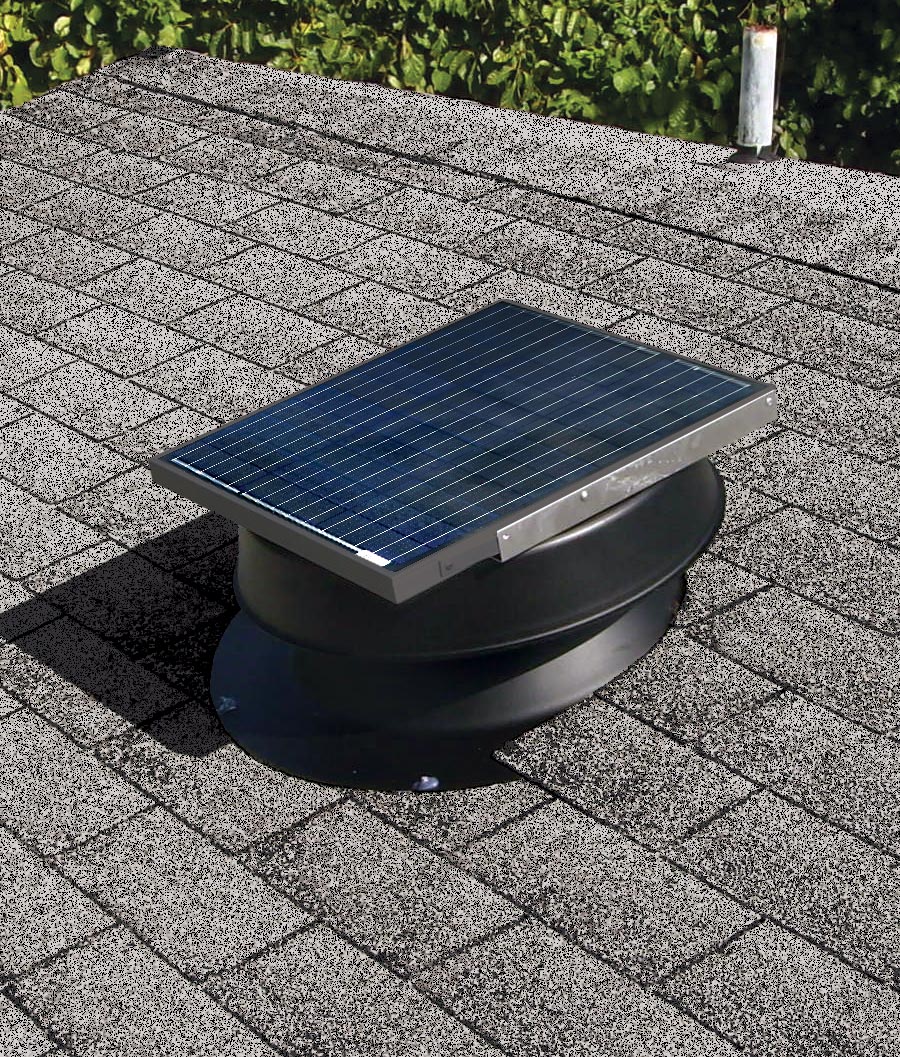

Roof Mount Solar Attic Fans

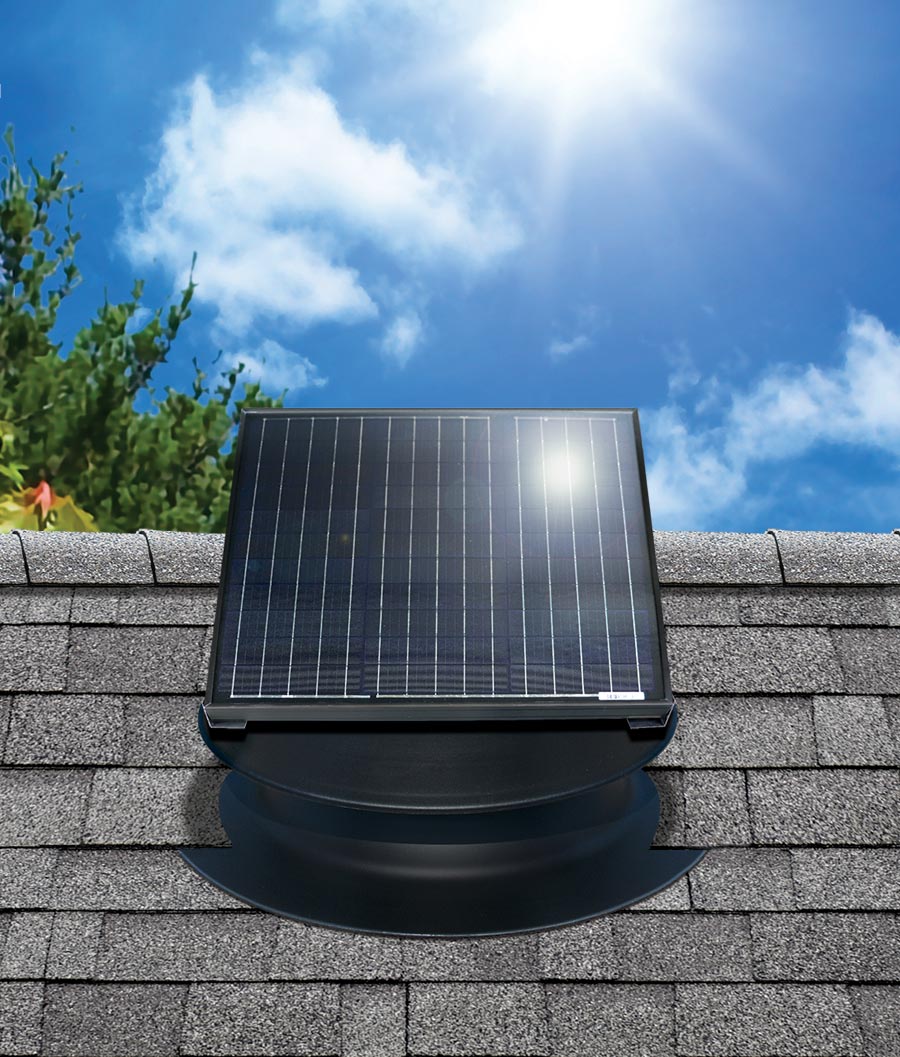

Our roof mounted solar attic fan is our most popular residential model. It installs on most roof types including asphalt shingles, metal, shake and tile roofs and is fully operational right out of the box making installation quick and easy. The unit is available in 4 solar panel sizes: 32, 35, 48 or 65 watts. The main components are the same on all models with the choice of an adjustable, integrated or remotely installed solar panel.
Adjustable & Remote Panel Models
View ModelsFixed Panel Low & Tile Profile Models
View Models
Save Money with Tax Credits
All solar attic fans installed on residential homes qualify for a 30% federal tax credit.
Industry's Best Warranty
Limited lifetime against manufacturers defects in material and deterioration.
Simple, Hassel-Free Installation
Unit is fully functional out of the box and requires no wiring or structural changes.

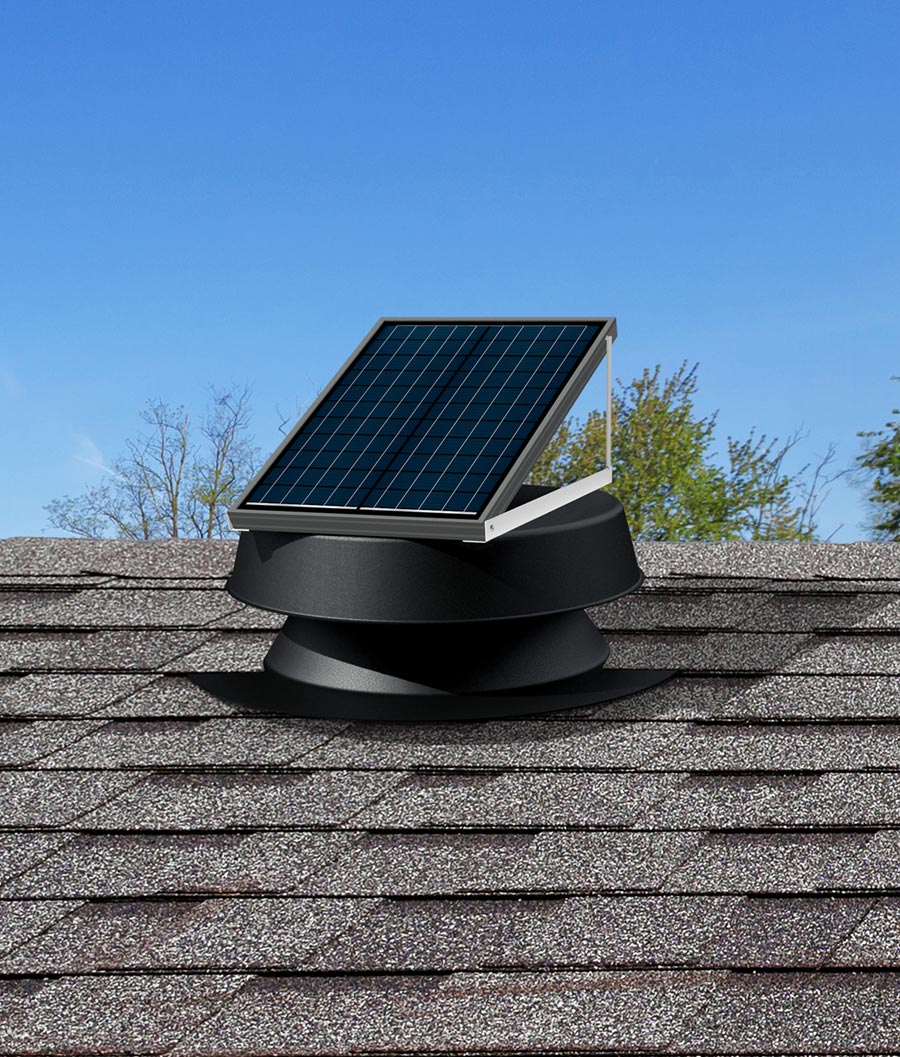

ADJUSTABLE PANEL

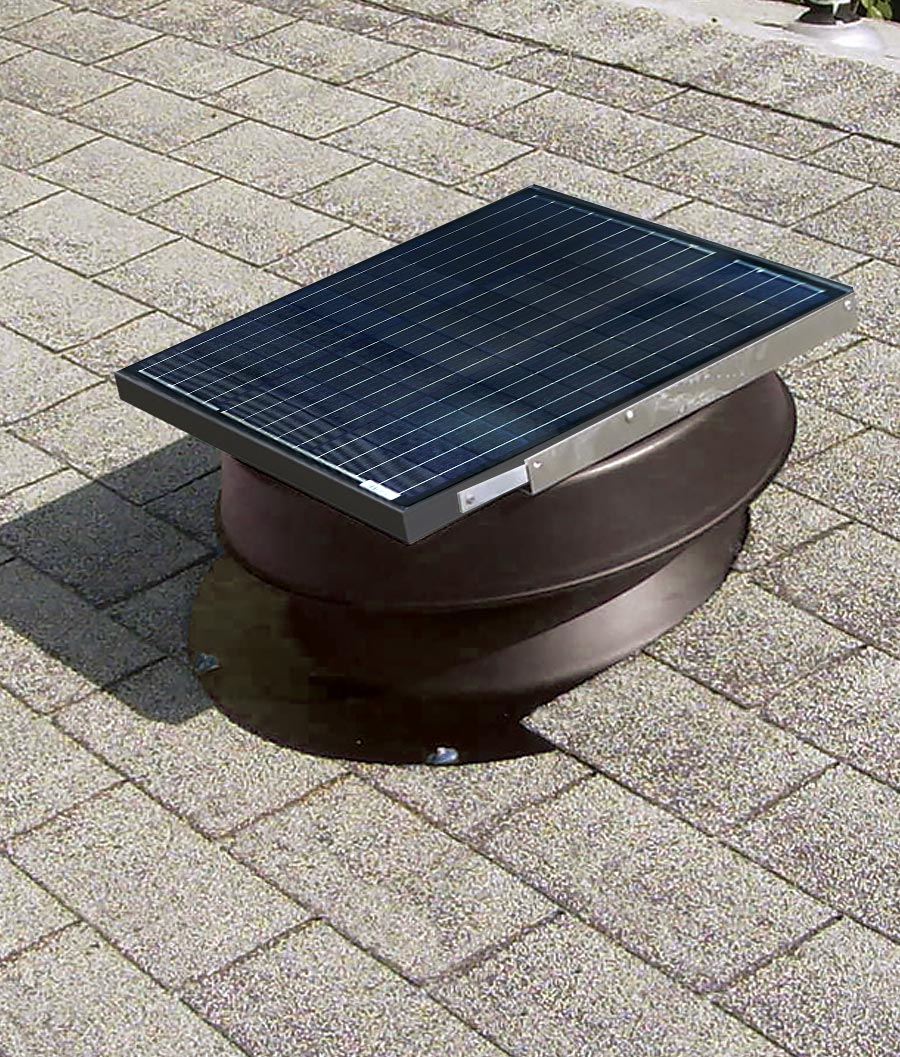

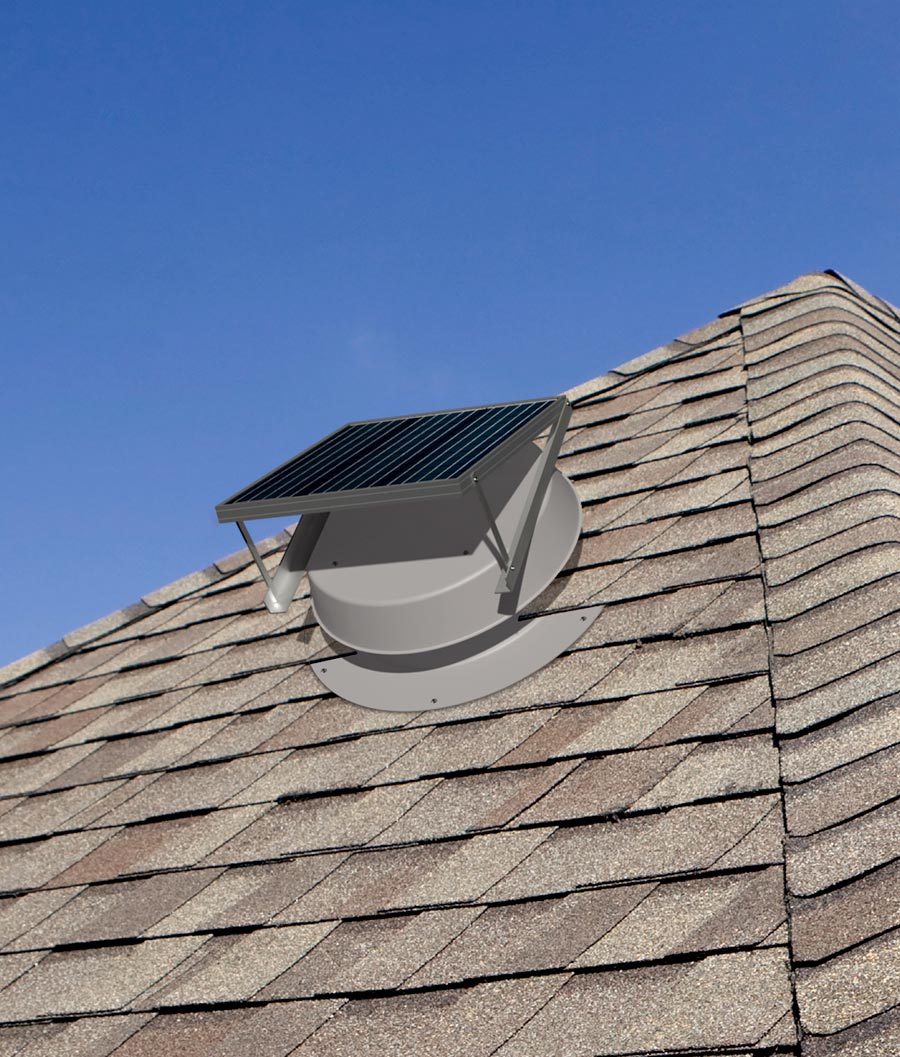

Roof Mounted Solar Attic Fan
for Sloped and Flat Roofs
Key Features
- Installs on all roof types including shingle, wood shake, metal and tile

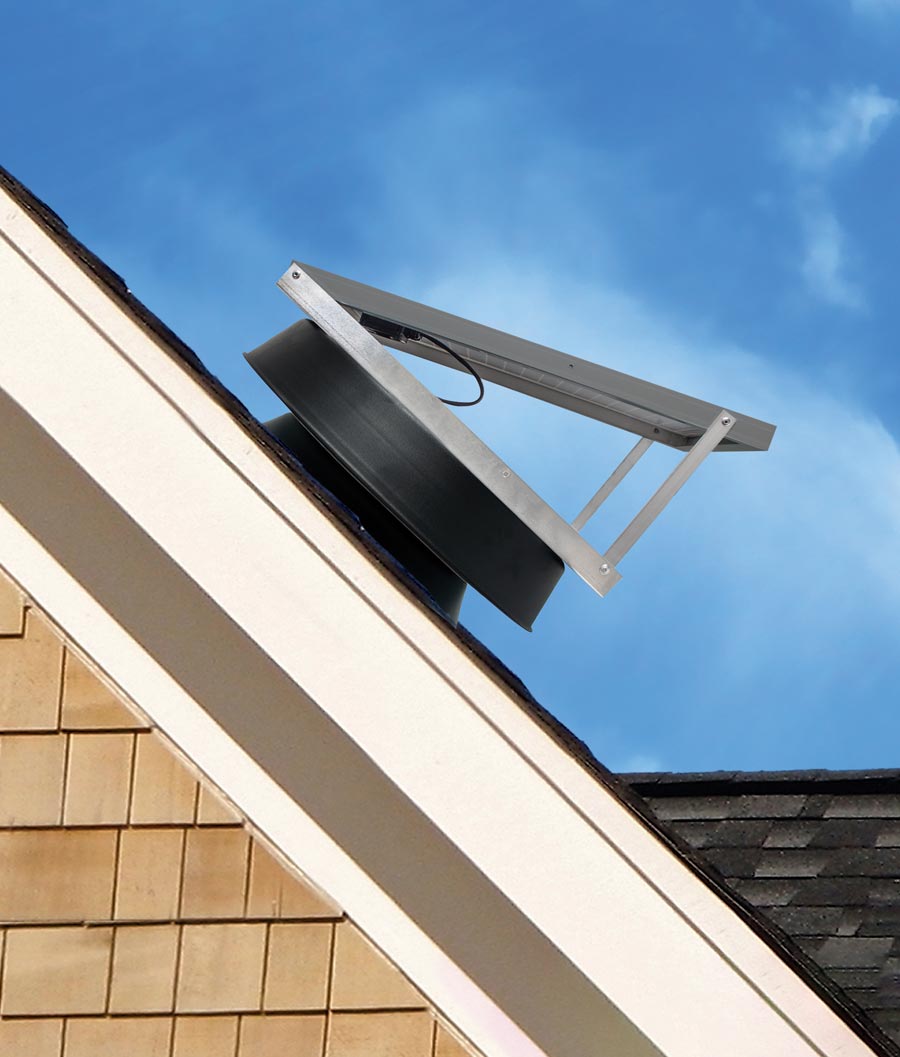

- Features an adjustable solar panel - collects maximum sunlight on all roof slopes
- Remote panel model available - used when ideal fan location is on shady part of roof
- Installs easily - fully functional right out of the box
- Aluminum housing is powdercoated both inside and out to prevent corrosion
- Available in 3 colors: Gloss Bronze, Black Satin or Gray Satin
Manufactured with the Highest Quality Components
- Solar Panel - highly efficient featuring PERC Solar Cells
- Housing - constructed of 1100 series, seamless commercial pure grade aluminum
- Direct Current Motor - sits in an isolation bracket, quiet and long-lasting
- Fan - precision balanced 5-wing fan blade, non-corrosive aluminum
- Animal Screen - stainless steel keeps out debris, bugs, birds and small rodents
Common Applications
- Mostly used on residential homes on either flat or pitched roofs
- Can also be installed on sheds, barns, workshops, garages and lofts
Accessories
- Garage Exhaust Kit with optional Radiation Damper
- Thermal Snap Switch and Fire Safety Switch
- Turret Extension and Tile Flashing Skirt for tile installations
Adjustable & Remote Panel Models

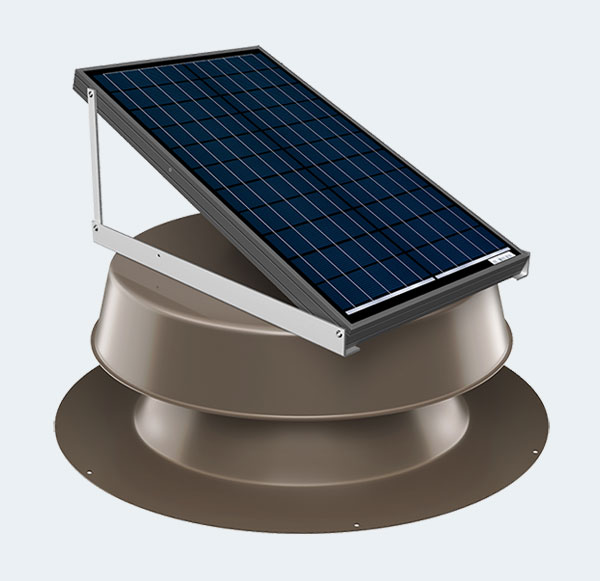

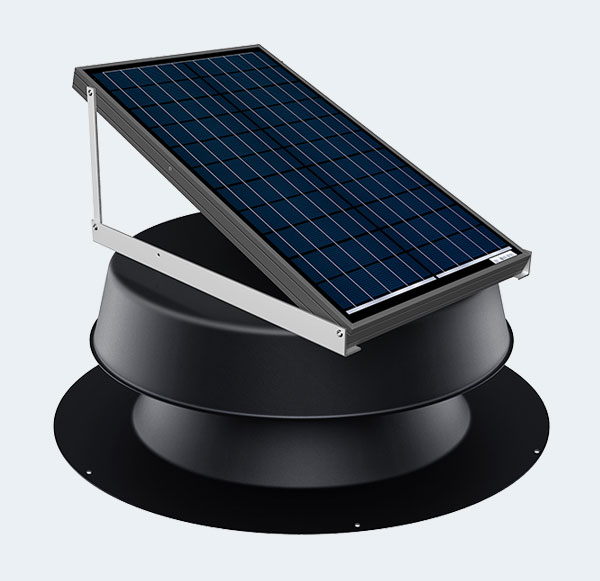

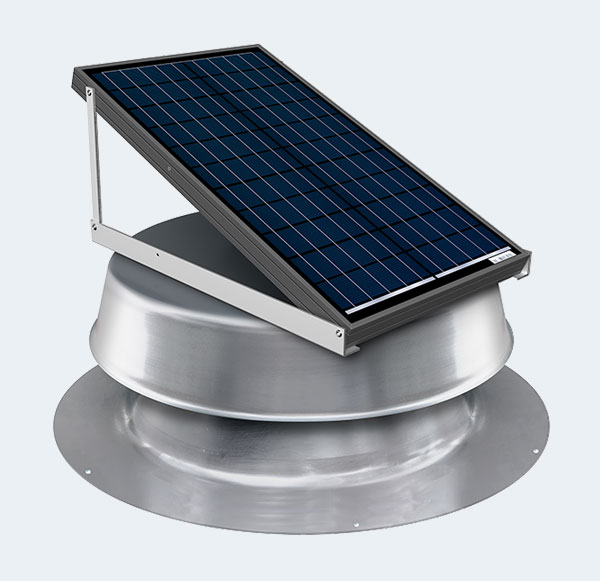

32 Watt
- Capacity: up to 1,560 cfms
- Venting Area: up to 2,200 sf
- Solar Panel Size: 14" x 22.625"
- Solar Panel Type: Adjustable
- Model #: SAF32
- Remote Panel: Available
- Colors: ⬤ ⬤ ⬤

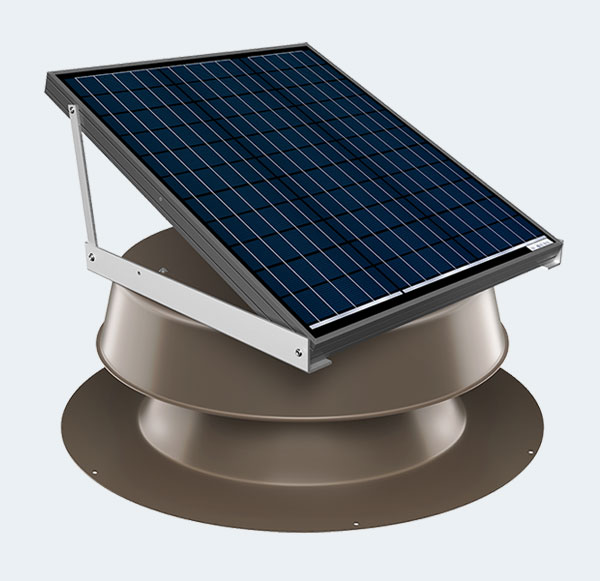

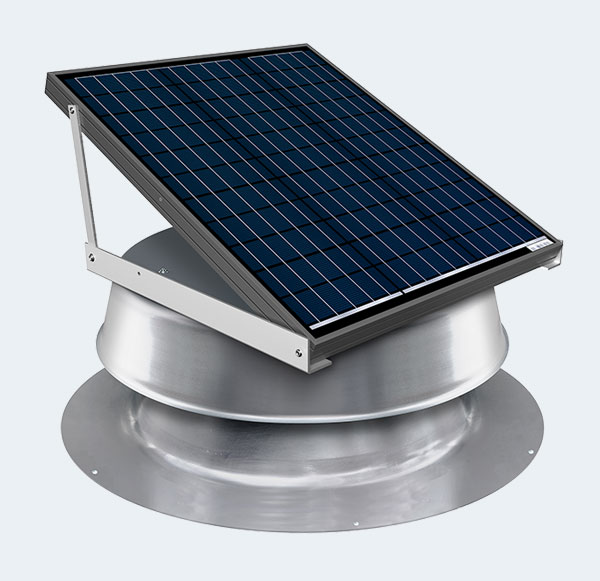

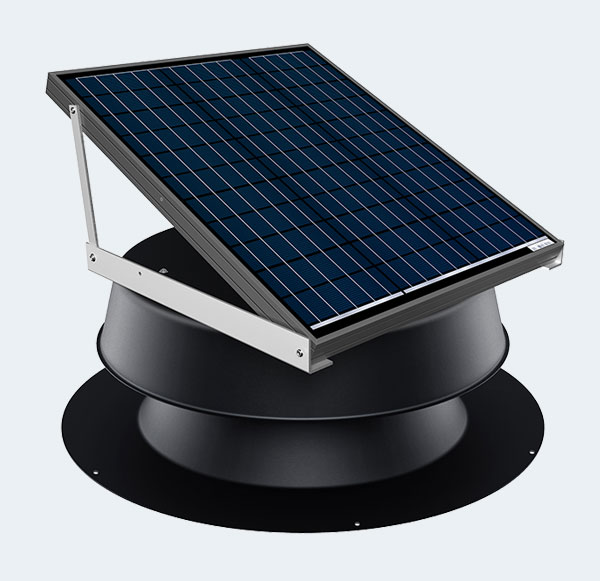

48 Watt
- Capacity: up to 1,881 cfms
- Venting Area: up to 2,825 sf
- Solar Panel Size: 20.125" x 21.25"
- Solar Panel Type: Adjustable
- Model #: SAF48
- Remote Panel: Available
- Colors: ⬤ ⬤ ⬤

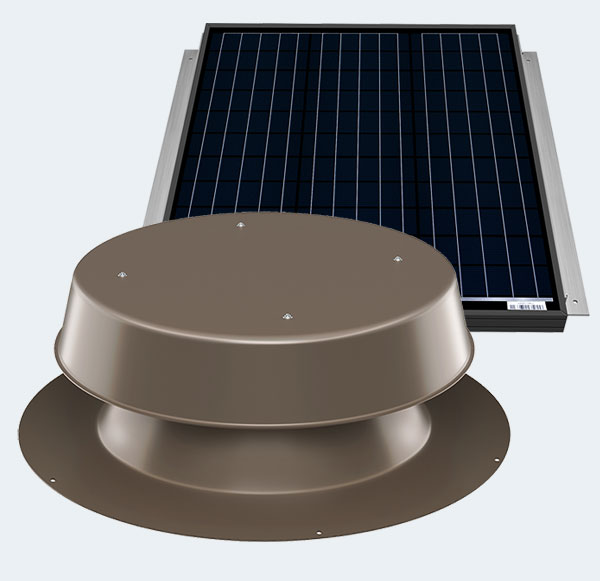

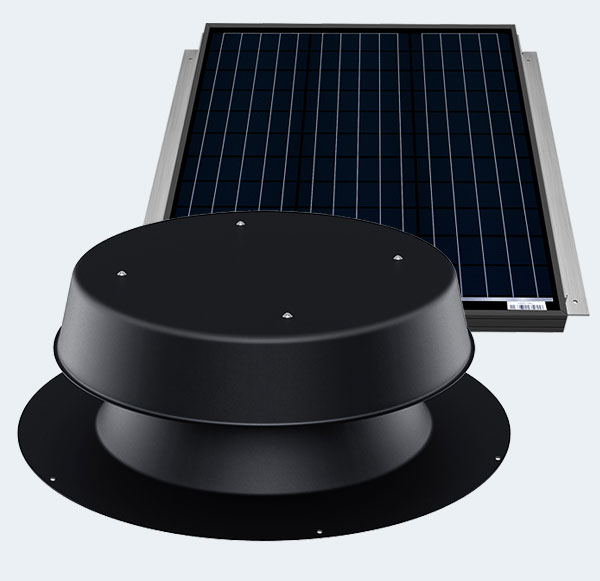

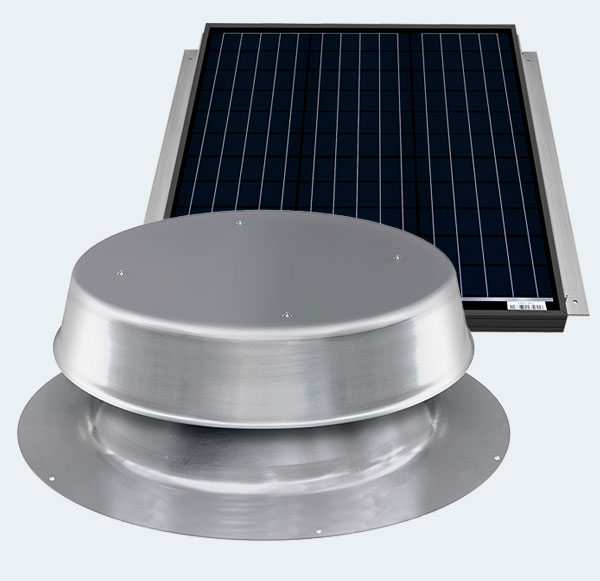

65 Watt
- Capacity: up to 2,105 cfms
- Venting Area: up to 3,350 sf
- Solar Panel Size: 26.5" x 25.75"
- Solar Panel Type: Remote
- Model #: SAF65-Remote
- Adjustable Panel: N/A
- Colors: ⬤ ⬤ ⬤
FIXED PANEL

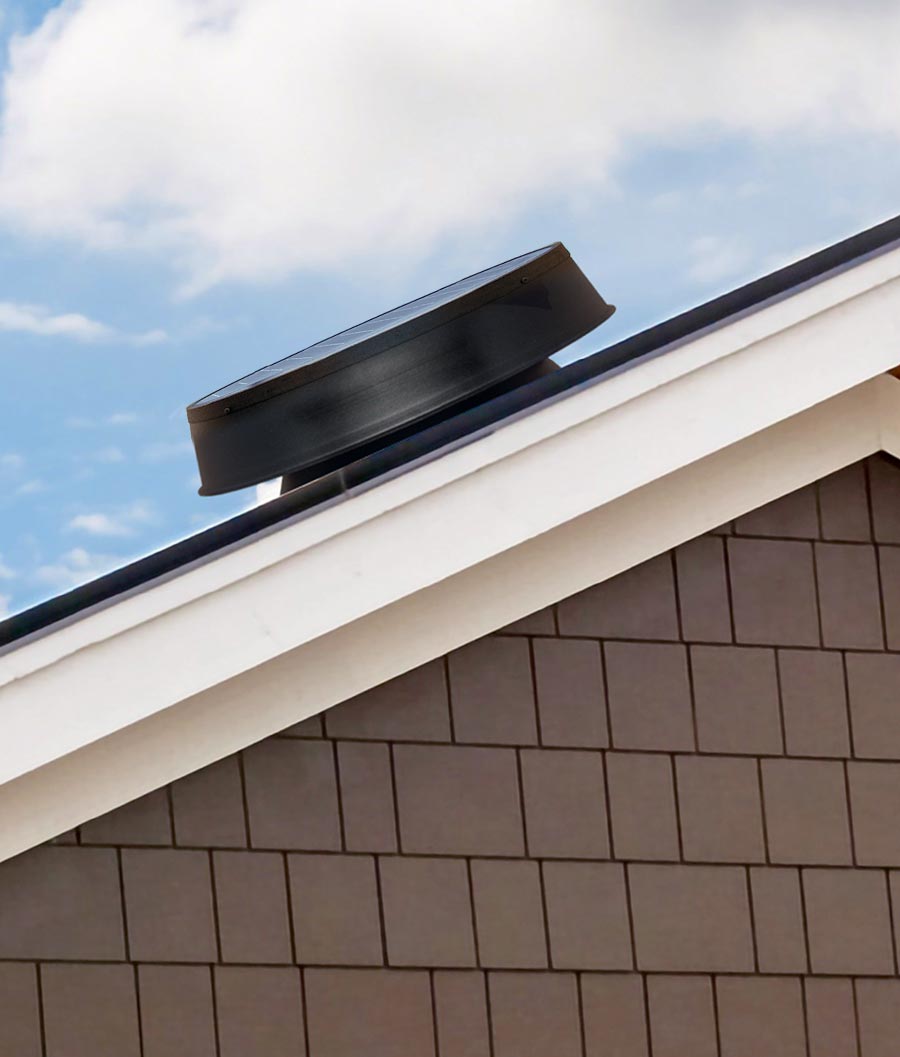

Low Profile Roof Mounted Fan
for Sloped and Flat Roofs
Key Features
- Installs on all roof types including shingle, wood shake, metal and tile
- Features a compact, roof-hugging design that is aesthetically pleasing
- Designed to withstand severe hurricane and tornadic winds without panel adjustment
- Available in 35 watt size with a venting capacity of 1,599 cfms (2,400 sf)
- Solar panel is built into the fan housing and can be can easily be removed for cleaning or maintenance
- Easy Installation - fully functional right out of the box
- Available in 3 colors: Powdercoated Gloss Bronze, Black Satin or Gray Satin
Manufactured with the Highest Quality Components
- Solar Panel - highly efficient featuring PERC Solar Cells
- Housing - constructed of 1100 series, seamless commercial pure grade aluminum
- Direct Current Motor - sits in an isolation bracket, quiet and long-lasting
- Fan - precision balanced 5-wing fan blade, non-corrosive aluminum
- Animal Screen - stainless steel keeps out debris, bugs, birds and small rodents
Tile Profile Model
- Housing sits 3 inches higher to accomodate thicker tile or slate roofing material
- Perfect for the popular S-style tile roofs
- Eliminates the need for a turret extension
Accessories
- Garage Exhaust Kit with optional Radiation Damper
- Thermal Snap Switch and Fire Safety Switch
- Tile Flashing Skirt for tile installations
Ultra Low and Tile Profile Models

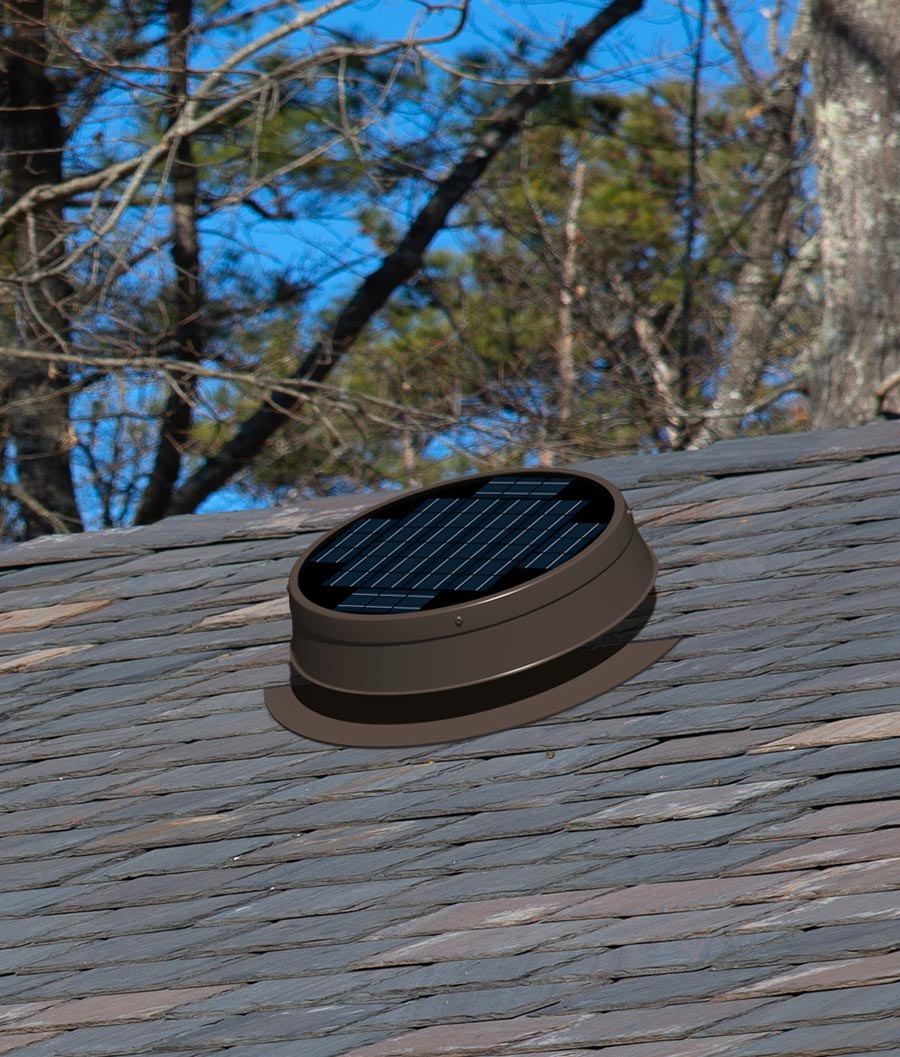

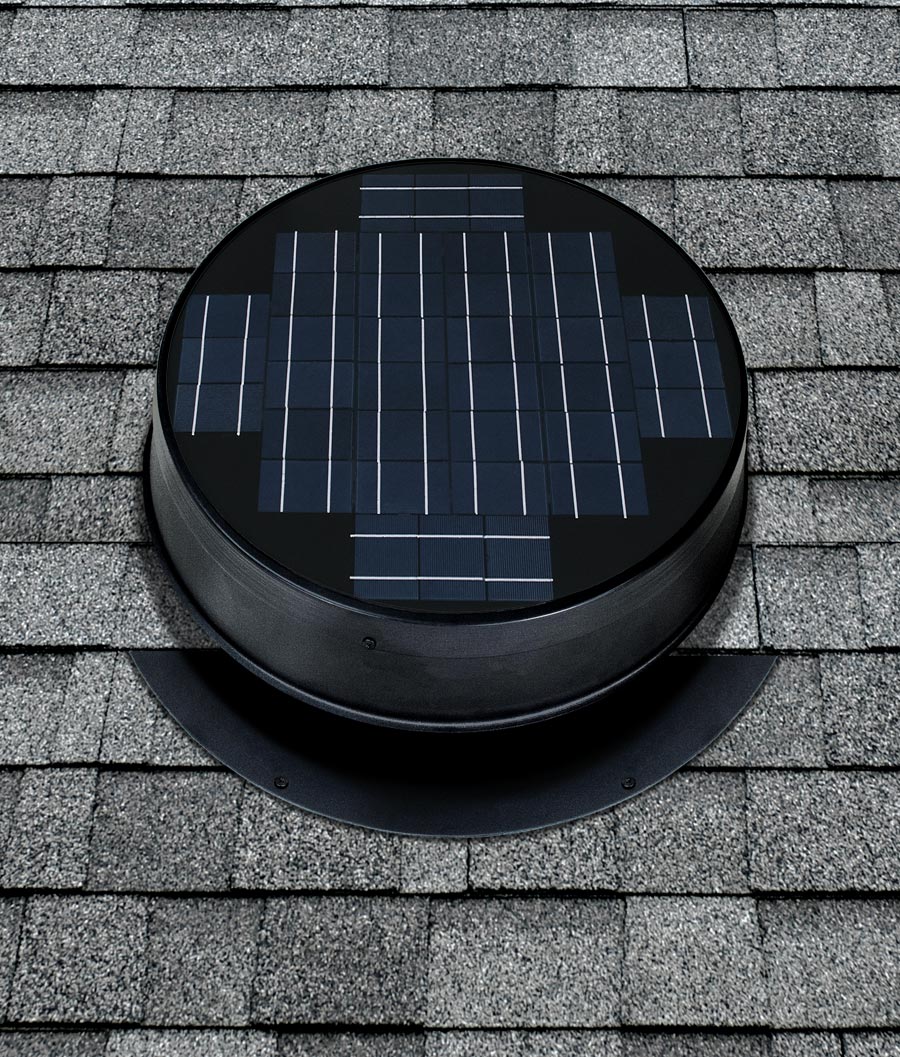

Our Ultra Low Profile Solar Attic Fan model is a compact, extrememly durable unit that has been hurricane tested and approved. It has a very low profile allowing it to blend seamlessly into the roofline.

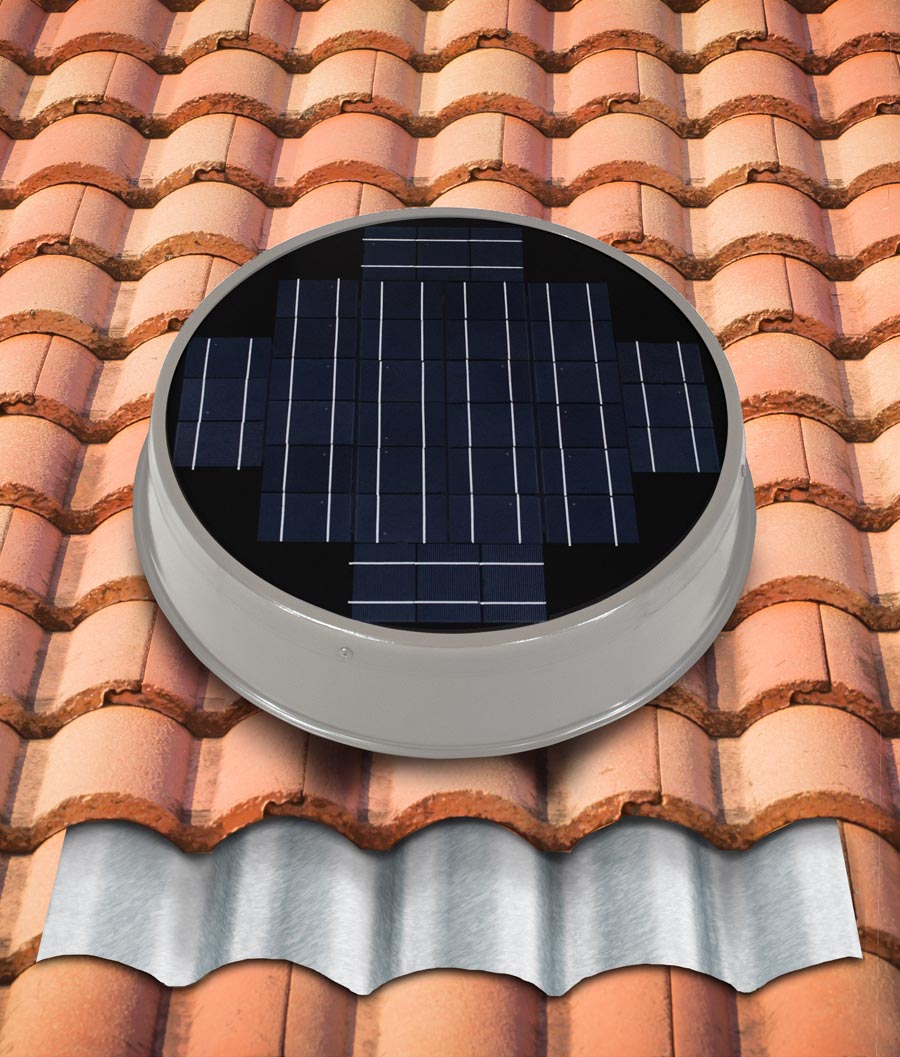

The housing on our Tile Profile model sits 3" higher to accomodate thicker tile or slate roofing material. It eliminates the need for a turret extension. The tile Profile model is the perfect solution for the popular S-style tile roofs.
FIXED PANEL MODEL ADVANTAGES
- Features a ultra compact, aesthetically pleasing design
- Roof-hugging unit stands up to hurricane and tornado wind velocities without panel adjustment
- Solar panel is integrated into the fan housing and can be easily removed for cleaning
- Underwent several high wind and water tests to earn a Hurricane Approved Rated
- Qualifies for a 30% Federal Tax Credit

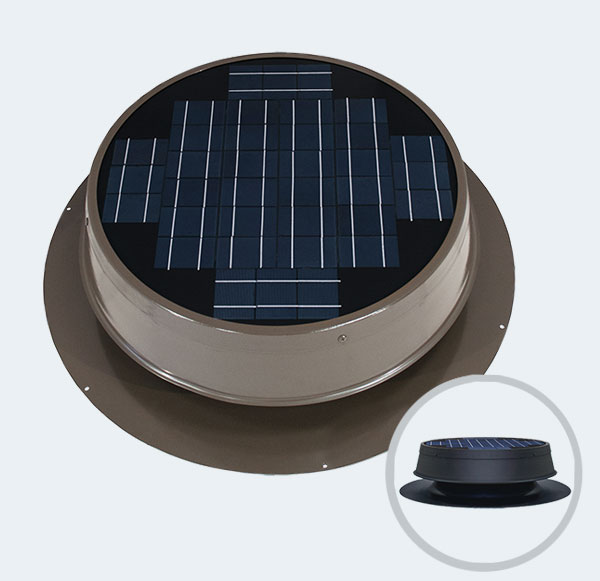

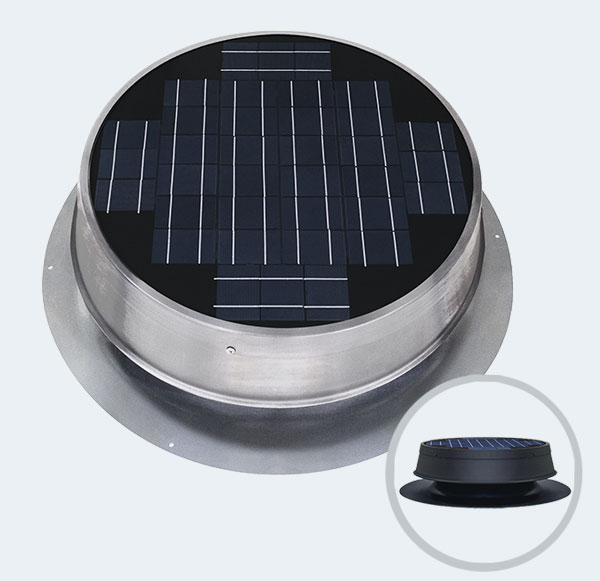

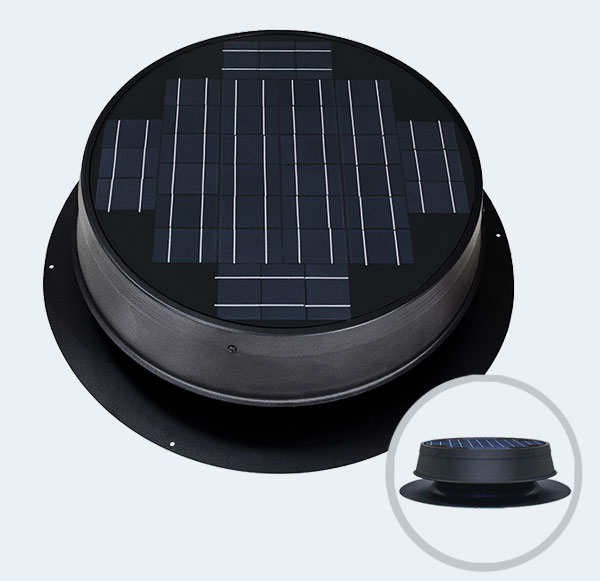

35 Watt Ultra Low-Profile
- Capacity: up to 1,599 cfms
- Venting Area: up to 2,400 sf
- Solar Panel Size: 20.5" Diameter
- Solar Panel Type: Fixed
- Model #: SAF35LP
- Colors: ⬤ ⬤ ⬤

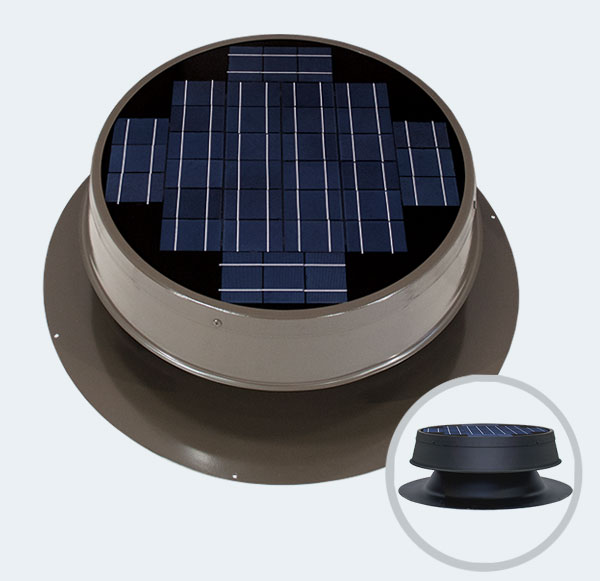

35 Watt Tile Profile
- Capacity: up to 1,599 cfms
- Venting Area: up to 2,400 sf
- Solar Panel Size: 20.5" Diameter
- Solar Panel Type: Fixed
- Model #: SAF35TP
- Colors: ⬤ ⬤ ⬤
